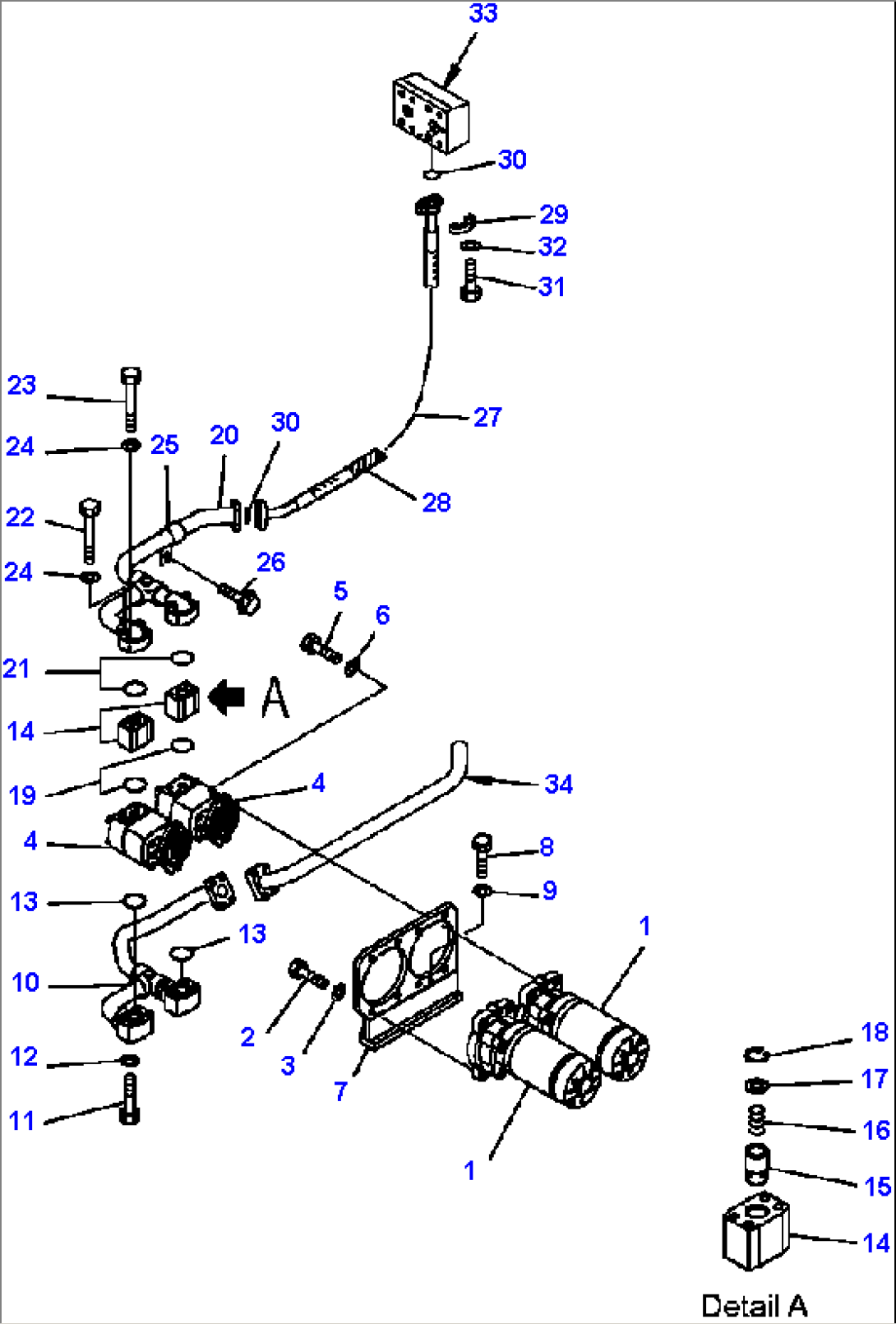

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-32700 | MOTOR | A10001-- | |
| 2 | 01010-81030 | BOLT | A10001-- | |
| 3 | 01643-31032 | WASHER | A10001-- | |
| 4 | PUMP SBL21 (SEE FIG. H0210-01D2) | A10001-- | ||
| 5 | 01010-81030 | BOLT | A10001-- | |
| 6 | 01643-31032 | WASHER | A10001-- | |
| 7 | 56B-61-11232 | BRACKET | A10001-- | |
| 8 | 01010-81240 | BOLT | A10001-- | |
| 9 | 01643-31232 | WASHER | A10001-- | |
| 10 | 56B-61-11272 | TUBE | A10001-- | |
| 11 | 07372-21060 | BOLT | A10001-- | |
| 12 | 01643-51032 | WASHER | A10001-- | |
| 13 | 07000-F3035 | O-RING | A10001-- | |
| 56B-60-11300 | VALVE | A10001-- | ||
| 14 | 56B-60-11310 | BLOCK | A10001-- | |
| 15 | 07750-02537 | VALVE | A10001-- | |
| 16 | 07750-02545 | SPRING | A10001-- | |
| 17 | 56B-60-11320 | PLATE | A10001-- | |
| 18 | 04065-02512 | RING, SNAP | A10001-- | |
| 19 | 07000-F3030 | O-RING | A10001-- | |
| 20 | 56B-61-11262 | TUBE | A10001-- | |
| 21 | 07000-F3030 | O-RING | A10001-- | |
| 22 | 419-09-11330 | BOLT | A10001-- | |
| 23 | 6132-11-6460 | BOLT | A10001-- | |
| 24 | 01643-50823 | WASHER | A10001-- | |
| 25 | 04434-52711 | CLIP | A10001-- | |
| 26 | 01435-01016 | BOLT | A10001-- | |
| 27 | 07087-00608 | HOSE | A10001-- | |
| 28 | 08210-02901 | SPIRAL TUBE | A10001-- | |
| 29 | 07371-30638 | FLANGE, SPLIT | A10001-- | |
| 30 | 07000-F3025 | O-RING | A10001-- | |
| 31 | 01010-80830 | BOLT | A10001-- | |
| 32 | 01643-50823 | WASHER | A10001-- | |
| 33 | BLOCK (SEE FIG. H3410-04A0) | A10001-- | ||
| 34 | TUBE (SEE FIG. H3410-02A0) | A10001-- |
