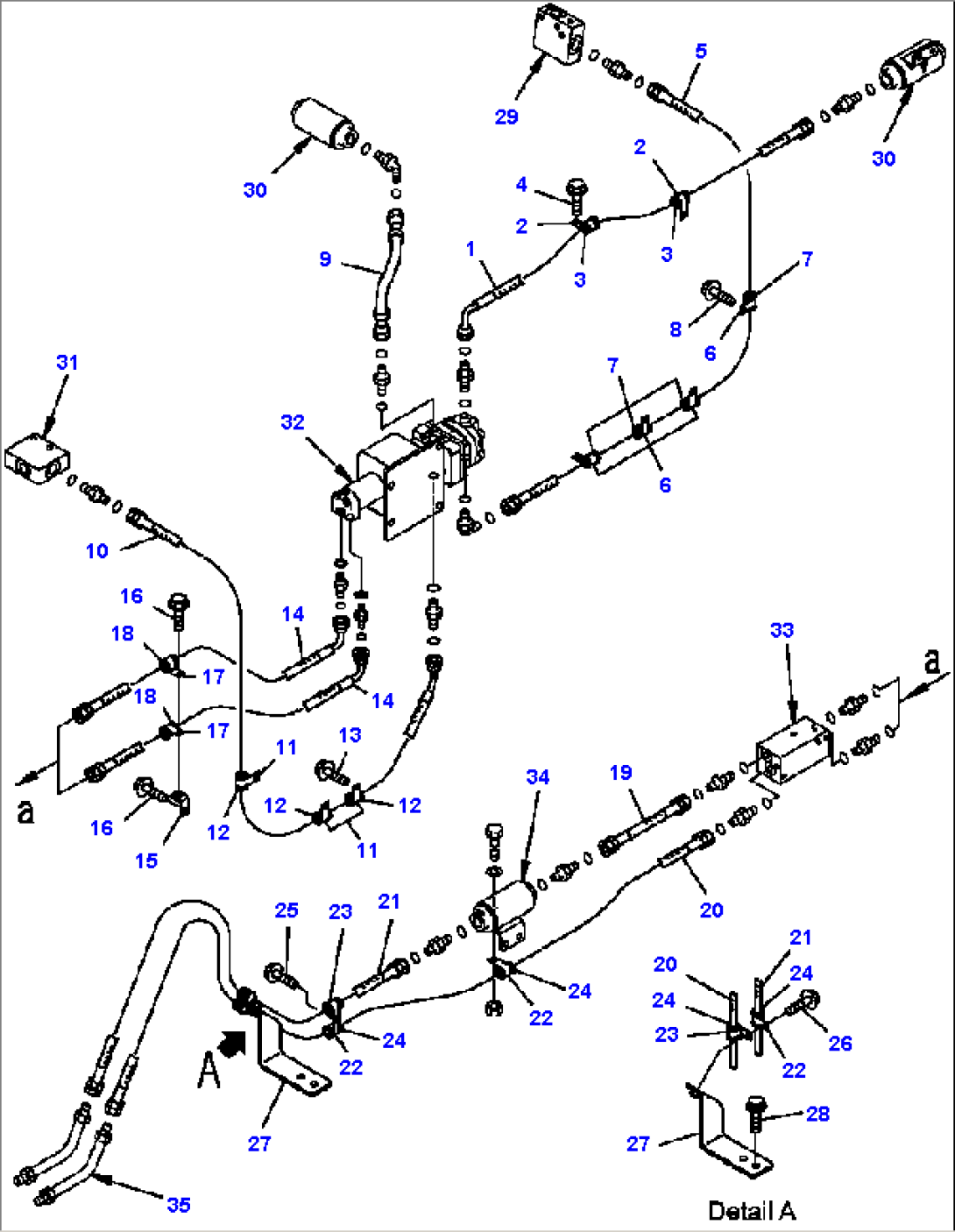

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 02763-00510 | HOSE | A10001-- | |
| 2 | 04434-53210 | CLIP | A10001-- | |
| 3 | 07095-20522 | CUSHION | A10001-- | |
| 4 | 01435-01016 | BOLT | A10001-- | |
| 5 | 02762-00315 | HOSE | A10001-- | |
| 6 | 04434-52110 | CLIP | A10001-- | |
| 7 | 07095-20314 | CUSHION | A10001-- | |
| 8 | 01435-01016 | BOLT | A10001-- | |
| 9 | 02763-005A4 | HOSE | A10001-- | |
| 10 | 02763-00312 | HOSE | A10001-- | |
| 11 | 04434-52110 | CLIP | A10001-- | |
| 12 | 07095-20314 | CUSHION | A10001-- | |
| 13 | 01435-01016 | BOLT | A10001-- | |
| 14 | 02766-003A8 | HOSE | A10001-- | |
| 15 | 209-62-15930 | BRACKET | A10001-- | |
| 16 | 01435-01016 | BOLT | A10001-- | |
| 17 | 04434-52711 | CLIP | A10001-- | |
| 18 | 07095-20418 | CUSHION | A10001-- | |
| 19 | 02765-00403 | HOSE | A10001-- | |
| 20 | 02765-B0436 | HOSE | A10001-- | |
| 21 | 02765-B0430 | HOSE | A10001-- | |
| 22 | 04434-52711 | CLIP | A10001-- | |
| 23 | 04434-52712 | CLIP | A10001-- | |
| 24 | 07095-20420 | CUSHION | A10001-- | |
| 25 | 01435-01020 | BOLT | A10001-- | |
| 26 | 01435-01030 | BOLT | A10001-- | |
| 27 | 56C-88-12140 | BRACKET | A10001-- | |
| 28 | 01435-01230 | BOLT | A10001-- | |
| 29 | BLOCK (SEE FIG. H3511-15B0) | A10001-- | ||
| 30 | FILTER (SEE FIG. H3511-11A0) | A10001-- | ||
| 31 | BLOCK (SEE FIG. F3456-02A0) | A10001-- | ||
| 32 | PUMP (SEE FIG. H3511-12A0) | A10001-- | ||
| 33 | BLOCK (SEE FIG. H3511-14A0) | A10001-- | ||
| 34 | STRAINER (SEE FIG. H3511-11A0) | A10001-- | ||
| 35 | TUBE (SEE FIG. H3511-09B0) | A10001-- |
