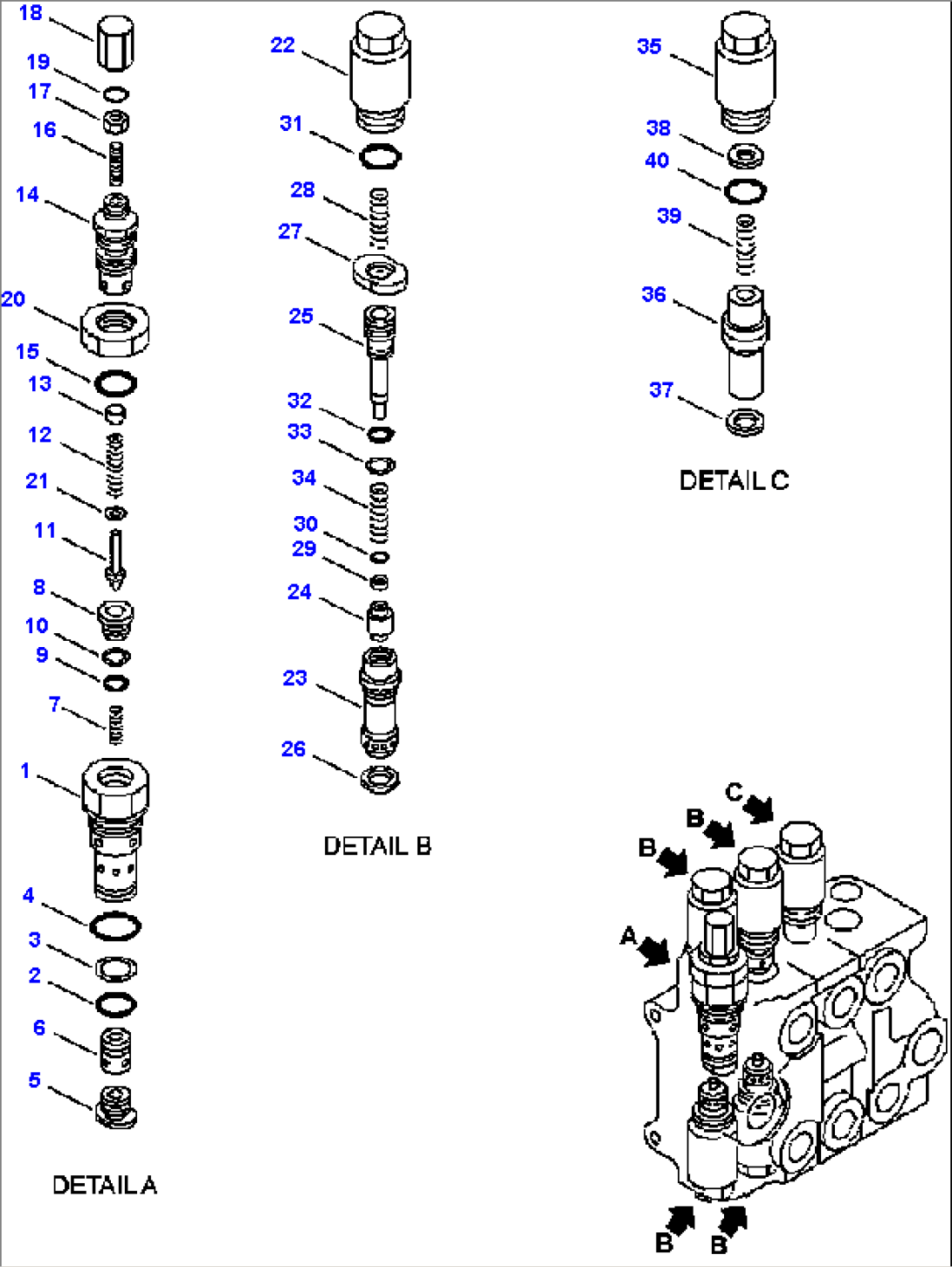

| Item | Part No. | Part Name | Qty | Serial No. |
| 700-83-82002 | CONTROL VALVE ASSEMBLY | A80001-UP- | ||
| 700-89-57000 | VALVE ASSEMBLY, RELIEF | A80001-UP- | ||
| 1 | (NSS) | SLEEVE | A80001-UP- | |
| 2 | 700-13-31161 | O-RING | A80001-UP- | |
| 3 | 700-80-51190 | RING, BACK-UP | A80001-UP- | |
| 4 | 07002-13334 | O-RING | A80001-UP- | |
| 5 | (NSS) | PLUG | A80001-UP- | |
| 6 | (NSS) | VALVE | A80001-UP- | |
| 7 | (NSS) | SPRING | A80001-UP- | |
| 8 | (NSS) | SEAT, VALVE | A80001-UP- | |
| 9 | (NSS) | O-RING | A80001-UP- | |
| 10 | (NSS) | RING, BACK-UP | A80001-UP- | |
| 11 | (NSS) | POPPET | A80001-UP- | |
| 12 | (NSS) | SPRING | A80001-UP- | |
| 13 | (NSS) | RETAINER | A80001-UP- | |
| 14 | (NSS) | HOLDER | A80001-UP- | |
| 15 | (NSS) | O-RING | A80001-UP- | |
| 16 | (NSS) | SCREW | A80001-UP- | |
| 17 | (NSS) | NUT | A80001-UP- | |
| 18 | (NSS) | COVER | A80001-UP- | |
| 19 | (NSS) | O-RING | A80001-UP- | |
| 20 | (NSS) | NUT | A80001-UP- | |
| 21 | (NSS) | SPACER | A80001-UP- | |
| 700-82-62001 | VALVE ASSEMBLY, SUCTION AND SAFETY | A80001-UP- | ||
| 22 | (NSS) | SLEEVE | A80001-UP- | |
| 23 | (NSS) | VALVE | A80001-UP- | |
| 24 | (NSS) | POPPET | A80001-UP- | |
| 25 | (NSS) | PISTON | A80001-UP- | |
| 26 | (NSS) | SEAL | A80001-UP- | |
| 27 | (NSS) | NUT | A80001-UP- | |
| 28 | (NSS) | SPRING | A80001-UP- | |
| 29 | (NSS) | SEAL | A80001-UP- | |
| 30 | (NSS) | O-RING | A80001-UP- | |
| 31 | 07002-13034 | O-RING | A80001-UP- | |
| 32 | (NSS) | O-RING | A80001-UP- | |
| 33 | (NSS) | RING, BACK-UP | A80001-UP- | |
| 34 | (NSS) | SPRING | A80001-UP- | |
| 700-81-84000 | VALVE ASSEMBLY, SUCTION | A80001-UP- | ||
| 35 | (NSS) | SLEEVE | A80001-UP- | |
| 36 | (NSS) | VALVE | A80001-UP- | |
| 37 | (NSS) | SEAL | A80001-UP- | |
| 38 | (NSS) | SPACER | A80001-UP- | |
| 39 | (NSS) | SPRING | A80001-UP- | |
| 40 | 07002-13034 | O-RING | A80001-UP- | |
| F1 - THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIG. H4200-01A5AND FIG. H4200-01A6. | ||||
