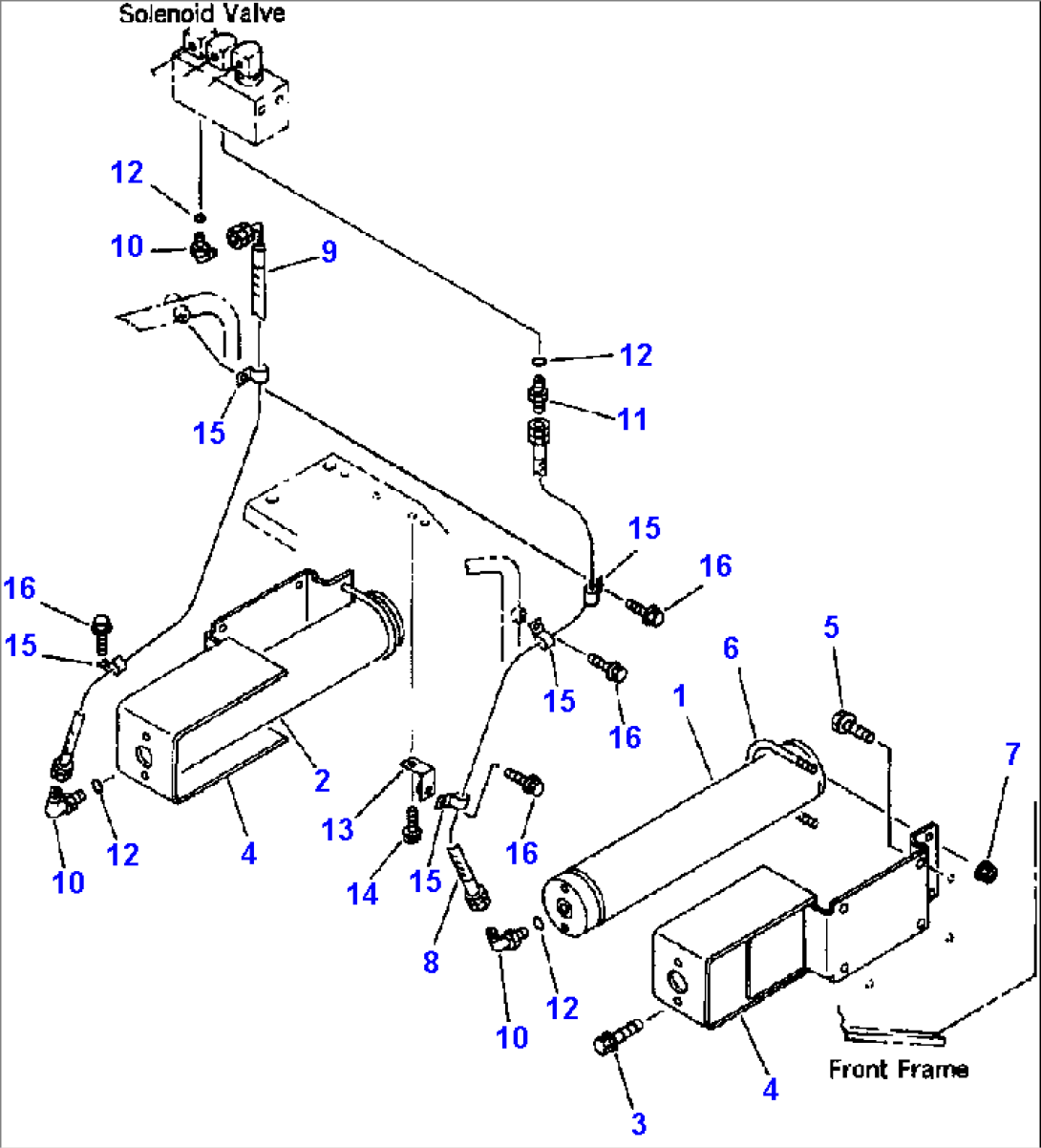

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | ACCUMULATOR ASSEMBLY, HIGH-PRESSURE(SEE FIG. H4200-27A0) | A30001-UP- | ||
| 2 | ACCUMULATOR ASSEMBLY, LOW-PRESSURE(SEE FIG. H4200-27A0) | A30001-UP- | ||
| 3 | 01435-01225 | BOLT | A30001-UP- | |
| 4 | 423-S99-2120 | BRACKET | A30001-UP- | |
| 5 | 01435-01220 | BOLT | A30001-UP- | |
| 6 | 417-S99-2240 | CLIP | A30001-UP- | |
| 7 | 01594-01008 | NUT | A30001-UP- | |
| 8 | 07123-00513 | HOSE | A30001-UP- | |
| 9 | 424-S99-2210 | HOSE | A30001-UP- | |
| 10 | 07235-10522 | ELBOW | A30001-UP- | |
| 11 | 07230-20522 | UNION | A30001-UP- | |
| 12 | 07002-12434 | O-RING | A30001-UP- | |
| 13 | 427-43-11370 | BRACKET | A30001-UP- | |
| 14 | 01435-01016 | BOLT | A30001-UP- | |
| 15 | 08036-22514 | CLIP | A30001-UP- | |
| 16 | 01435-01016 | BOLT | A30001-UP- |
