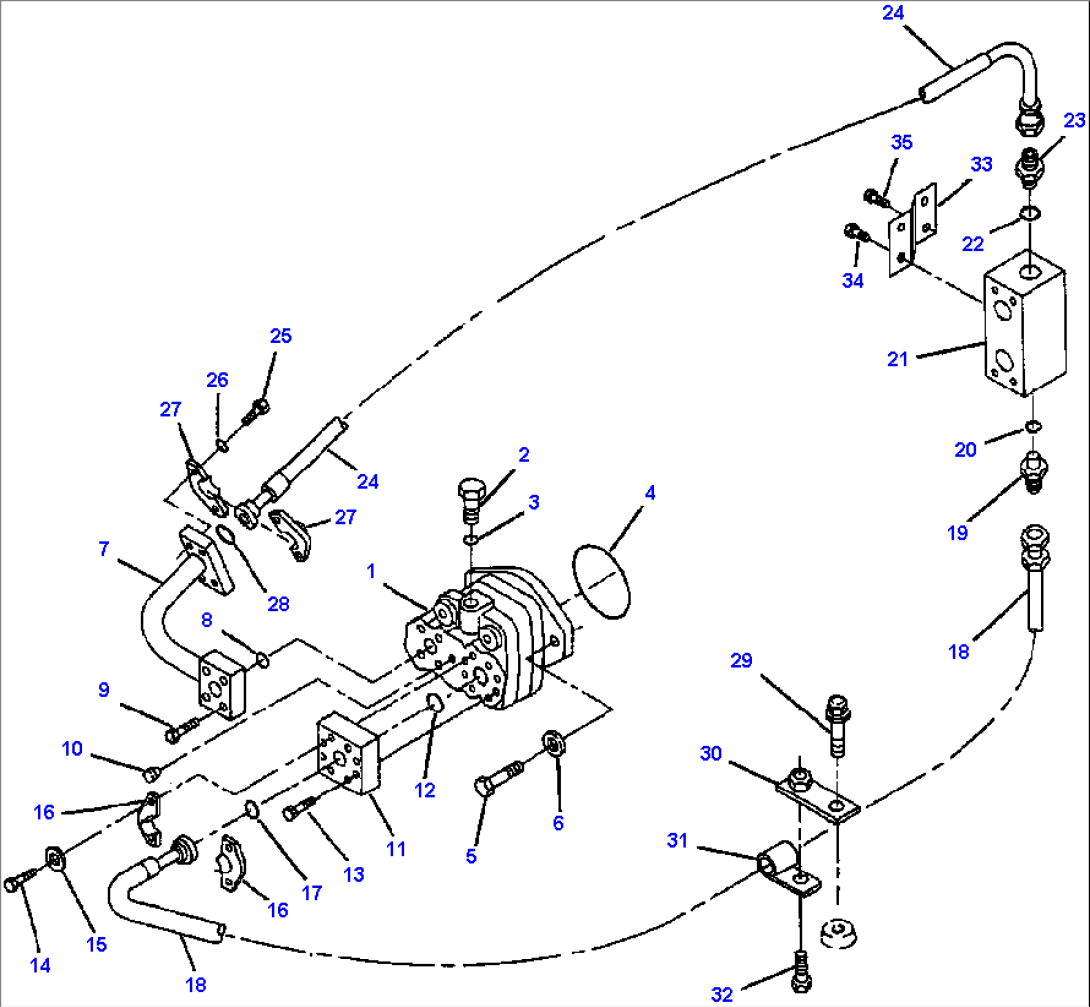

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | PUMP ASSEMBLY, SUPPLY(SEE FIG. H4420-01A0) | A81001-UP- | ||
| 2 | 07040-12012 | PLUG | A81001-UP- | |
| 3 | 07002-12034 | O-RING | A81001-UP- | |
| 4 | 07000-12105 | O-RING | A81001-UP- | |
| 5 | 01010-81235 | BOLT | A81001-UP- | |
| 6 | 01643-31232 | WASHER | A81001-UP- | |
| 7 | 417-875-2490 | TUBE | A81001-UP- | |
| 8 | 07000-13040 | O-RING | A81001-UP- | |
| 9 | 01435-01065 | BOLT | A81001-UP- | |
| 10 | 07043-70108 | PLUG | A81001-UP- | |
| 11 | 417-875-2510 | SPACER | A81001-UP- | |
| 12 | 07000-13040 | O-RING | A81001-UP- | |
| 13 | 01252-31035 | BOLT | A81001-UP- | |
| 14 | 07372-21035 | BOLT | A81001-UP- | |
| 15 | 01643-51032 | WASHER | A81001-UP- | |
| 16 | 07371-31049 | FLANGE | A81001-UP- | |
| 17 | 07000-13032 | O-RING | A81001-UP- | |
| 18 | 417-875-2480 | HOSE | A81001-UP- | |
| 19 | 07230-20628 | NIPPLE | A81001-UP- | |
| 20 | 07002-12434 | O-RING | A81001-UP- | |
| 21 | 417-875-2450 | BLOCK | A81001-UP- | |
| 22 | 07002-12434 | O-RING | A81001-UP- | |
| 23 | 07230-20628 | NIPPLE | A81001-UP- | |
| 24 | 417-875-2470 | HOSE | A81001-UP- | |
| 25 | 07372-21035 | BOLT | A81001-UP- | |
| 26 | 01643-51032 | WASHER | A81001-UP- | |
| 27 | 07371-31049 | FLANGE | A81001-UP- | |
| 28 | 07000-13032 | O-RING | A81001-UP- | |
| 29 | 01435-01020 | BOLT | A81001-UP- | |
| 30 | 417-875-2520 | PLATE | A81001-UP- | |
| 31 | 23T-62-12160 | CLIP | A81001-UP- | |
| 32 | 01435-01016 | BOLT | A81001-UP- | |
| 33 | 417-875-2460 | BRACKET | A81001-UP- | |
| 34 | 01435-01020 | BOLT | A81001-UP- | |
| 35 | 01435-01230 | BOLT | A81001-UP- |
