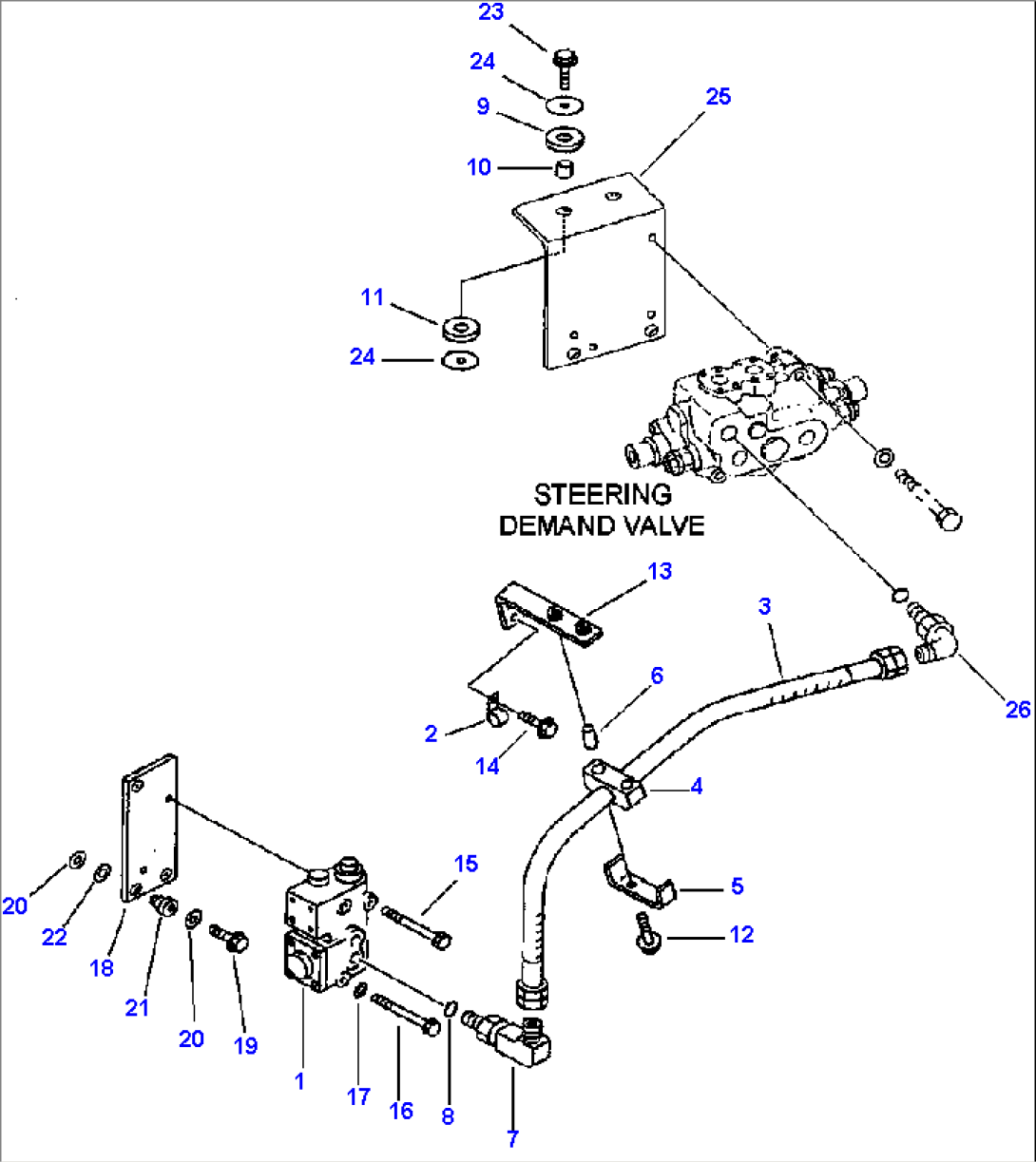

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | VALVE ASSEMBLY, CUT-OFF(SEE FIG. Y1679-01A0) | A31001-UP- | ||
| 2 | 04434-51010 | CLIP | A31001-UP- | |
| N/I | 08036-01814 | CLIP | A31001-UP- | |
| 3 | 07123-00607 | HOSE | A31001-UP- | |
| 4 | 421-62-18510 | CLAMP | A31001-UP- | |
| 5 | 421-62-18490 | PLATE | A31001-UP- | |
| 6 | 421-62-18480 | SPACER | A31001-UP- | |
| 7 | 421-62-23490 | ELBOW | A31001-UP- | |
| 8 | 07002-12434 | O-RING | A31001-UP- | |
| 9 | 418-54-13151 | CUSHION | A31001-UP- | |
| 10 | 428-64-15110 | COLLAR | A31001-UP- | |
| 11 | 421-64-25130 | CUSHION | A31001-UP- | |
| 12 | 01435-01060 | BOLT | A31001-UP- | |
| 13 | 421-62-23390 | BRACKET | A31001-UP- | |
| 14 | 01435-01020 | BOLT | A31001-UP- | |
| 15 | 01010-81090 | BOLT | A31001-UP- | |
| 16 | 01011-81005 | BOLT | A31001-UP- | |
| 17 | 01643-51032 | WASHER | A31001-UP- | |
| 18 | 421-64-24110 | BRACKET | A31001-UP- | |
| 19 | 01435-01035 | BOLT | A31001-UP- | |
| 20 | 175-54-34170 | WASHER | A31001-UP- | |
| 21 | 421-62-23350 | CUSHION | A31001-UP- | |
| 22 | 421-62-23710 | CUSHION | A31001-UP- | |
| 23 | 01435-01250 | BOLT | A31001-UP- | |
| 24 | 416-54-13110 | WASHER | A31001-UP- | |
| 25 | BRACKET (SEE FIG. H0122-01A0) | A31001-UP- | ||
| 26 | ELBOW (SEE FIG. H0122-03A0) | A31001-UP- |
