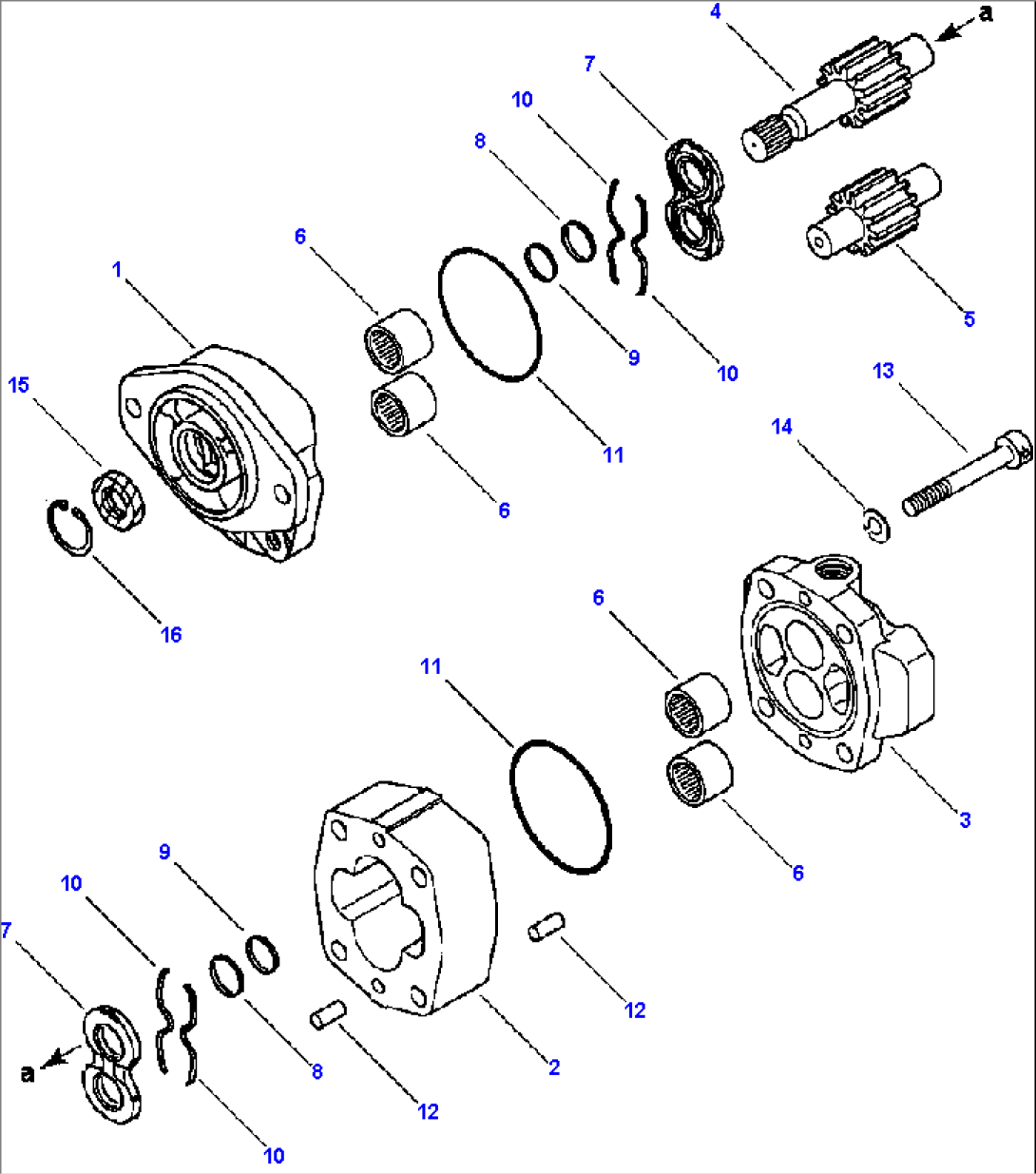

| Item | Part No. | Part Name | Qty | Serial No. |
| 704-30-29110 | PUMP ASSEMBLY | A70001-UP- | ||
| 1 | 704-37-02030 | BRACKET | A70001-UP- | |
| 2 | 704-37-29010 | CASE, GEAR | A70001-UP- | |
| 3 | 704-37-02180 | COVER | A70001-UP- | |
| 4 | 705-17-29411 | GEAR, DRIVE | A70001-UP- | |
| 5 | 705-17-29512 | GEAR, DRIVEN | A70001-UP- | |
| 6 | 704-37-02350 | BEARING, NEEDLE | A70001-UP- | |
| 7 | 704-37-02610 | PLATE, SIDE | A70001-UP- | |
| 8 | 704-37-02440 | RING, BACK-UP | A70001-UP- | |
| 9 | 704-37-02470 | RING, SEAL | A70001-UP- | |
| 10 | 704-37-02450 | RING, BACK-UP | A70001-UP- | |
| 11 | 07000-12100 | O-RING | A70001-UP- | |
| 12 | 04020-01024 | PIN, DOWEL | A70001-UP- | |
| 13 | 01252-31485 | BOLT | A70001-UP- | |
| 14 | 705-17-04980 | WASHER, SPRING | A70001-UP- | |
| 15 | 705-17-02830 | SEAL, OIL | A70001-UP- | |
| 16 | 04065-04018 | RING, SNAP | A70001-UP- | |
| F1 - PARTS SUPPLIED SEPARATELY ONLY TO DESIGNATED DEALERS EQUIPPED WITH A HYDRAULIC PUMP TESTER. | ||||
