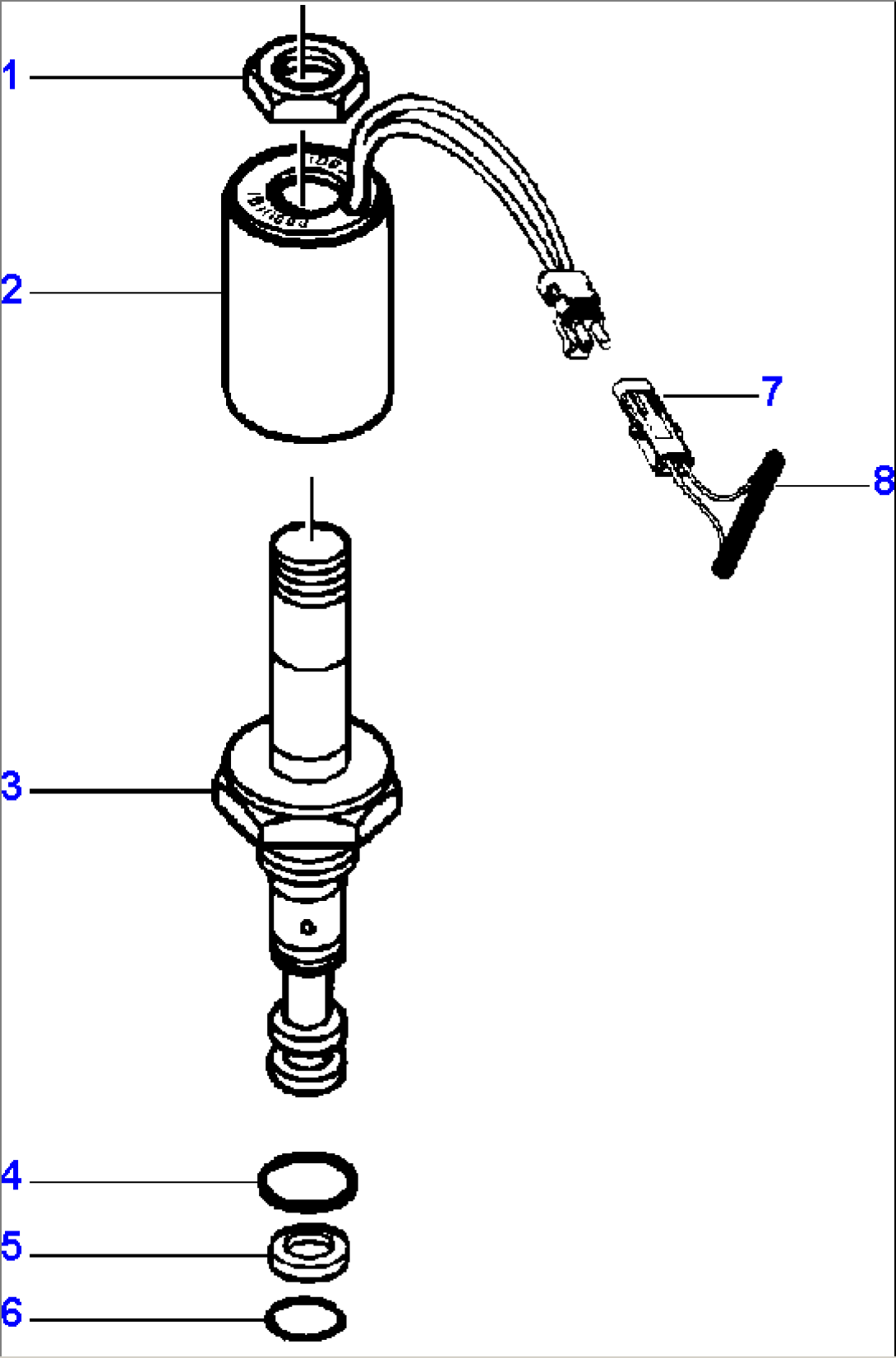

| Item | Part No. | Part Name | Qty | Serial No. |
| 1438 121 H91 | CARTRIDGE, SOLENOID VALVE | |||
| 1 | 1439 611 H1 | NUT, HEX - THIN | ||
| 2 | 1438 240 H91 | KIT, COIL - 32 VOLT | ||
| 3 | 1221 280 H91 | CARTRIDGE, VALVE | ||
| 1220 165 H91 | KIT, SEAL | |||
| 4 | 876 106 C1 | O-RING | ||
| 5 | 148 349 | RING, BACKUP | ||
| 6 | 615 002 C1 | O-RING | ||
| 7 | 1209 473 H1 | SHROUD, FEMALE | ||
| 1209 465 H1 | PIN, MALE | |||
| 1209 467 H1 | SEAL, CABLE | |||
| 8 | WIRING HARNESS, FRONT AWD (SEE FIG. E5100-01A6) |
