| Item | Part No. | Part Name | Qty | Serial No. |

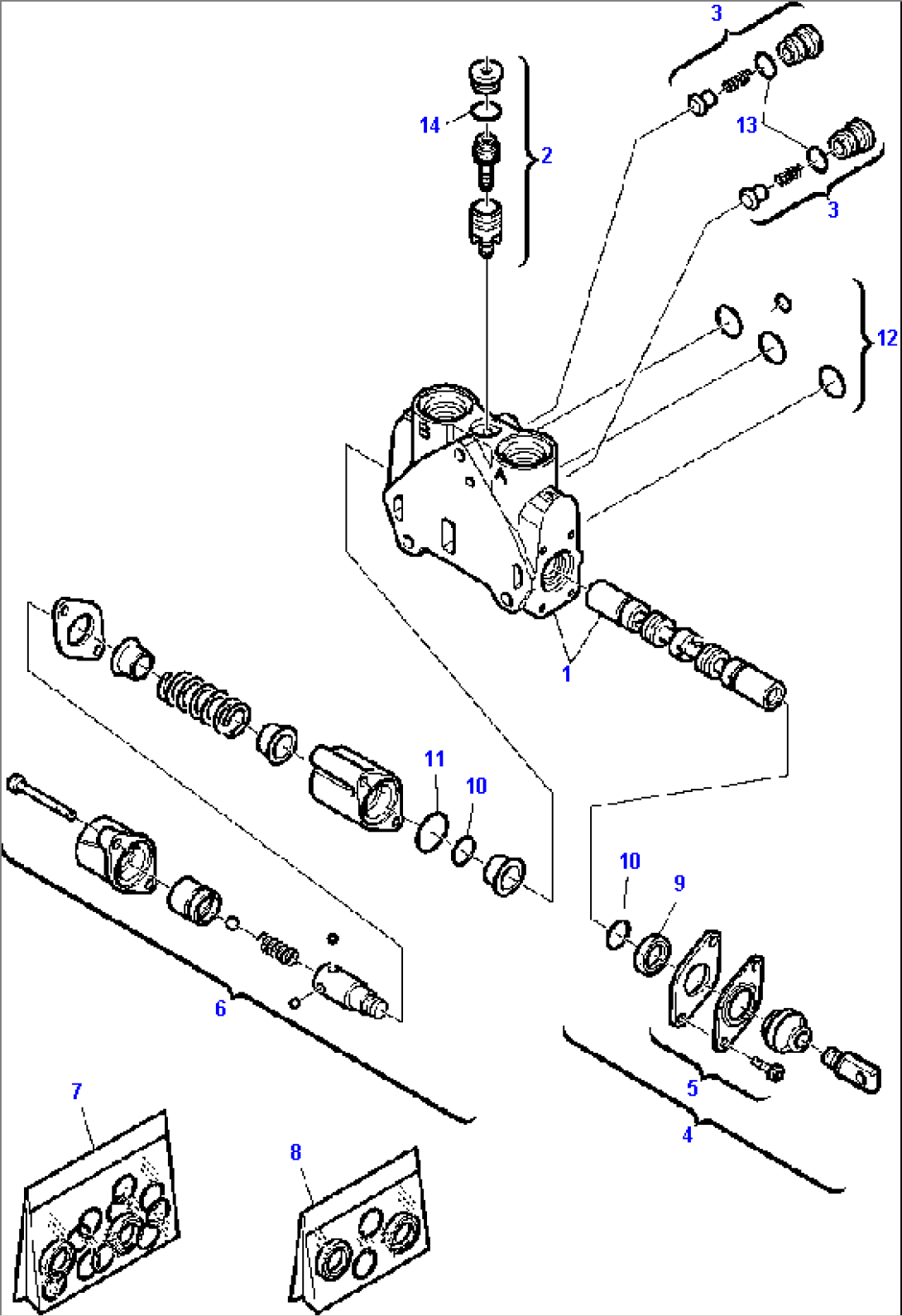

| SHOVEL CONTROL VALVE (SEE FIG. H6260-01A0 | A20001-- | |||
| SHOVEL LIFTING SECTION (SEE FIG. H6260-01A0 | A20001-- | |||
| 1 | (NSS) | HOUSING KIT | A20001-- | |
| 2 | 844200503 | COMPENSATOR KIT | A20001-- | |
| 3 | 844200416 | VALVE KIT | A20001-- | |
| 4 | 844200615 | OPERATION KIT | A20001-- | |
| 5 | 844200427 | BELLOWS KIT | A20001-- | |
| 6 | 844200417 | COVER KIT | A20001-- | |
| 7 | 844200504 | GASKET KIT | A20001-- | |
| 8 | 844200509 | GASKET KIT | A20001-- | |
| 9 | (NSS) | OIL SEAL | A20001-- | |
| 10 | (NSS) | O-RING | A20001-- | |
| 11 | (NSS) | O-RING | A20001-- | |
| 12 | 844200413 | GASKET KIT | A20001-- | |
| 13 | (NSS) | O-RING | A20001-- | |
| 14 | (NSS) | O-RING | A20001-- |
