| Item | Part No. | Part Name | Qty | Serial No. |

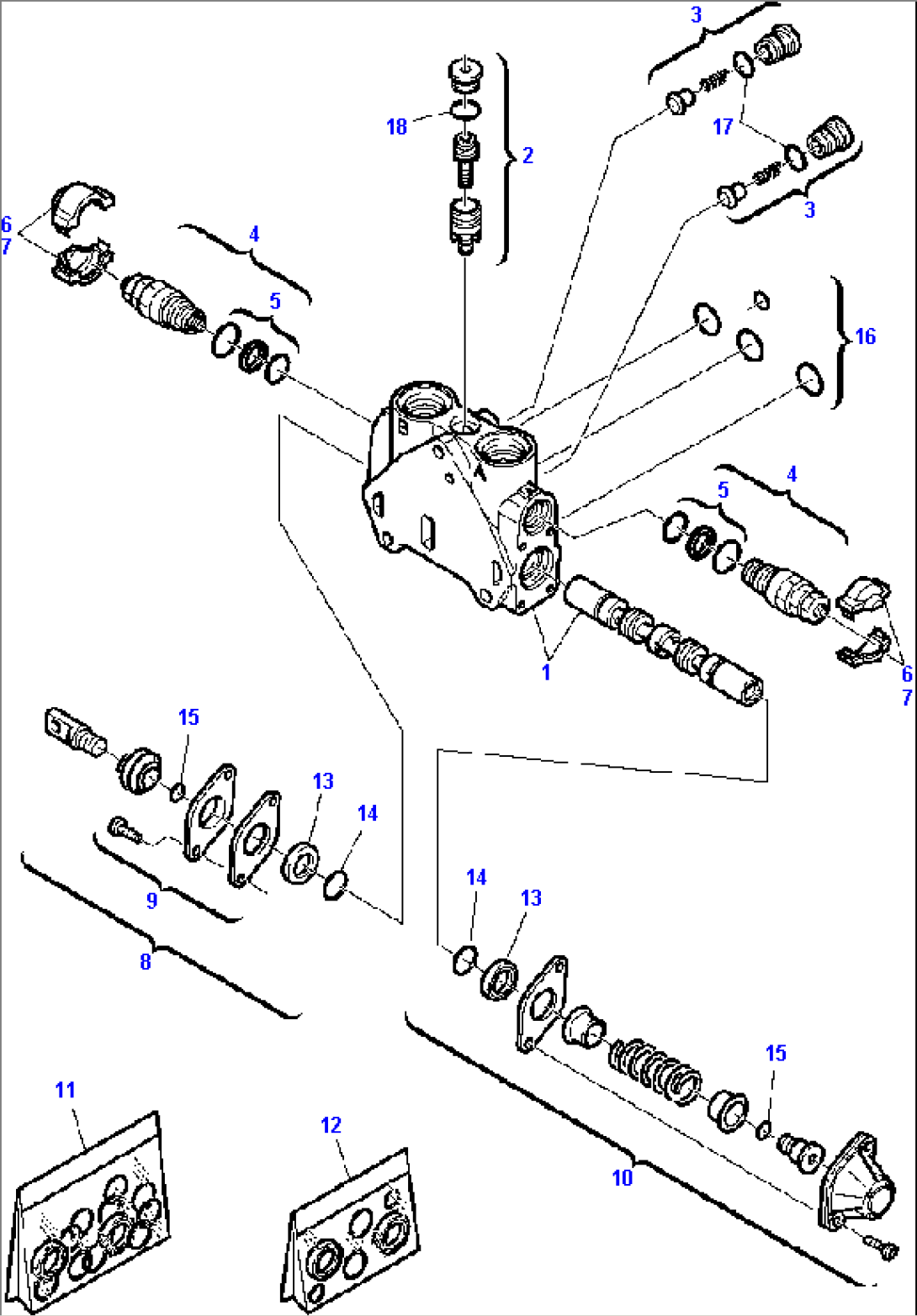

| CONTROL VALVE ASSY(SEE FIG. H6260-01A0) | A20001-- | |||
| BOOM SWING CONTROL SECTION (H6260-01A0) | A20001-- | |||
| 1 | (NSS) | HOUSING KIT | A20001-- | |
| 2 | 844200503 | GASKET KIT | A20001-- | |
| 3 | 844200416 | VALVE KIT | A20001-- | |
| 4 | 844200422 | SECONDARY VALVE | A20001-- | |
| 5 | 844200174 | GASKET KIT | A20001-- | |
| 6 | 844200423 | LOCKING COVER KIT (ORANGE) | A20001-- | |
| 7 | 844200424 | LOCKING COVER KIT (BLUE) | A20001-- | |
| 8 | 844200615 | OPERATING KIT | A20001-- | |
| 9 | 844200427 | BELLOWS KIT | A20001-- | |
| 10 | 844200425 | COVER KIT | A20001-- | |
| 11 | 844200524 | GASKET KIT | A20001-- | |
| 12 | 844200510 | GASKET KIT | A20001-- | |
| 13 | (NSS) | OIL SEAL | A20001-- | |
| 14 | (NSS) | O-RING | A20001-- | |
| 15 | (NSS) | O-RING | A20001-- | |
| 16 | 844200413 | GASKET KIT | A20001-- | |
| 17 | (NSS) | O-RING | A20001-- | |
| 18 | (NSS) | O-RING | A20001-- |
