| Item | Part No. | Part Name | Qty | Serial No. |

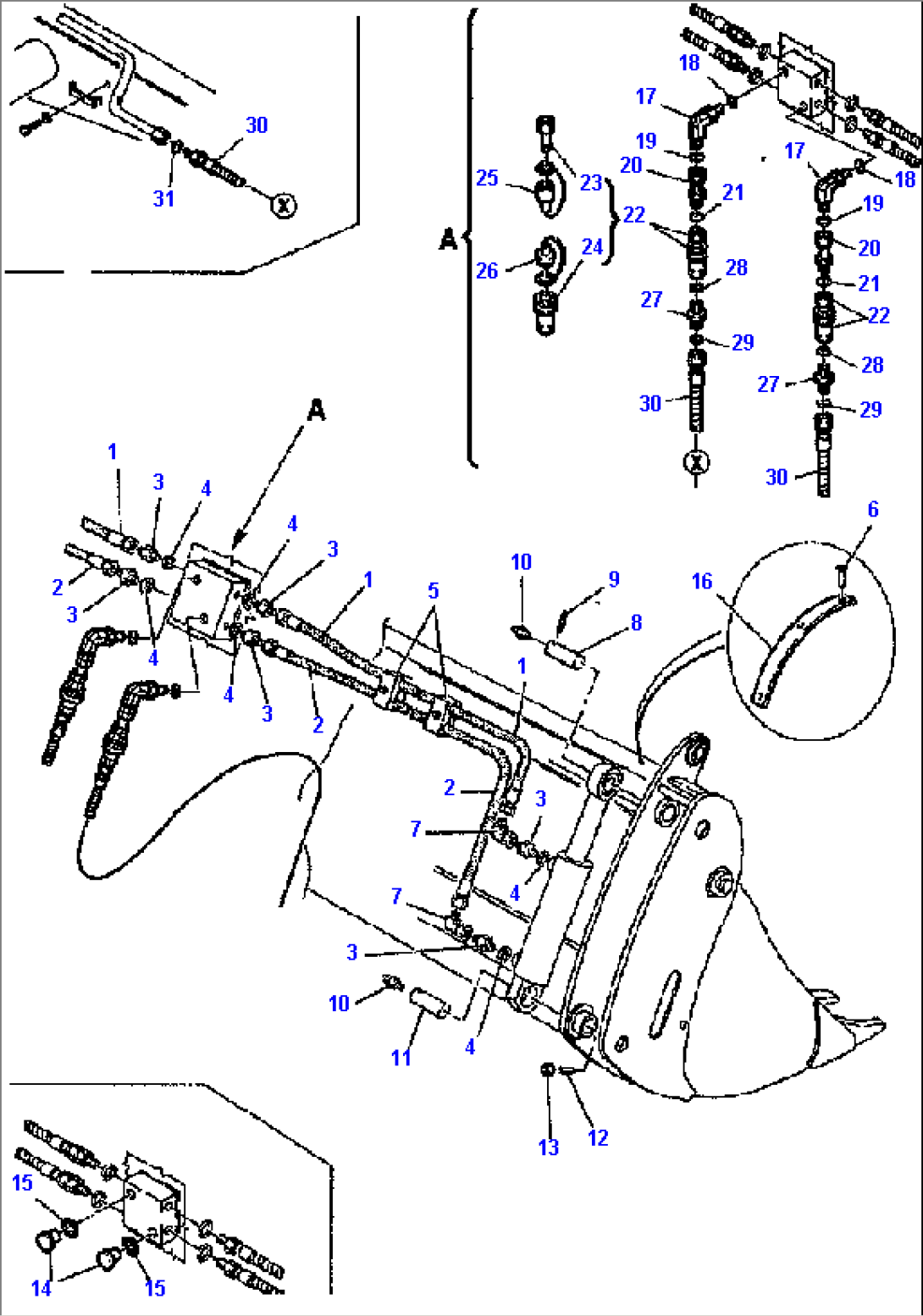

| BUCKET 4-IN-1 WITH FAST COUPLING (SEE FIG. T7030-01A0) | A90001 -- | |||
| 1 | 392051044 | HOSE | A90001 -- | |
| 2 | 392051045 | HOSE | A90001 -- | |
| 3 | 500359405 | UNION | A90001 -- | |
| 4 | 855150037 | GASKET | A90001 -- | |
| 5 | 827020139 | HOSE CLAMP | A90001 -- | |
| 6 | 801570027 | RIVET | A90001 -- | |
| 7 | 500352601 | ELBOW | A90001 -- | |
| 8 | 312230678 | PIN | A90001 -- | |
| 9 | 802510531 | PEG | A90001 -- | |
| 10 | 860010007 | FITTING | A90001 -- | |
| 11 | 312230679 | PIN | A90001 -- | |
| 12 | 801476155 | DOWELL | A90001 -- | |
| 13 | 801920107 | NUT | A90001 -- | |
| 14 | 500365504 | PLUG | A90001 -- | |
| 15 | 855150054 | O-RING | A90001 -- | |
| 16 | 312630720 | PLATE | A90001 -- | |
| 17 | 500380510 | ELBOW | A90001 -- | |
| 18 | 855051617 | O-RING | A90001 -- | |
| 19 | 855051016 | O-RING | A90001 -- | |
| 20 | 312731604 | UNION | A90001 -- | |
| 21 | 855051617 | O-RING | A90001 -- | |
| 22 | 200362251 | FAST COUPLING LINE ASSEMBLY | A90001 -- | |
| 23 | 200362252 | MALE COUPLING | A90001 -- | |
| 24 | 200362253 | FEMALE COUPLING | A90001 -- | |
| 25 | 200362263 | FEMALE PLUG | A90001 -- | |
| 26 | 200362262 | MALE PLUG | A90001 -- | |
| 27 | 500380110 | UNION | A90001 -- | |
| 28 | 855051617 | O-RING | A90001 -- | |
| 29 | 855051016 | O-RING | A90001 -- | |
| 30 | 392431023 | HOSE | A90001 -- | |
| 31 | 855051016 | O-RING | A90001 -- |
