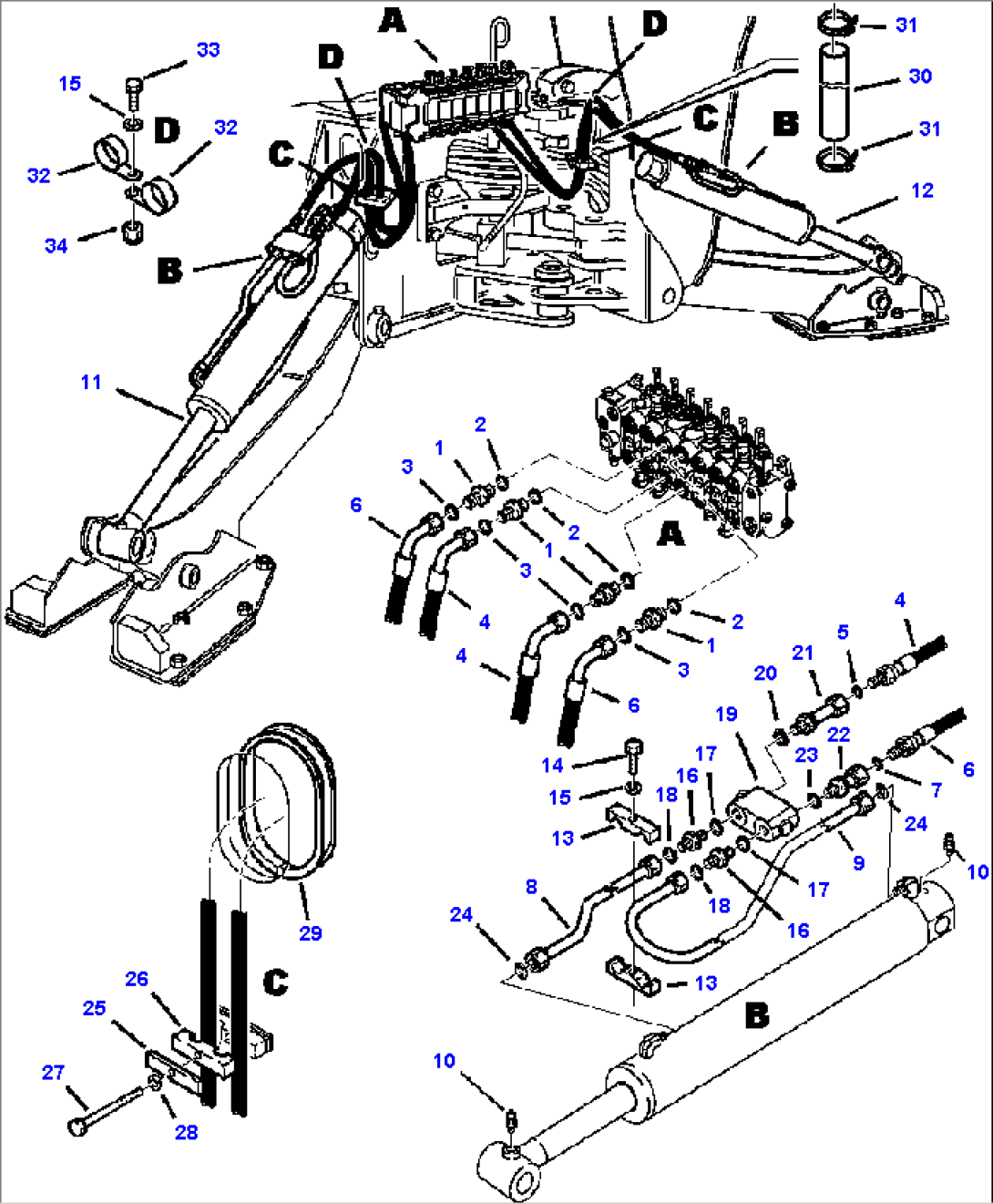

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 500380111 | UNION | A90002-- | |
| 2 | 855051119 | O-RING | A90002-- | |
| 3 | 855051016 | O-RING | A90002-- | |
| 4 | 392866001 | HOSE | A90002-- | |
| 5 | 855051016 | O-RING | A90002-- | |
| 6 | 392866002 | HOSE | A90002-- | |
| 7 | 855051016 | O-RING | A90002-- | |
| 8 | 312731074 | TUBE, RIGHT ROD | A90002-- | |
| 312731077 | TUBE, LEFT ROD | A90002-- | ||
| 9 | 312731073 | TUBE, RIGHT BARREL | A90002-- | |
| 312731076 | TUBE, LEFT BARREL | A90002-- | ||
| 10 | 860010007 | FITTING, GREASE | A90002-- | |
| 11 | RIGHT CYLINDER (SEE FIG. H7011-01A0) | A90002-- | ||
| 12 | LEFT CYLINDER (SEE FIG. H7011-01A1) | A90002-- | ||
| 13 | 200390970 | CLAMP, TUBING | A90002-- | |
| 14 | 801015089 | BOLT | A90002-- | |
| 15 | 802170001 | WASHER | A90002-- | |
| 16 | 500380131 | UNION | A90002-- | |
| 17 | 855051013 | O-RING | A90002-- | |
| 18 | 855051016 | O-RING | A90002-- | |
| 19 | 845250032 | VALVE, CHECK | A90002-- | |
| 20 | 855150037 | O-RING | A90002-- | |
| 21 | 312730075 | TUBE | A90002-- | |
| 22 | 306610074 | CONNECTOR | A90002-- | |
| 23 | 855051013 | O-RING | A90002-- | |
| 24 | 855051016 | O-RING | A90002-- | |
| 25 | 312707601 | PLATE | A90002-- | |
| 26 | 312707602 | CLAMP, HOSE | A90002-- | |
| 27 | 801015549 | BOLT | A90002-- | |
| 28 | 802150508 | WASHER | A90002-- | |
| 29 | 312707609 | PROTECTOR, HOSE | A90002-- | |
| 30 | 312610629 | PROTECTOR, HOSE | A90002-- | |
| 31 | 885180005 | CLAMP | A90002-- | |
| 32 | 802660500 | CLAMP | A90002-- | |
| 33 | 801015110 | BOLT | A90002-- | |
| 34 | 801880001 | NUT, LOCK | A90002-- |
