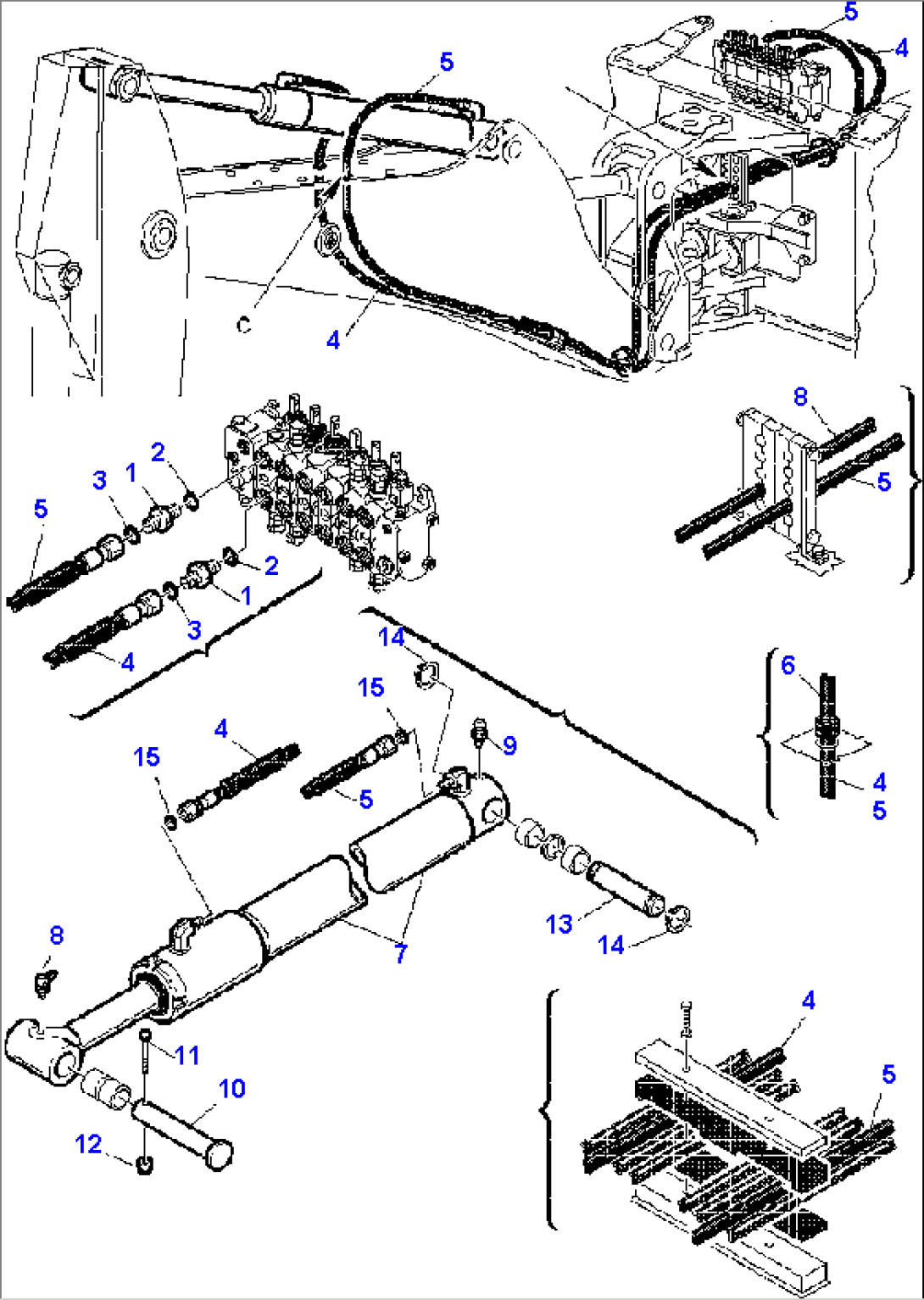

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 500380113 | UNION | A60001- | |
| 2 | 855051119 | O-RING | A60001- | |
| 3 | 855051018 | O-RING | A60001- | |
| 4 | 392860005 | HOSE | A60001- | |
| 5 | 392860024 | HOSE | A60001- | |
| 6 | 312708621 | BUSHING, HOSE | A60001- | |
| 7 | ARM CYLINDER (SEE FIG. H7310-01A0) | A60001- | ||
| 8 | 860030004 | FITTING, GREASE | A60001- | |
| 9 | 860010007 | FITTING, GREASE | A60001- | |
| 10 | 390597067 | PIN, CYLINDER | A60001- | |
| 11 | 801015584 | BOLT | A60001- | |
| 12 | 801880212 | NUT, SELF-LOCKING | A60001- | |
| 13 | 312708617 | PIN, CYLINDER | A60001- | |
| 14 | 802270017 | RING, SNAP | A60001- | |
| 15 | 855051018 | O-RING | A60001- |
