| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 500380113 | UNION | A70010-- | |
| 2 | 855051119 | O-RING | A70010-- | |
| 3 | 855051018 | O-RING | A70010-- | |
| 4 | 392860006 | HOSE | A70010-- | |
| 5 | 312708621 | GROMMET, HOSE | A70010-- |
- Главная
- Каталог запчастей
- Экскаваторы погрузчики
- Wb150ps 2n s/n a70010 up
- Hydraulic system
- Fig. h6740 01a0 backhoe piping control valve to bucket cylinder
Поиск по каталогу

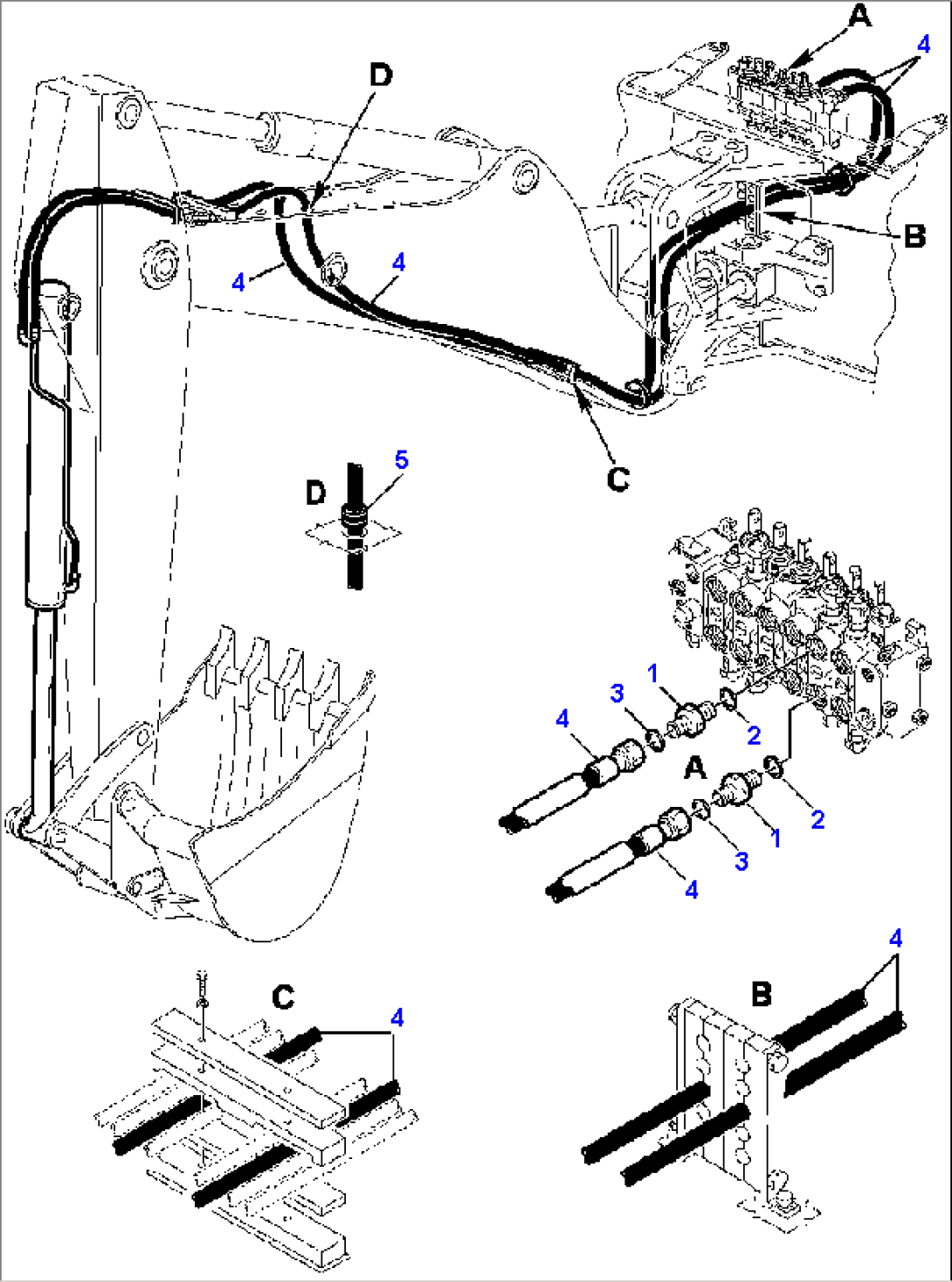

FIG. H6740-01A0 BACKHOE PIPING - CONTROL VALVE TO BUCKET CYLINDER
