| Item | Part No. | Part Name | Qty | Serial No. |

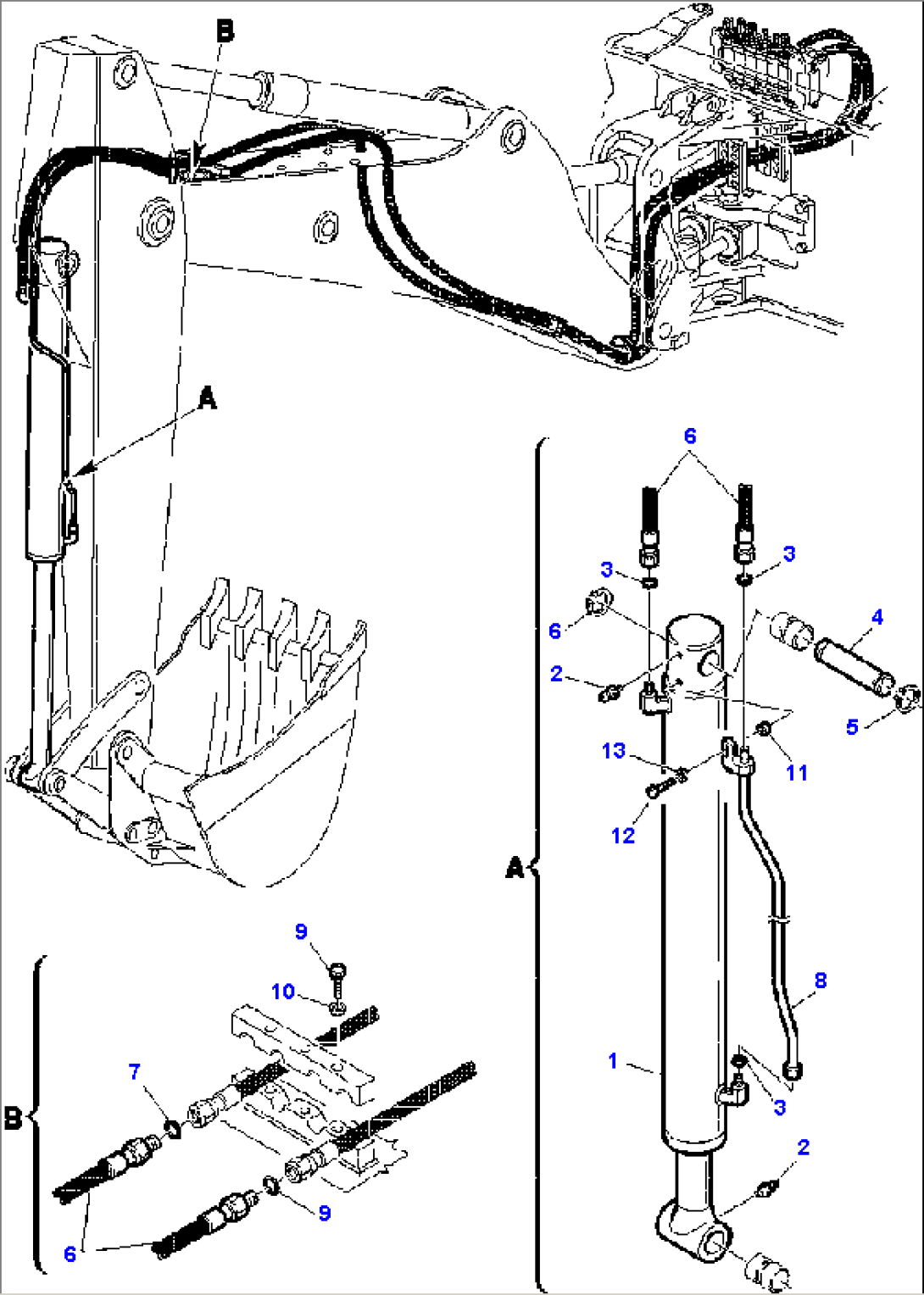

| 1 | BUCKET CYLINDER (SEE FIG. H7330-01A0) | A60001- | ||
| 2 | 860010007 | FITTING, GREASE | A60001- | |
| 3 | 855051018 | O-RING | A60001- | |
| 4 | 312709605 | PIN, CYLINDER | A60001- | |
| 5 | 602270017 | RING, SNAP | A60001- | |
| 6 | 392861004 | HOSE | A60001- | |
| 7 | 855051018 | O-RING | A60001- | |
| 8 | 312707097 | PIPE | A60001- | |
| 9 | 801015089 | BOLT | A60001- | |
| 10 | 802170001 | WASHER | A60001- | |
| 11 | 312707615 | SPACER | A60001- | |
| 12 | 801015110 | BOLT | A60001- | |
| 13 | 802170002 | WASHER | A60001- |
