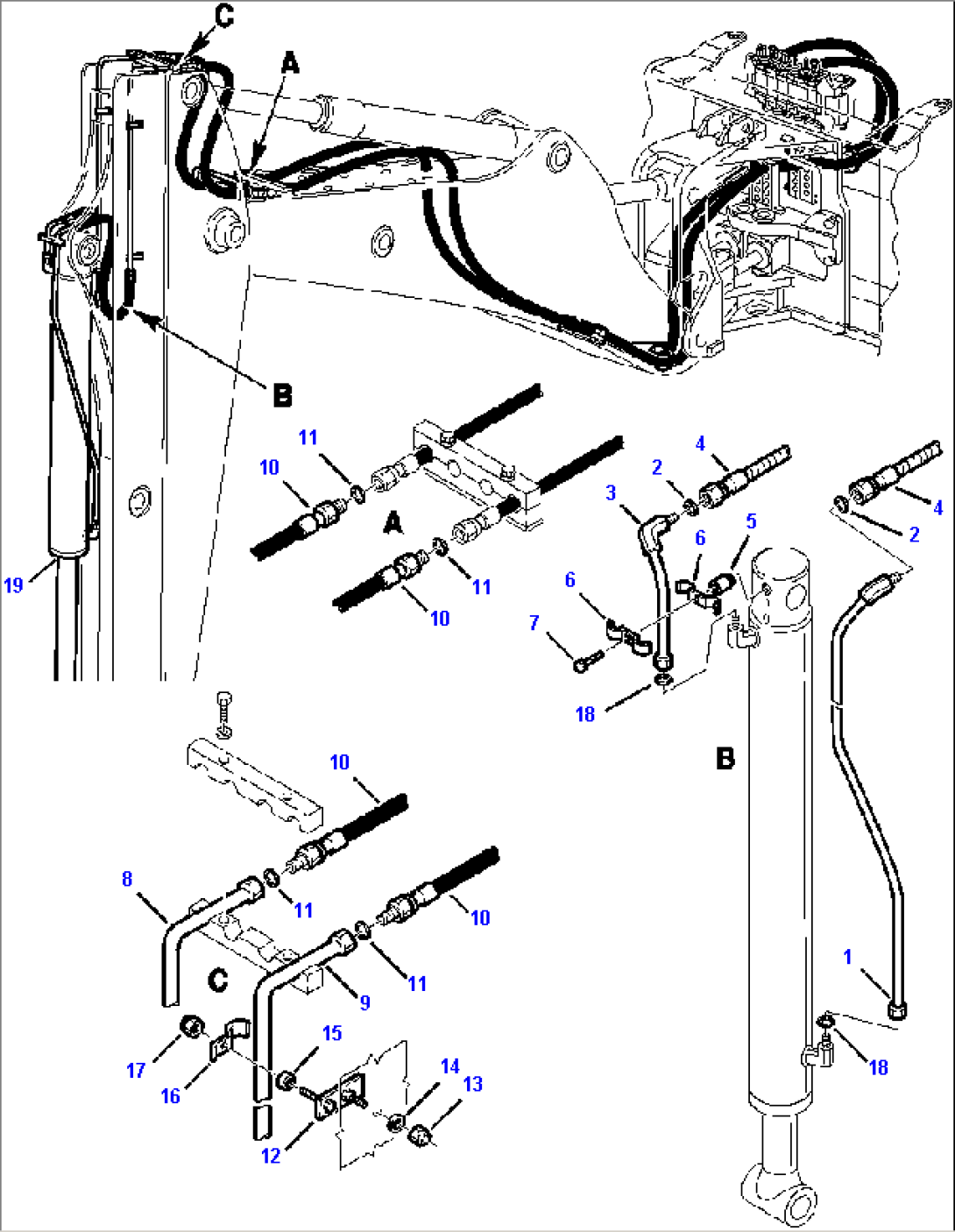

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312739073 | TUBE | A70010-- | |
| 2 | 855051016 | O-RING | A70010-- | |
| 3 | 312739072 | PIPE | A70010-- | |
| 4 | 392860009 | HOSE | A70010-- | |
| 5 | 312739620 | SPACER | A70010-- | |
| 6 | 312739623 | CLAMP | A70010-- | |
| 7 | 801015560 | BOLT | A70010-- | |
| 8 | 312739074 | TUBE, RIGHT | A70010-- | |
| 9 | 312739075 | TUBE, LEFT | A70010-- | |
| 10 | 392862001 | HOSE | A70010-- | |
| 11 | 855051018 | O-RING | A70010-- | |
| 12 | 312739069 | PLATE | A70010-- | |
| 13 | 801880208 | NUT, LOCK | A70010-- | |
| 14 | 802170001 | WASHER | A70010-- | |
| 15 | 312739624 | SPACER | A70010-- | |
| 16 | 312739622 | CLAMP | A70010-- | |
| 17 | 801880001 | NUT, LOCK | A70010-- | |
| 18 | 855051018 | O-RING | A70010-- | |
| 19 | CYLINDER (SEE FIG. H7008-01A0) | A70010-- |
