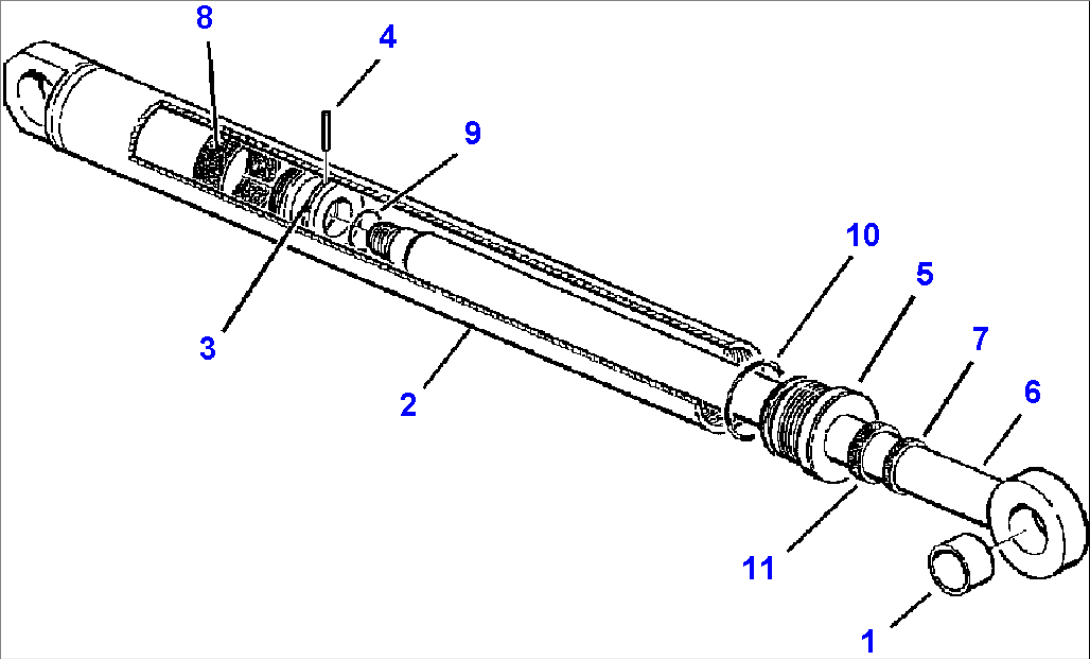

| Item | Part No. | Part Name | Qty | Serial No. |
| 312230674 | MP BUCKET CYLINDER | A90002-- | ||
| 1 | 390600073 | BUSHING | A90002-- | |
| 2 | 312230304 | BARREL | A90002-- | |
| 3 | 312230701 | PISTON | A90002-- | |
| 4 | 802510173 | PIN, SPLIT | A90002-- | |
| 5 | 312230702 | HEAD, CYLINDER | A90002-- | |
| 6 | 312230303 | ROD, PISTON | A90002-- | |
| 827020113 | GASKET KIT | A90002-- | ||
| 7 | (NSS) | WIPER, ROD | A90002-- | |
| 8 | (NSS) | SEAL, PISTON | A90002-- | |
| 9 | (NSS) | O-RING | A90002-- | |
| 10 | (NSS) | O-RING | A90002-- | |
| 11 | (NSS) | SEAL, ROD | A90002-- |
