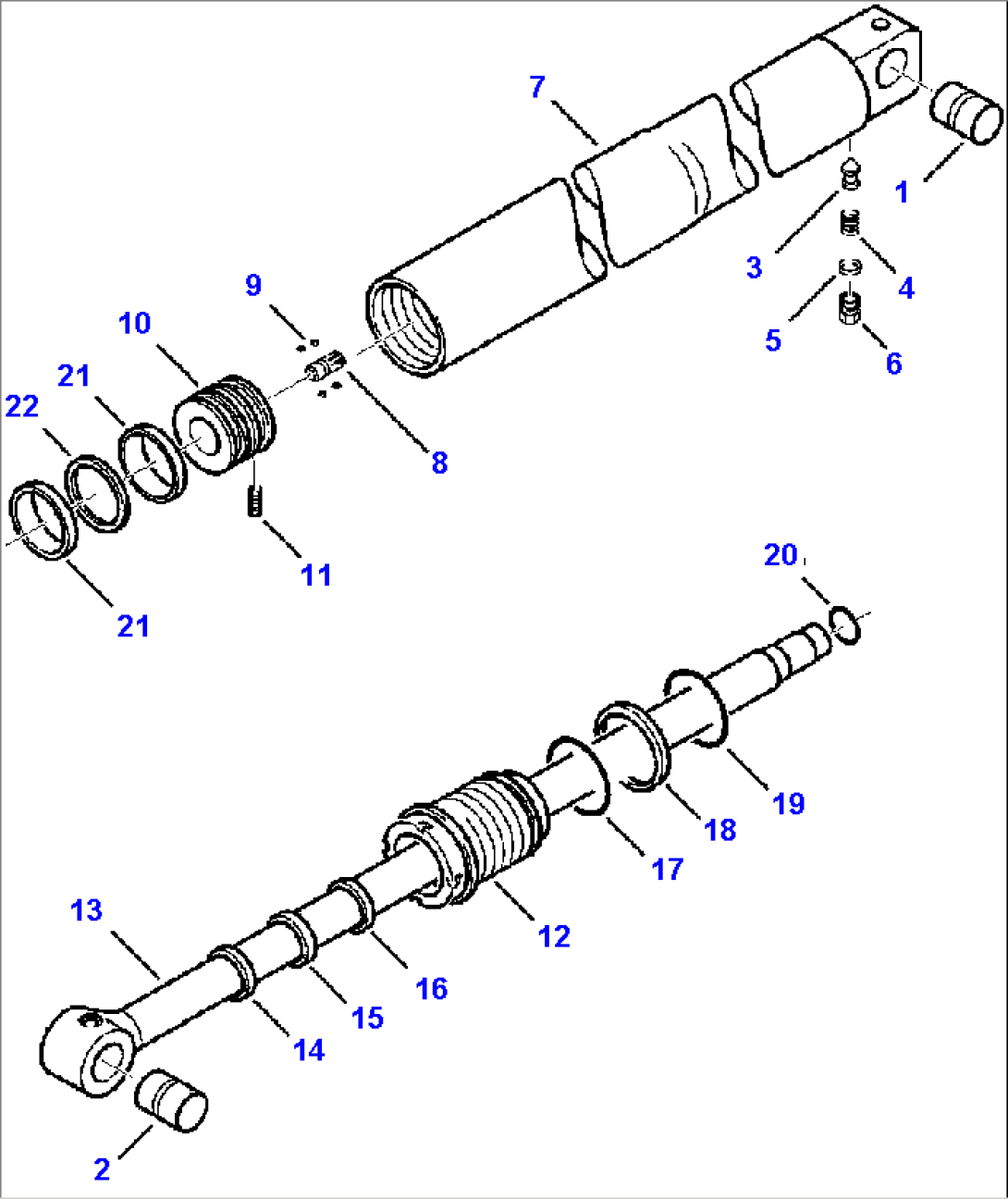

| Item | Part No. | Part Name | Qty | Serial No. |
| 395001007 | BOOM CYLINDER | A70010-- | ||
| 1 | 390658014 | BUSHING | A70010-- | |
| 2 | 390658014 | BUSHING | A70010-- | |
| 3 | 312305603 | VALVE, CHECK | A70010-- | |
| 4 | 804030055 | SPRING | A70010-- | |
| 5 | 855150037 | GASKET | A70010-- | |
| 6 | 390022007 | PLUG | A70010-- | |
| 7 | 395083013 | BARREL | A70010-- | |
| 8 | 391709001 | PIN, BRAKE | A70010-- | |
| 9 | 805750022 | BALL | A70010-- | |
| 10 | 395272014 | PISTON | A70010-- | |
| 11 | 801476086 | SCREW, SET | A70010-- | |
| 12 | 395302013 | HEAD, CYLINDER | A70010-- | |
| 13 | 395184015 | ROD, SHAFT | A70010-- | |
| 878000489 | SEAL KIT | A70010-- | ||
| 14 | (NSS) | WIPER, ROD | A70010-- | |
| 15 | (NSS) | SEAL, ROD | A70010-- | |
| 16 | (NSS) | SCRAPER, ROD | A70010-- | |
| 17 | (NSS) | O-RING | A70010-- | |
| 18 | (NSS) | RING, BACKING | A70010-- | |
| 19 | (NSS) | O-RING | A70010-- | |
| 20 | (NSS) | O-RING | A70010-- | |
| 21 | (NSS) | RING, WEAR | A70010-- | |
| 22 | (NSS) | SEAL, PISTON | A70010-- |
