| Item | Part No. | Part Name | Qty | Serial No. |

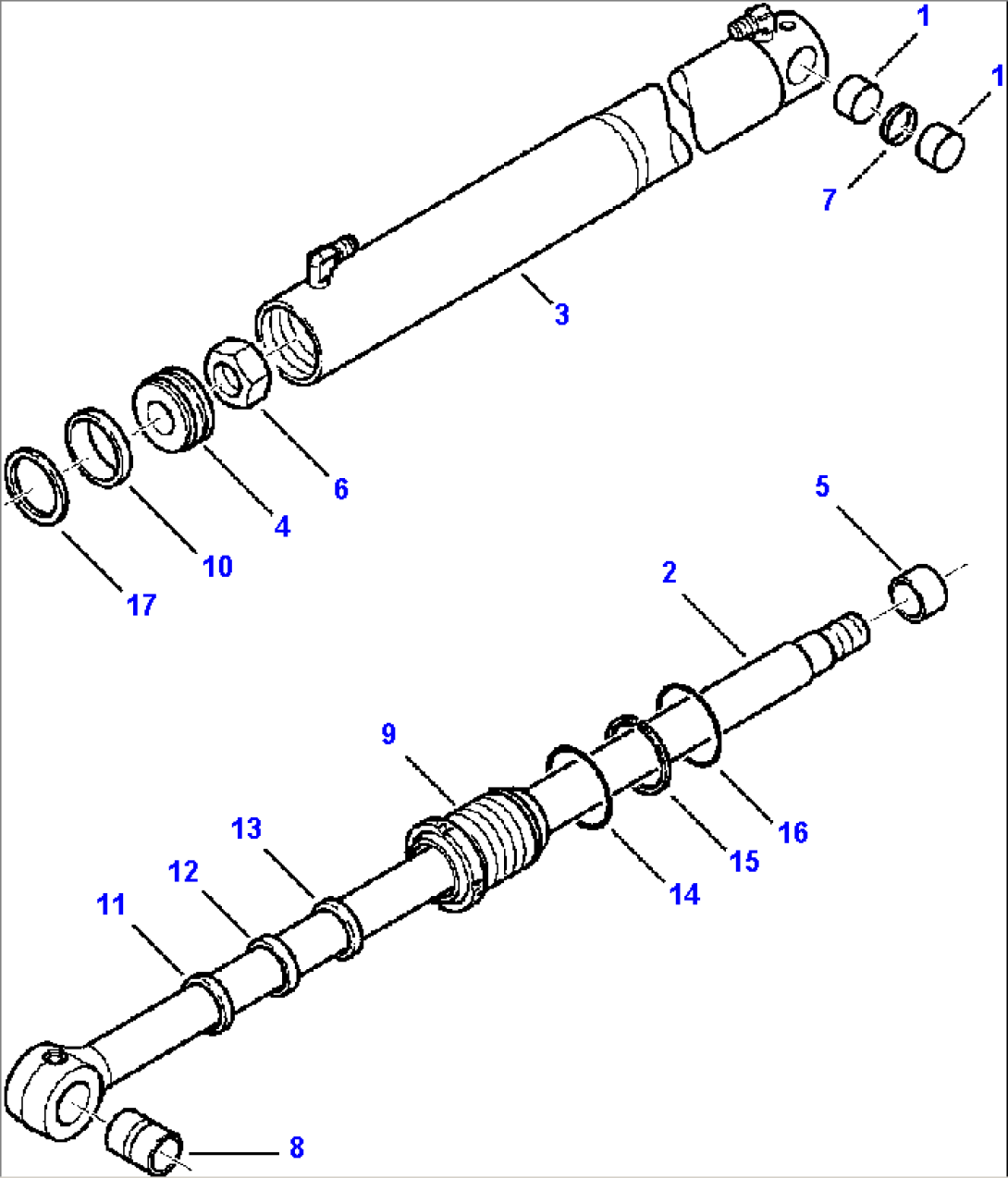

| 395002006 | ARM CYLINDER | A90002-- | ||
| 1 | 500217005 | BUSHING | A90002-- | |
| 2 | 395188011 | ROD | A90002-- | |
| 3 | 395064012 | BARREL | A90002-- | |
| 4 | 395275013 | PISTON | A90002-- | |
| 5 | 391575011 | BUSHING | A90002-- | |
| 6 | 801920220 | NUT | A90002-- | |
| 7 | 500044300 | SPACER | A90002-- | |
| 8 | 500217006 | BUSHING | A90002-- | |
| 9 | 395303011 | HEAD, CYLINDER | A90002-- | |
| 878000491 | SEAL KIT | A90002-- | ||
| 10 | (NSS) | RING, WEAR | A90002-- | |
| 11 | (NSS) | WIPER, ROD | A90002-- | |
| 12 | (NSS) | SEAL, ROD | A90002-- | |
| 13 | (NSS) | SCRAPER, ROD | A90002-- | |
| 14 | (NSS) | O-RING | A90002-- | |
| 15 | (NSS) | RING, BACKING | A90002-- | |
| 16 | (NSS) | O-RING | A90002-- | |
| 17 | (NSS) | SEAL, PISTON | A90002-- | |
| F1 FOR CYLINDER REPLACEMENT, ORDER THE FOLLOWING PART: | ||||
| 2938-856-730 | ARM CYLINDER | |||
