| Item | Part No. | Part Name | Qty | Serial No. |

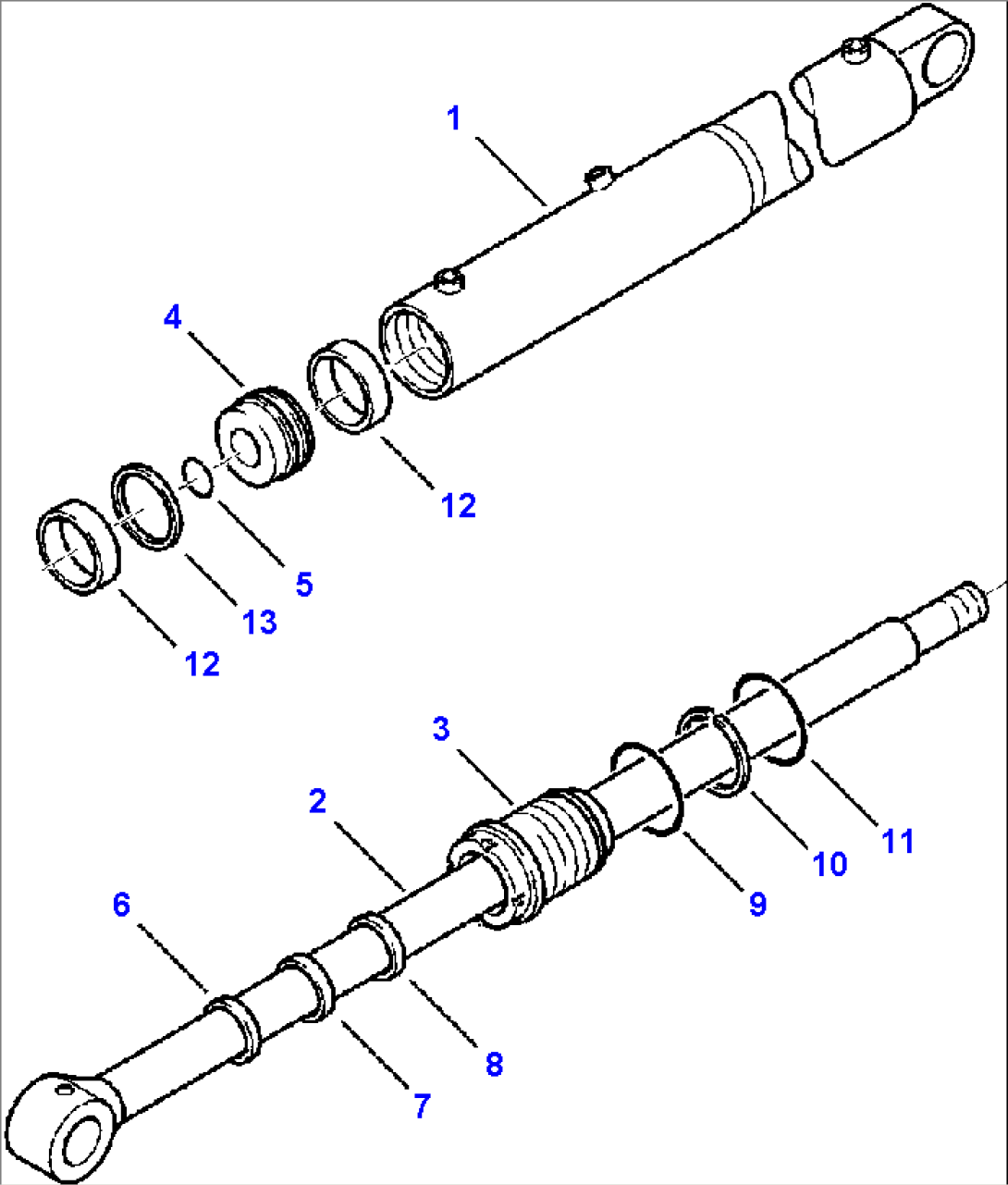

| 395009005 | TELESCOPIC ARM CYLINDER | A90002-- | ||
| 1 | 395099011 | BARREL | A90002-- | |
| 2 | 200085708 | ROD | A90002-- | |
| 3 | 391964012 | HEAD, CYLINDER | A90002-- | |
| 4 | 391966016 | PISTON | A90002-- | |
| 878000388 | SEAL KIT | A90002-- | ||
| 5 | (NSS) | O-RING | A90002-- | |
| 6 | (NSS) | WIPER, ROD | A90002-- | |
| 7 | (NSS) | SEAL, ROD | A90002-- | |
| 8 | (NSS) | RING, BUFFER | A90002-- | |
| 9 | (NSS) | O-RING | A90002-- | |
| 10 | (NSS) | RING, BACKING | A90002-- | |
| 11 | (NSS) | O-RING | A90002-- | |
| 12 | (NSS) | RING, WEAR | A90002-- | |
| 13 | (NSS) | SEAL, PISTON | A90002-- |
