| Item | Part No. | Part Name | Qty | Serial No. |

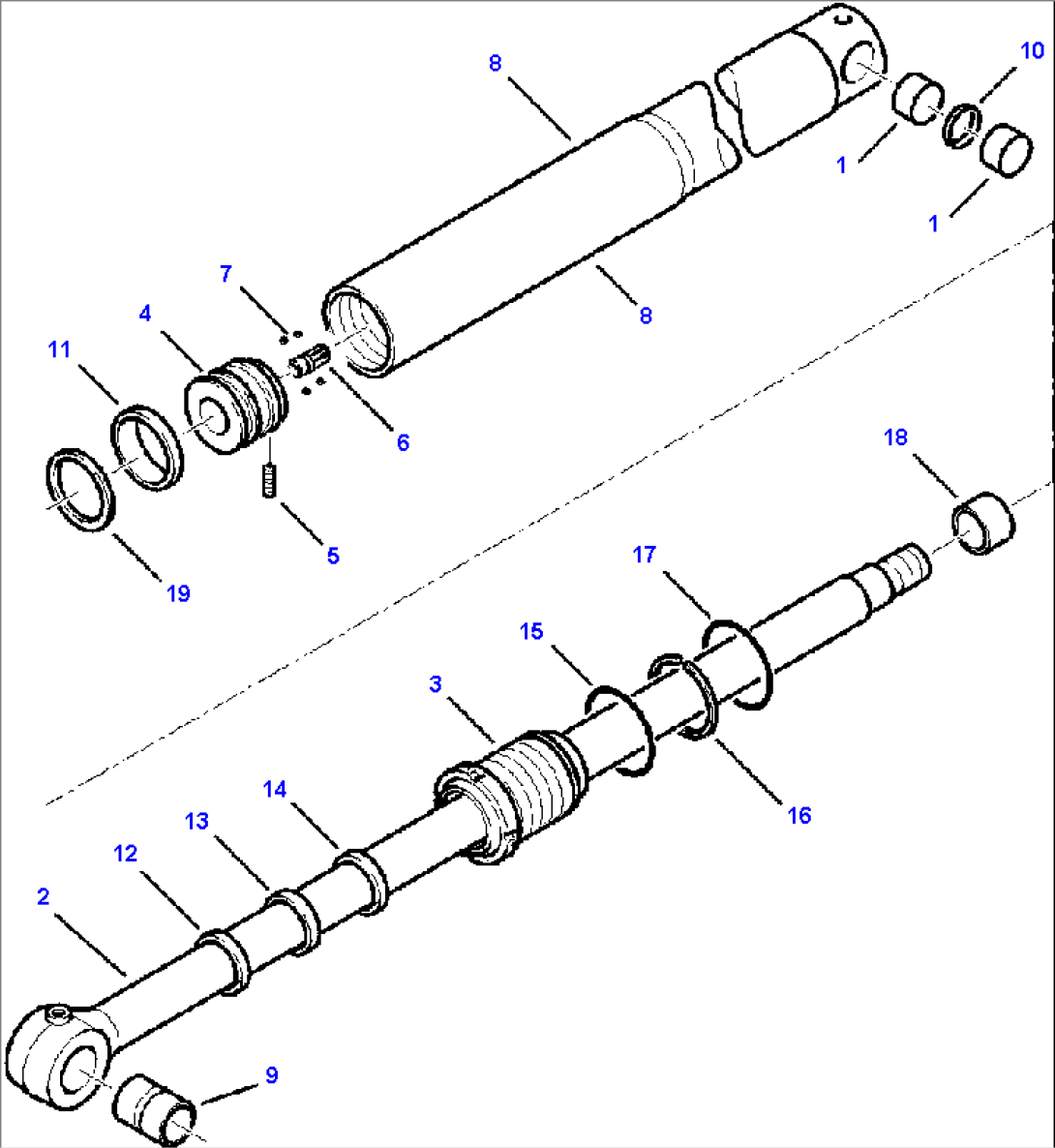

| 395011007 | RIGHT OUTRIGGER CYLINDER | A90002-- | ||
| 1 | 500217005 | BUSHING | A90002-- | |
| 2 | 395184013 | ROD | A90002-- | |
| 3 | 500460755 | HEAD | A90002-- | |
| 4 | 395276011 | PISTON | A90002-- | |
| 5 | 801470086 | SCREW | A90002-- | |
| 6 | 391709001 | PIN | A90002-- | |
| 7 | 805750022 | BALL | A90002-- | |
| 8 | 395077013 | CYLINDER | A90002-- | |
| 9 | 500217006 | BUSHING | A90002-- | |
| 10 | 500044300 | SPACER | A90002-- | |
| 878000494 | GASKET KIT | A90002-- | ||
| 11 | (NSS) | RING | A90002-- | |
| 12 | (NSS) | GASKET | A90002-- | |
| 13 | (NSS) | GASKET | A90002-- | |
| 14 | (NSS) | GASKET | A90002-- | |
| 15 | (NSS) | O-RING | A90002-- | |
| 16 | (NSS) | RING | A90002-- | |
| 17 | (NSS) | O-RING | A90002-- | |
| 18 | (NSS) | GASKET | A90002-- | |
| 19 | (NSS) | GASKET | A90002-- |
