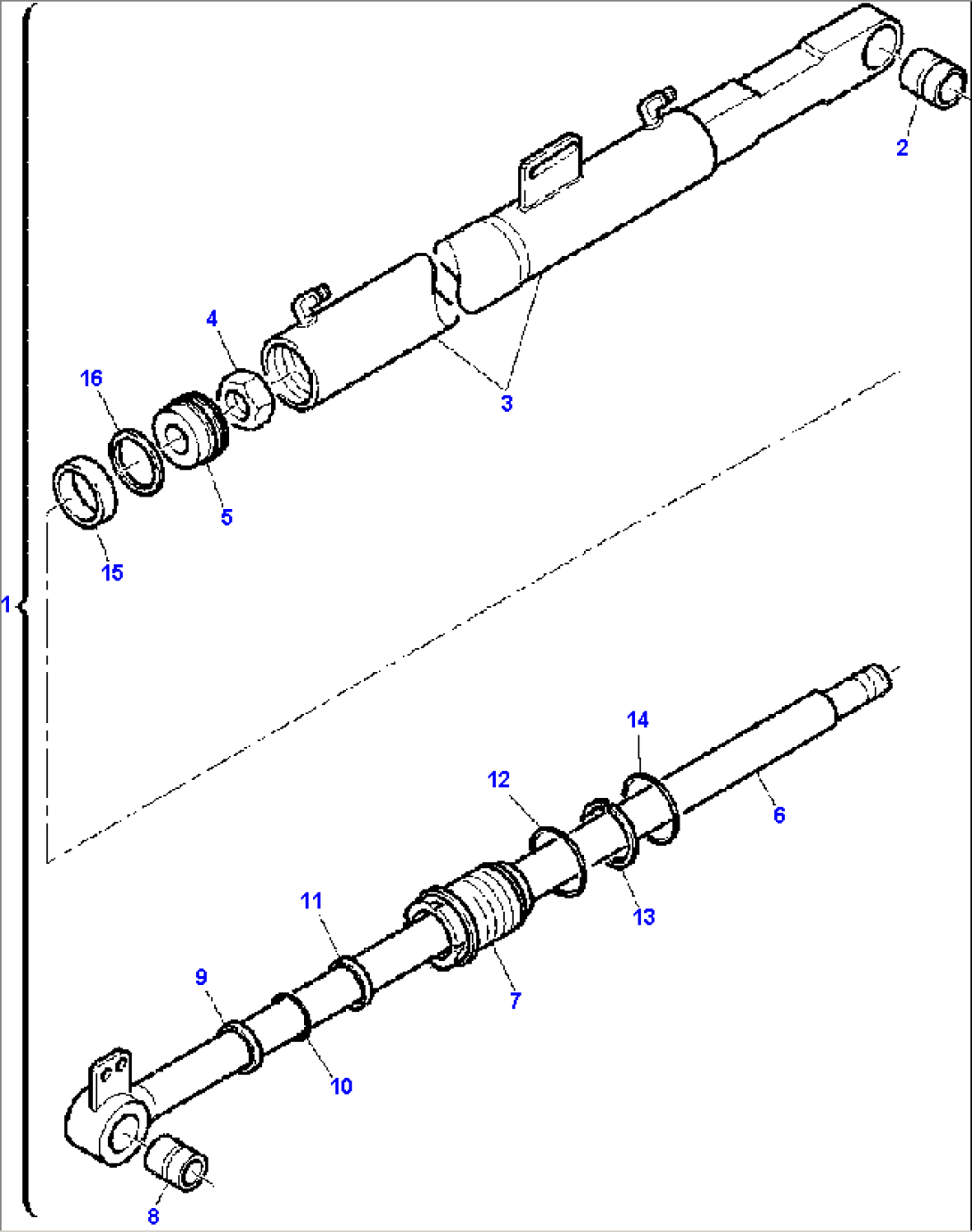

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 395013019 | SHOVEL DUMP CYLINDER, RIGHT | A60001- | |
| 2 | 390658013 | BUSHING | A60001- | |
| 3 | 395078013 | CYLINDER | A60001- | |
| 4 | 801920220 | NUT | A60001- | |
| 5 | 3K4088605 | PISTON | A60001- | |
| 6 | 395183014 | ROD | A60001- | |
| 7 | 391964013 | HEAD, CYLINDER | A60001- | |
| 8 | 500217005 | BUSHING, PIVOT LEVER | A60001- | |
| 878000487 | GASKET KIT | A60001- | ||
| 9 | (NSS) | RING, SCRAPER | A60001- | |
| 10 | (NSS) | GASKET | A60001- | |
| 11 | (NSS) | GASKET | A60001- | |
| 12 | (NSS) | GASKET | A60001- | |
| 13 | (NSS) | RING | A60001- | |
| 14 | (NSS) | O-RING | A60001- | |
| 15 | (NSS) | O-RING | A60001- | |
| 16 | (NSS) | GASKET | A60001- |
