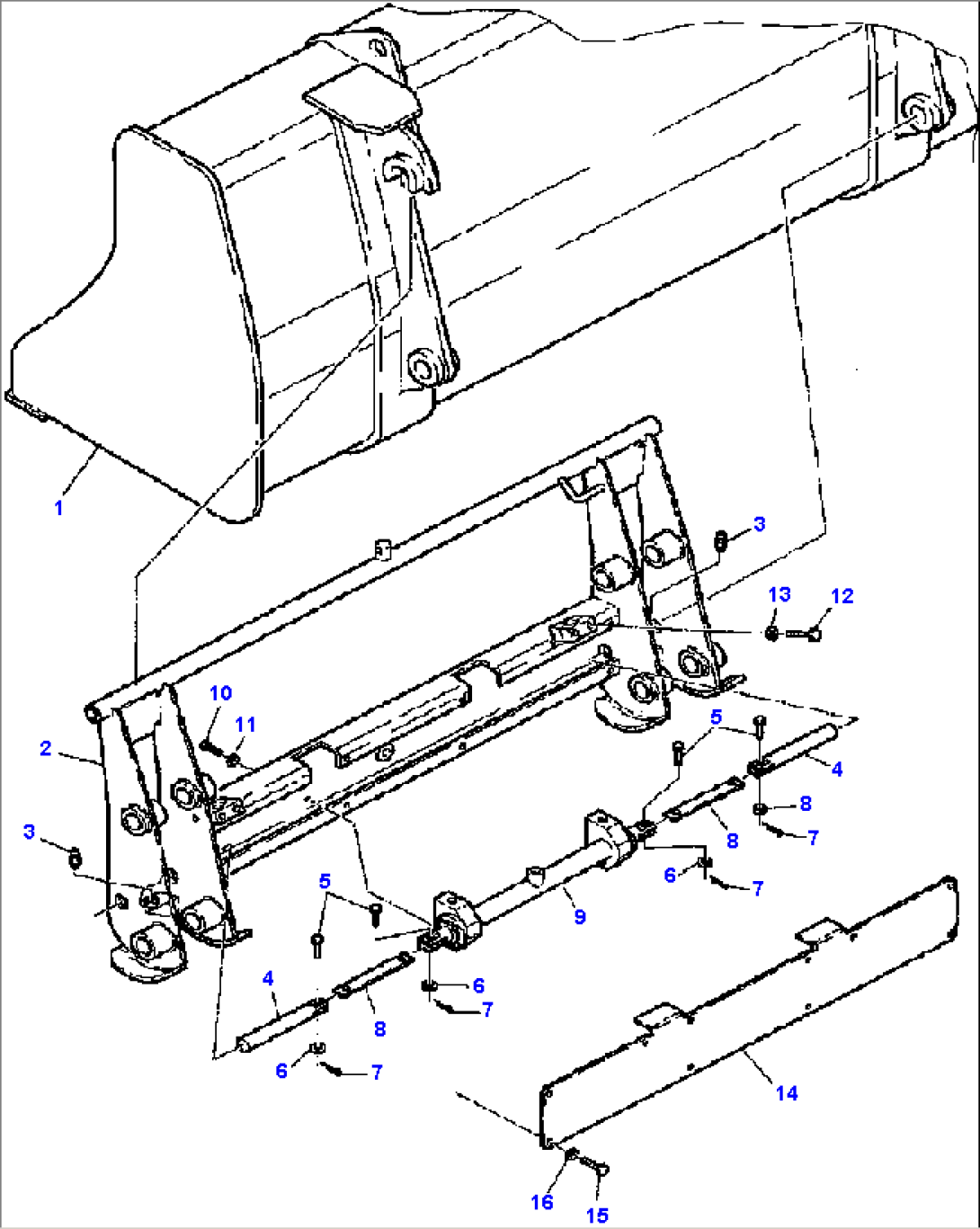

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312630060 | BUCKET | A40001 -- | |
| 2 | 312630059 | FRAME | A40001 -- | |
| 3 | 860010007 | FITTING, GREASE | A40001 -- | |
| 4 | 312630648 | PIN, ROD | A40001 -- | |
| 5 | 500327217 | PIN, LEVER | A40001 -- | |
| 6 | 802040029 | WASHER | A40001 -- | |
| 7 | 802610073 | PIN, COTTER | A40001 -- | |
| 8 | 500014695 | LEVER, LINK | A40001 -- | |
| 9 | QUICK COUPLING CYLINDER (SEE FIG. H7045-01A0) | A40001 -- | ||
| 10 | 801015110 | BOLT | A40001 -- | |
| 11 | 802150510 | WASHER | A40001 -- | |
| 12 | 801015090 | BOLT | A40001 -- | |
| 13 | 802150508 | WASHER | A40001 -- | |
| 14 | 312630647 | CYLINDER GUARD | A40001 -- | |
| 15 | 801015086 | BOLT | A40001 -- | |
| 16 | 802120008 | WASHER, SPRING | A40001 -- |
