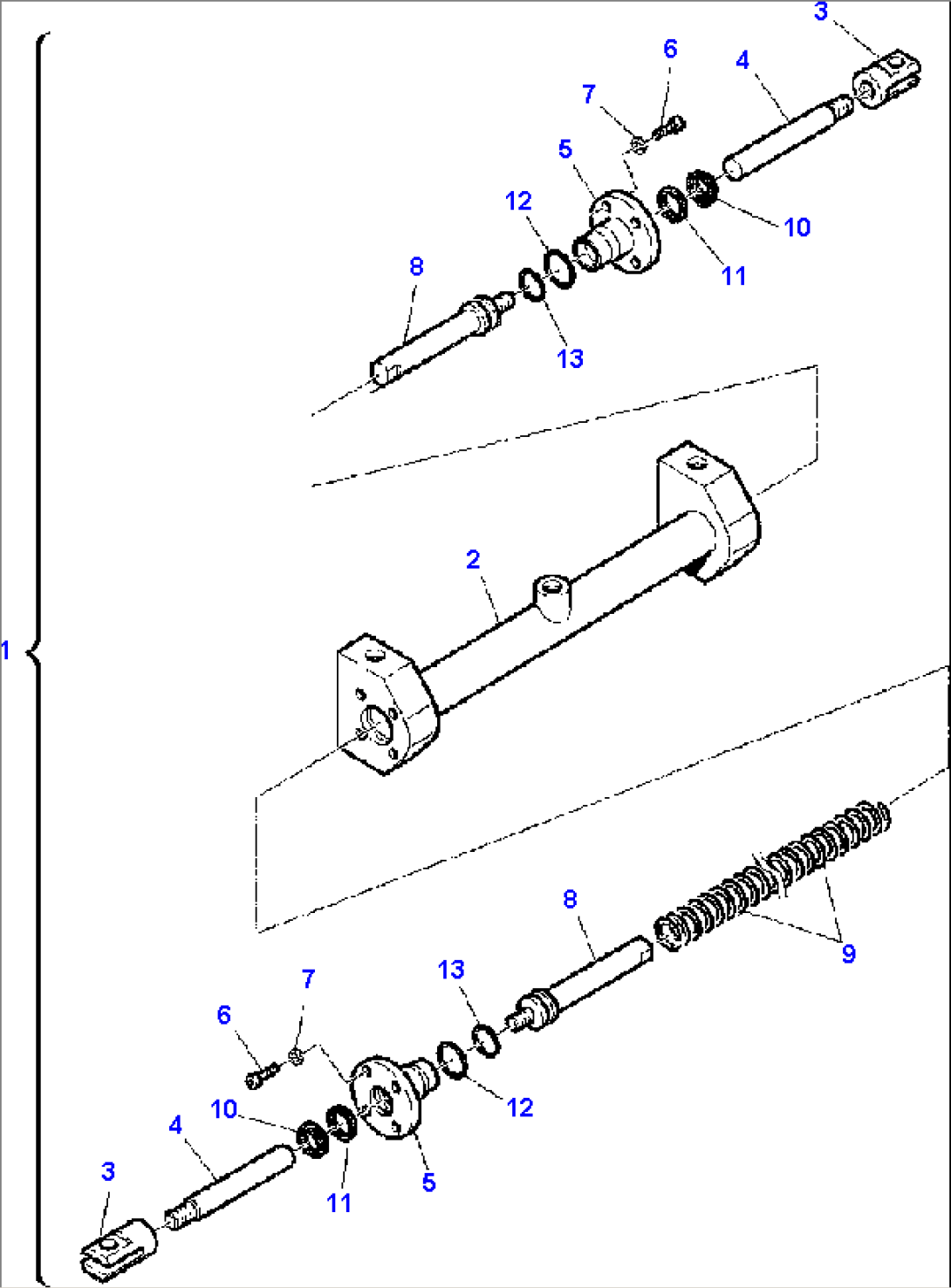

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 200060282 | QUICK COUPLING CYLINDER | A20001-- | |
| 2 | 200071019 | CYLINDER | A20001-- | |
| 3 | 500022658 | FORK | A20001-- | |
| 4 | 500014514 | ROD | A20001-- | |
| 5 | 500532453 | HEAD | A20001-- | |
| 6 | 801104100 | SCREW | A20001-- | |
| 7 | 802130008 | WASHER, SPRING | A20001-- | |
| 8 | 500014513 | PISTON | A20001-- | |
| 9 | 804030052 | SPRING | A20001-- | |
| 878000617 | GASKET KIT | A20001-- | ||
| 10 | (NSS) | GASKET | A20001-- | |
| 11 | (NSS) | GASKET | A20001-- | |
| 12 | (NSS) | O-RING | A20001-- | |
| 13 | (NSS) | O-RING | A20001-- |
