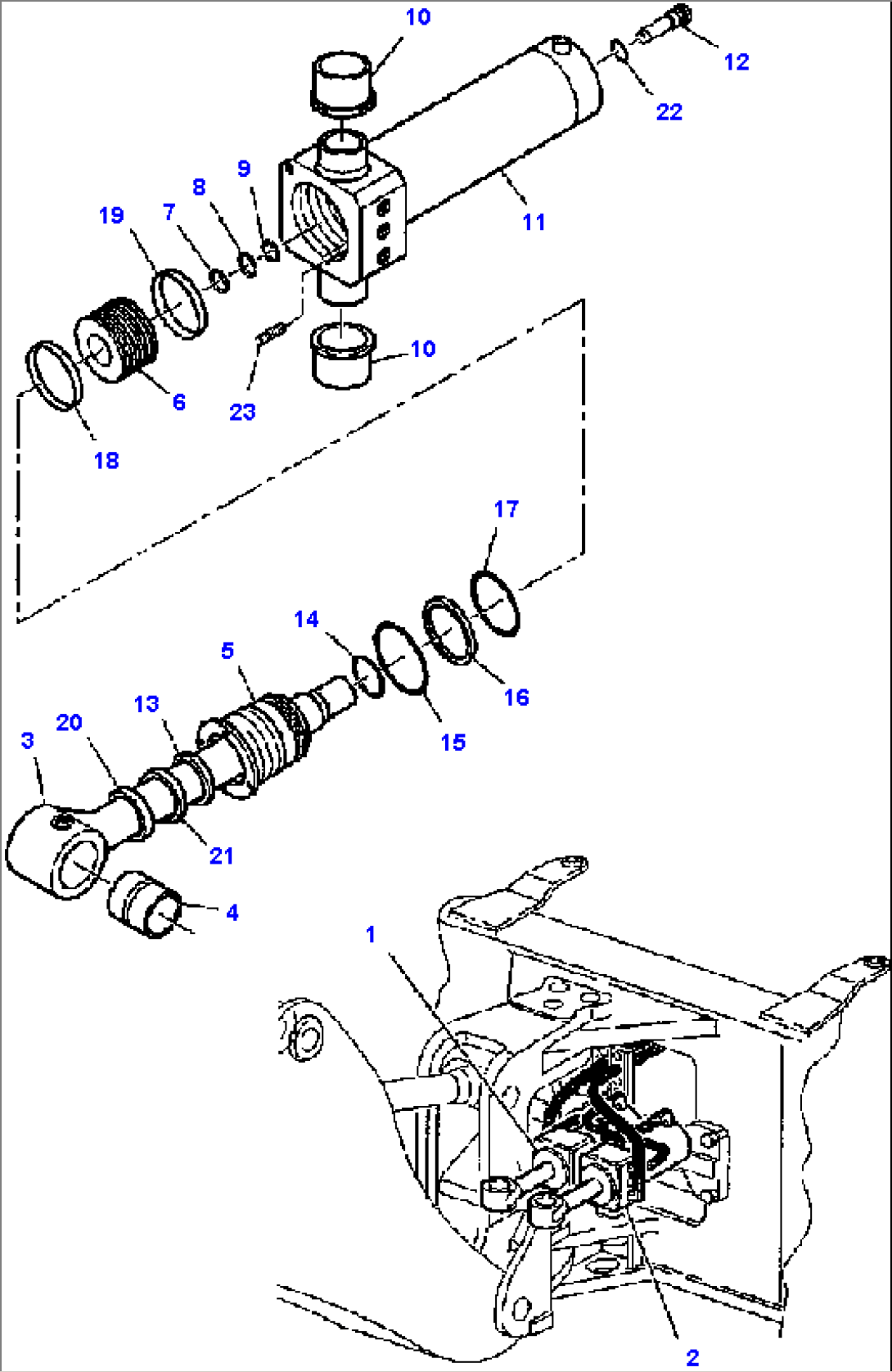

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 395005017 | R.H. BOOM SWING CYLINDER ASSEMBLY | A40001 -- | |
| 2 | 395005018 | L.H. BOOM SWING CYLINDER ASSEMBLY | A40001 -- | |
| 3 | 395187012 | ROD | A40001 -- | |
| 4 | 390601058 | BUSHING | A40001 -- | |
| 5 | 395330011 | HEAD, CYLINDER | A40001 -- | |
| 6 | 395273018 | PISTON | A40001 -- | |
| 7 | 500468851 | RING | A40001 -- | |
| 8 | 500252046 | RING | A40001 -- | |
| 9 | 802250530 | RING | A40001 -- | |
| 10 | 500213004 | BUSHING | A40001 -- | |
| 11 | 395090011 | CYLINDER, RIGHT | A40001 -- | |
| OR | ||||
| 11 | 395091011 | CYLINDER, LEFT | A40001 -- | |
| 12 | 312705602 | PLUG, CYLINDER | A40001 -- | |
| 878000542 | GASKET KIT | A40001 -- | ||
| 13 | (NSS) | GASKET | A40001 -- | |
| 14 | (NSS) | O-RING | A40001 -- | |
| 15 | (NSS) | O-RING | A40001 -- | |
| 16 | (NSS) | RING | A40001 -- | |
| 17 | (NSS) | O-RING | A40001 -- | |
| 18 | (NSS) | GASKET | A40001 -- | |
| 19 | (NSS) | RING, WEAR | A40001 -- | |
| 20 | (NSS) | RING, SCRAPER | A40001 -- | |
| 21 | (NSS) | GASKET | A40001 -- | |
| 22 | (NSS) | O-RING | A40001 -- | |
| 23 | 801456086 | SCREW | A40001 -- |
