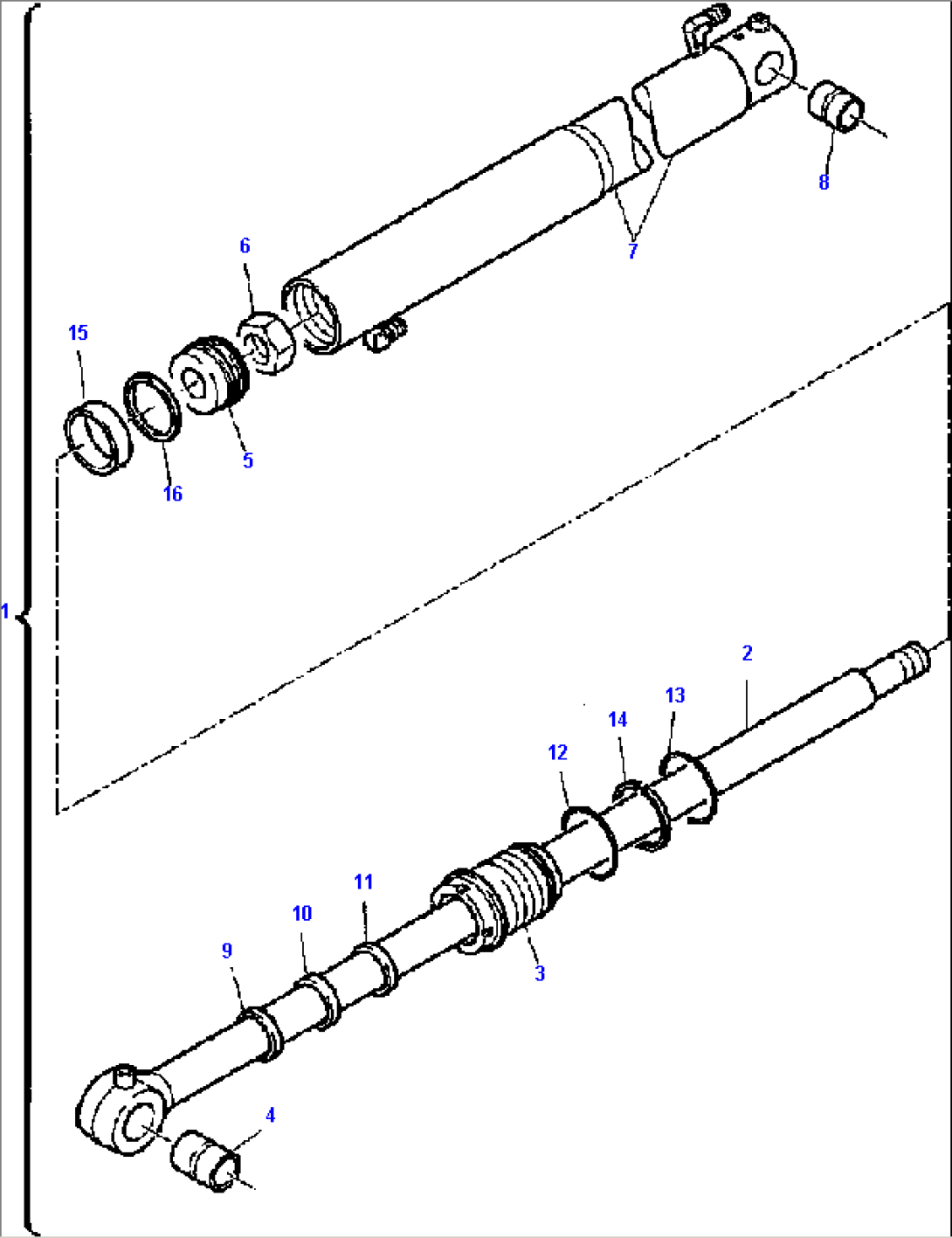

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 395003005 | BUCKET CYLINDER | A40001 -- | |
| 2 | 395188012 | SHAFT | A40001 -- | |
| 3 | 395302014 | HEAD, CYLINDER | A40001 -- | |
| 4 | 500217005 | BUSHING | A40001 -- | |
| 5 | 395275012 | PISTON | A40001 -- | |
| 6 | 801920220 | NUT | A40001 -- | |
| 7 | 395092012 | CYLINDER | A40001 -- | |
| 8 | 500217007 | BUSHING | A40001 -- | |
| 878000492 | GASKET KIT | A40001 -- | ||
| 9 | (NSS) | RING, SCRAPER | A40001 -- | |
| 10 | (NSS) | GASKET | A40001 -- | |
| 11 | (NSS) | RING, SCRAPER | A40001 -- | |
| 12 | (NSS) | O-RING | A40001 -- | |
| 13 | (NSS) | O-RING | A40001 -- | |
| 14 | (NSS) | RING | A40001 -- | |
| 15 | (NSS) | GASKET | A40001 -- | |
| 16 | (NSS) | RING | A40001 -- |
