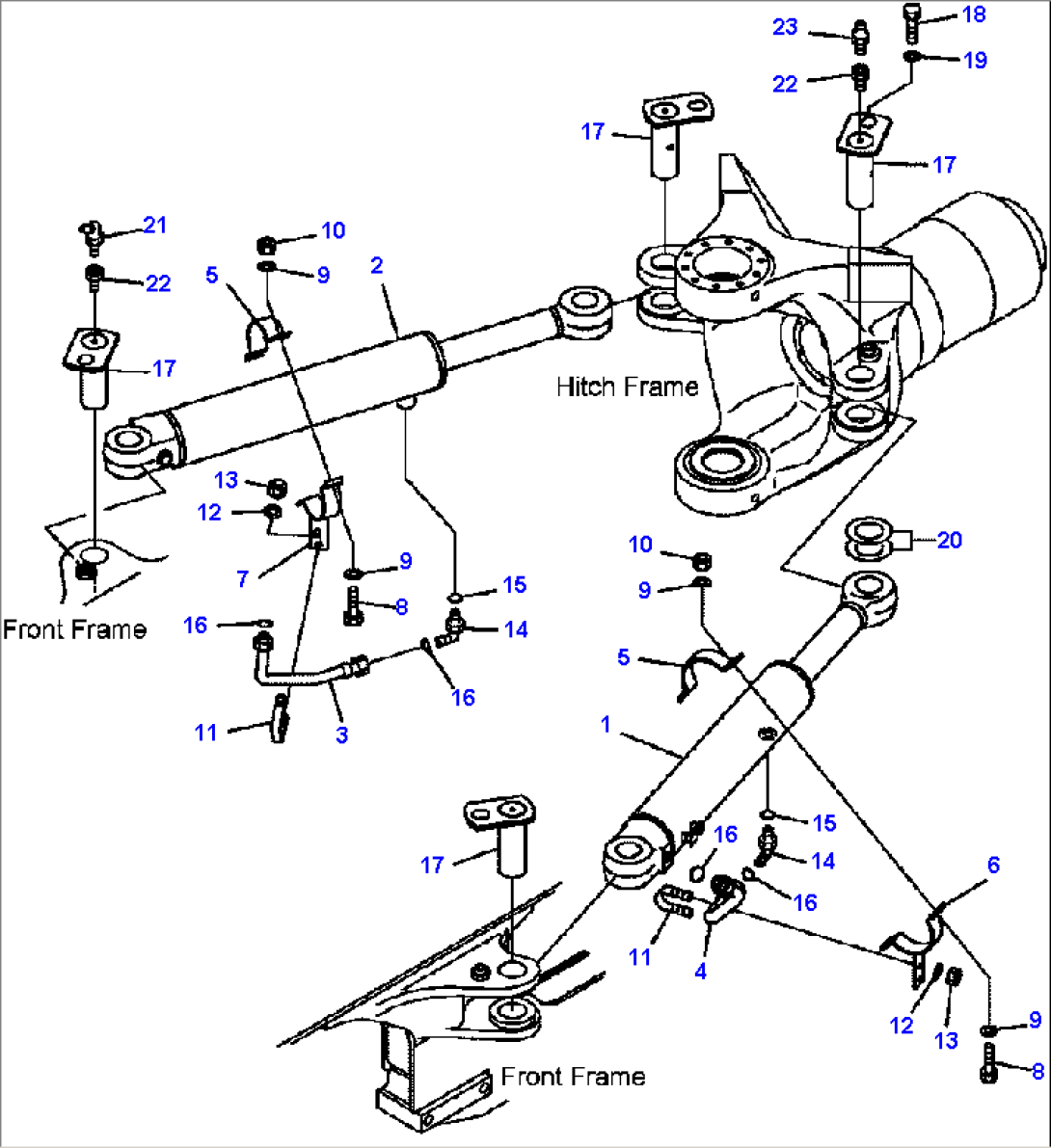

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | CYLINDER, L.H. (SEE FIG. H3410-06B0) | A10001-- | ||
| 2 | CYLINDER, R.H. (SEE FIG. H3410-06B0) | A10001-- | ||
| 3 | 56B-61-11952 | TUBE | A10001-- | |
| 4 | 56B-61-11571 | TUBE | A10001-- | |
| 5 | 56C-61-11960 | CLAMP | A10001-- | |
| 6 | 56C-61-11970 | CLAMP | A10001-- | |
| 7 | 56C-61-11980 | CLAMP | A10001-- | |
| 8 | 01010-81030 | BOLT | A10001-- | |
| 9 | 01643-31032 | WASHER | A10001-- | |
| 10 | 01580-11008 | NUT | A10001-- | |
| 11 | 07283-32738 | CLIP | A10001-- | |
| 12 | 01643-31032 | WASHER | A10001-- | |
| 13 | 01597-01009 | NUT | A10001-- | |
| 14 | 21W-62-42550 | ELBOW | A10001-- | |
| 15 | 07002-22434 | O-RING | A10001-- | |
| 16 | 02896-21018 | O-RING | A10001-- | |
| 17 | 56B-60-11810 | PIN | A10001-- | |
| 18 | 01010-81625 | BOLT | A10001-- | |
| 19 | 421-70-11280 | WASHER | A10001-- | |
| 20 | 417-70-11340 | SHIM, 1.5MM | A10001-- | |
| 417-70-11370 | SHIM, 0.5MM | A10001-- | ||
| 21 | 07020-00675 | FITTING, GREASE | A10001-- | |
| 22 | 423-70-11160 | NIPPLE | A10001-- | |
| 23 | 07020-00000 | FITTING, GREASE | A10001-- |
