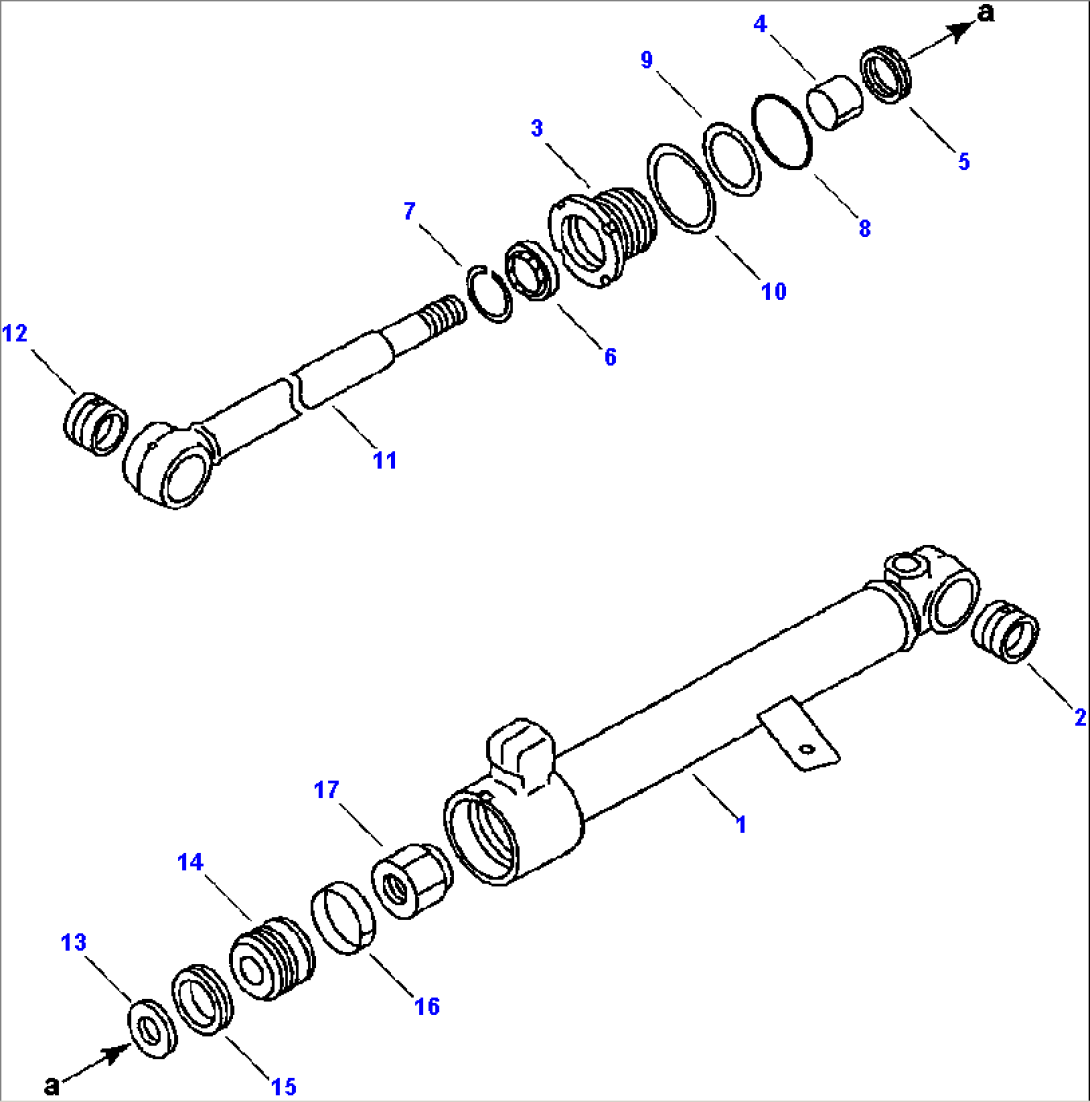

| Item | Part No. | Part Name | Qty | Serial No. |
| 707-00-08581 | CYLINDER ASSEMBLY, L.H. | A80001-UP- | ||
| 707-00-08591 | CYLINDER ASSEMBLY, R.H. | A80001-UP- | ||
| 1 | 707-00-60022 | CYLINDER, L.H. | A80001-UP- | |
| 707-11-60331 | CYLINDER, L.H. | A80001-UP- | ||
| 707-11-60012 | CYLINDER, R.H. | A80001-UP- | ||
| 707-11-60321 | CYLINDER, R.H. | A80001-UP- | ||
| 2 | 707-76-35040 | BUSHING | A80001-UP- | |
| 3 | 707-29-60280 | HEAD, CYLINDER | A80001-UP- | |
| 4 | 07177-04025 | BUSHING | A80001-UP- | |
| 5 | (NSS) | PACKING, ROD | A80001-UP- | |
| 6 | (NSS) | SEAL, DUST | A80001-UP- | |
| 7 | 07179-00059 | RING, SNAP | A80001-UP- | |
| 8 | (NSS) | O-RING | A80001-UP- | |
| 9 | (NSS) | RING, BACK-UP | A80001-UP- | |
| 10 | 707-45-60010 | RING, LOCK | A80001-UP- | |
| 11 | 707-58-40180 | ROD, PISTON | A80001-UP- | |
| 12 | 707-76-35040 | BUSHING | A80001-UP- | |
| 13 | 707-40-60280 | RETAINER | A80001-UP- | |
| 14 | 707-36-60281 | PISTON | A80001-UP- | |
| 15 | (NSS) | RING, PISTON | A80001-UP- | |
| 16 | (NSS) | RING, WEAR | A80001-UP- | |
| 17 | 07165-13033 | NUT, NYLON | A80001-UP- | |
| 707-99-14200 | KIT, SERVICE | A80001-UP- | ||
| F1 - INCLUDED IN SERVICE KIT. | ||||
