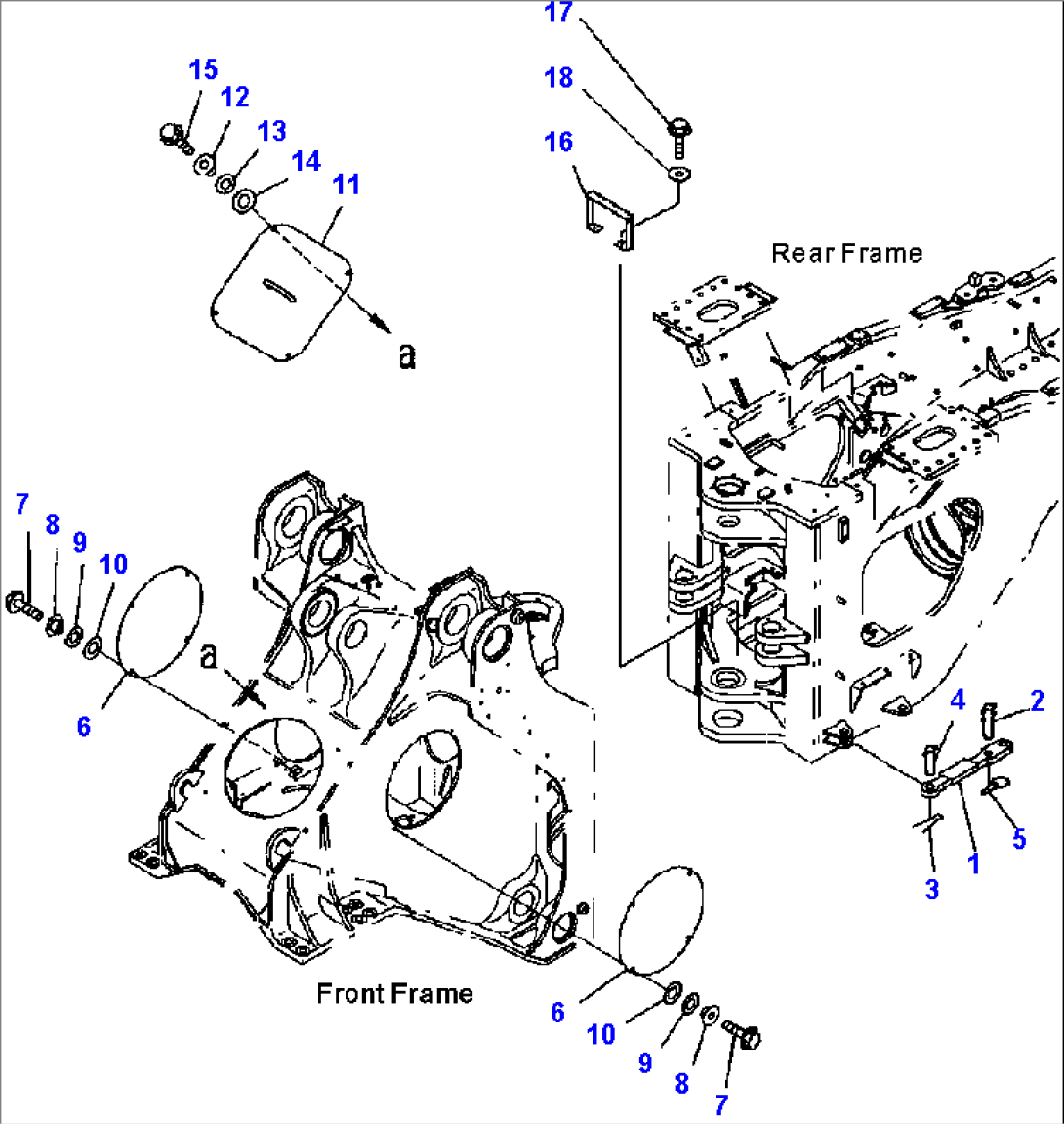

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-46-24120 | BAR, LOCK | A50001 -- | |
| 2 | 426-46-12311 | PIN | A50001 -- | |
| 04025-01080 | PIN, SPRING | A50001 -- | ||
| 3 | 04050-10070 | PIN, COTTER | A50001 -- | |
| 4 | 426-46-12330 | PIN | A50001 -- | |
| 5 | 426-46-12280 | PIN, LINCH | A50001 -- | |
| 6 | 428-46-14110 | PLATE | A50001 -- | |
| 7 | 01435-01250 | BOLT | A50001 -- | |
| 8 | 415-46-11370 | SPACER | A50001 -- | |
| 9 | 415-46-11380 | CUSHION | A50001 -- | |
| 10 | 01640-22440 | WASHER | A50001 -- | |
| 11 | 427-46-11531 | COVER | A50001 -- | |
| 12 | 427-54-11860 | SPACER | A50001 -- | |
| 13 | 415-46-11380 | CUSHION | A50001 -- | |
| 14 | 01640-22440 | WASHER | A50001 -- | |
| 15 | 01435-01250 | BOLT | A50001 -- | |
| 16 | 428-46-24110 | GUARD | A50001 -- | |
| 17 | 01010-82045 | BOLT | A50001 -- | |
| 18 | 01643-32060 | WASHER | A50001 -- |
