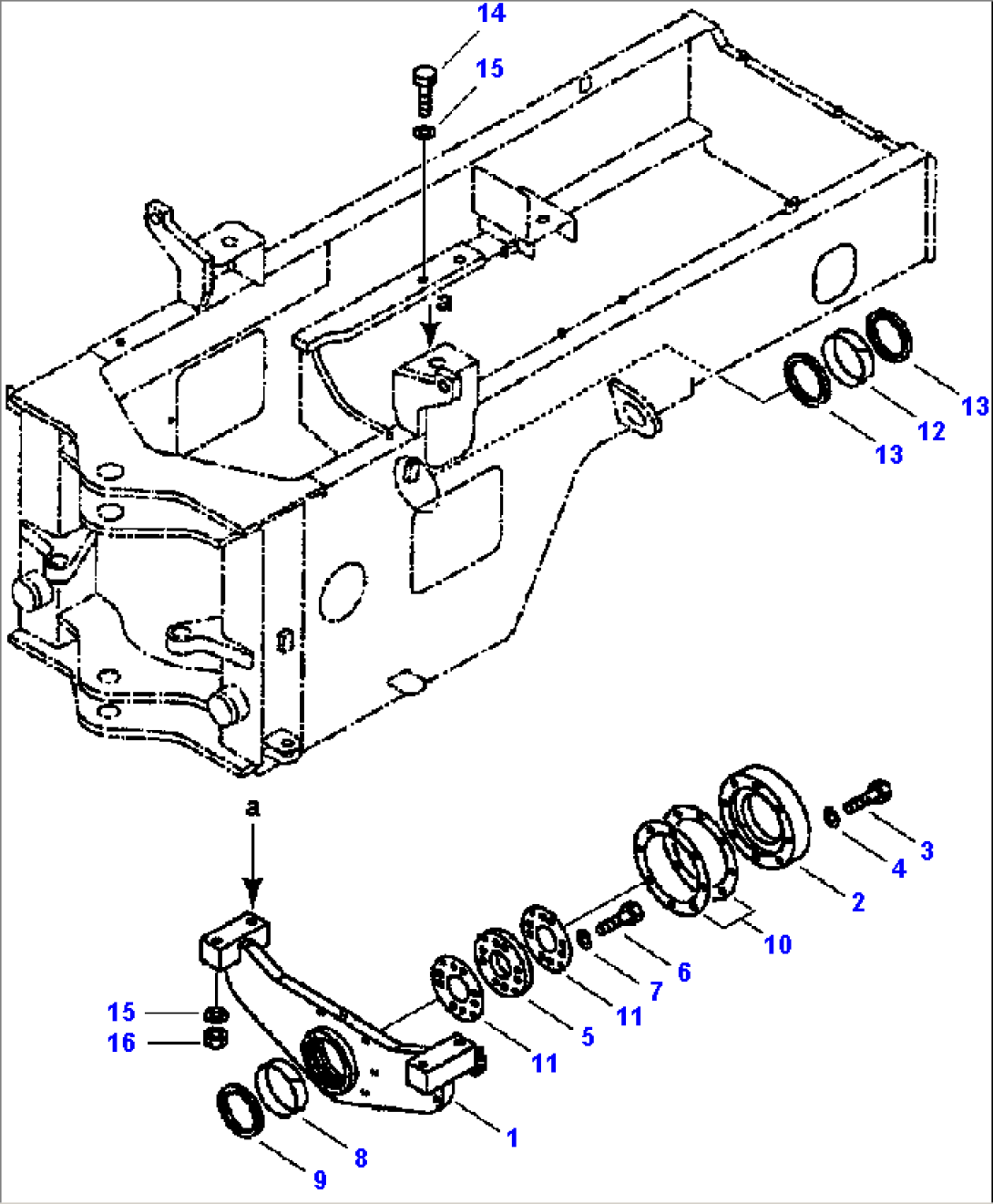

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-46-27310 | SUPPORT, REAR | A70001-UP- | |
| 2 | 418-46-12131 | COVER | A70001-UP- | |
| 3 | 01010-61265 | BOLT | A70001-UP- | |
| 4 | 01643-31232 | WASHER | A70001-UP- | |
| 5 | 418-46-12141 | PLATE, THRUST | A70001-UP- | |
| 6 | 01010-61250 | BOLT | A70001-UP- | |
| 7 | 01643-31232 | WASHER | A70001-UP- | |
| 8 | 418-46-12150 | BUSHING | A70001-UP- | |
| 9 | 421-46-15132 | PACKING | A70001-UP- | |
| 10 | 418-46-12160 | SHIM - 0.008 IN. (0.20 MM) | A70001-UP- | |
| 11 | 418-46-17120 | WASHER, THRUST | A70001-UP- | |
| 12 | 418-46-17110 | PACKING | A70001-UP- | |
| 13 | 421-46-15132 | PACKING | A70001-UP- | |
| 14 | 01011-62440 | BOLT | A70001-UP- | |
| 15 | 01643-32460 | WASHER | A70001-UP- | |
| 16 | 01580-02419 | NUT | A70001-UP- |
