| Item | Part No. | Part Name | Qty | Serial No. |

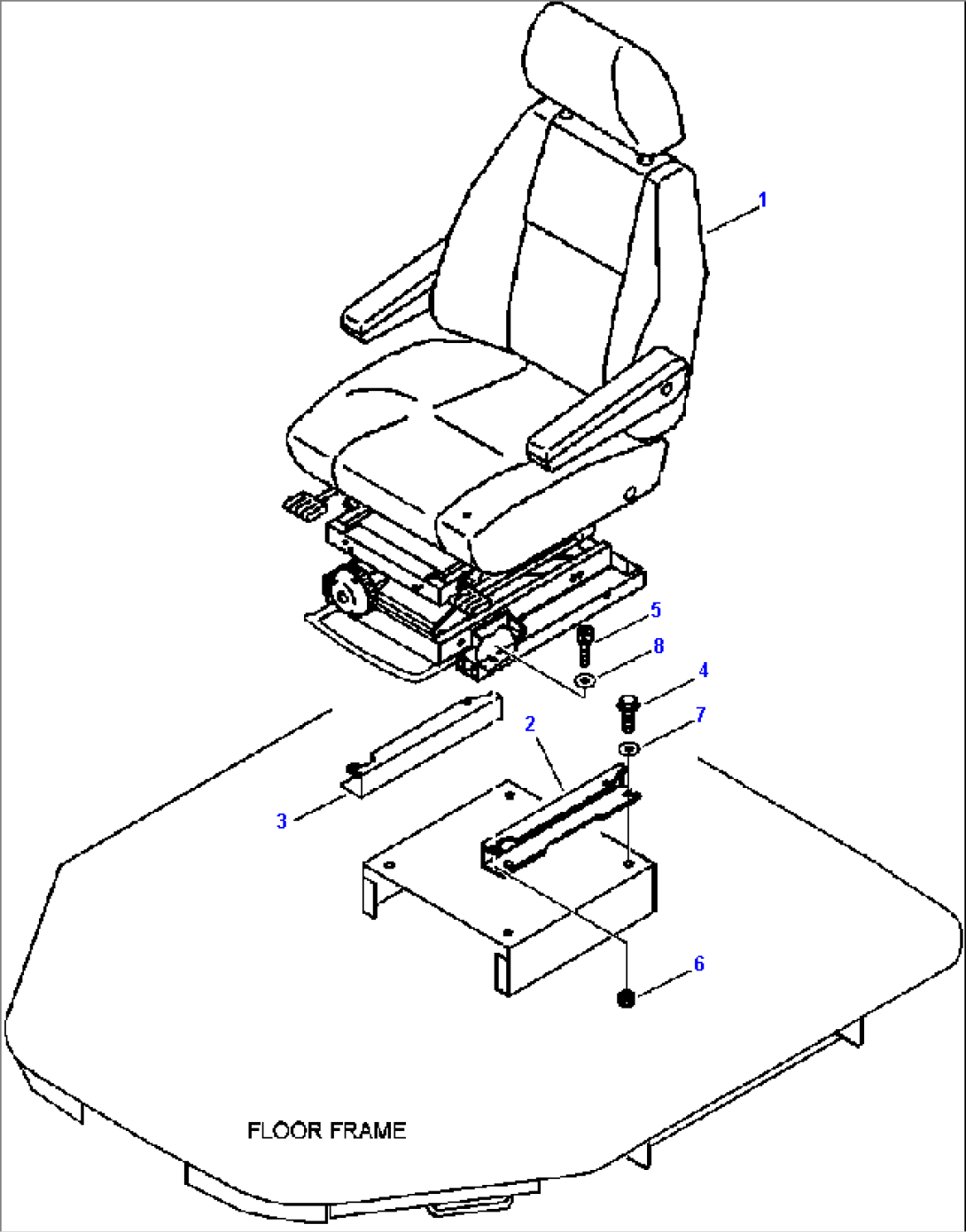

| OPERATOR'S SEAT ASSEMBLY(SEE FIG. K0110-01A0) | A80001-UP- | |||
| 1 | SEAT ASSEMBLY (SEE FIG. K0110-01A0) | A80001-UP- | ||
| 2 | 423-962-2111 | BRACKET, L.H. | A80001-UP- | |
| 3 | 423-960-2121 | BRACKET, R.H. | A80001-UP- | |
| 4 | 01435-01225 | BOLT | A80001-UP- | |
| 5 | 01252-40820 | BOLT | A80001-UP- | |
| 6 | 01584-00806 | NUT | A80001-UP- | |
| 7 | 01641-20812 | WASHER | A80001-UP- | |
| 8 | 01643-30823 | WASHER | A80001-UP- |
