| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09409-70000 | BELT, LAP | A10001-- | |
| 2 | 56B-57-11310 | BRACKET | A10001-- | |
| 3 | 01010-81230 | BOLT | A10001-- | |
| 4 | 01580-11210 | NUT | A10001-- | |
| 5 | 01643-31232 | WASHER | A10001-- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 1l s/n a10001 up
- Operator's compartment and control system
- Fig. k0170 01a0 auxiliary seat seat belt
Поиск по каталогу

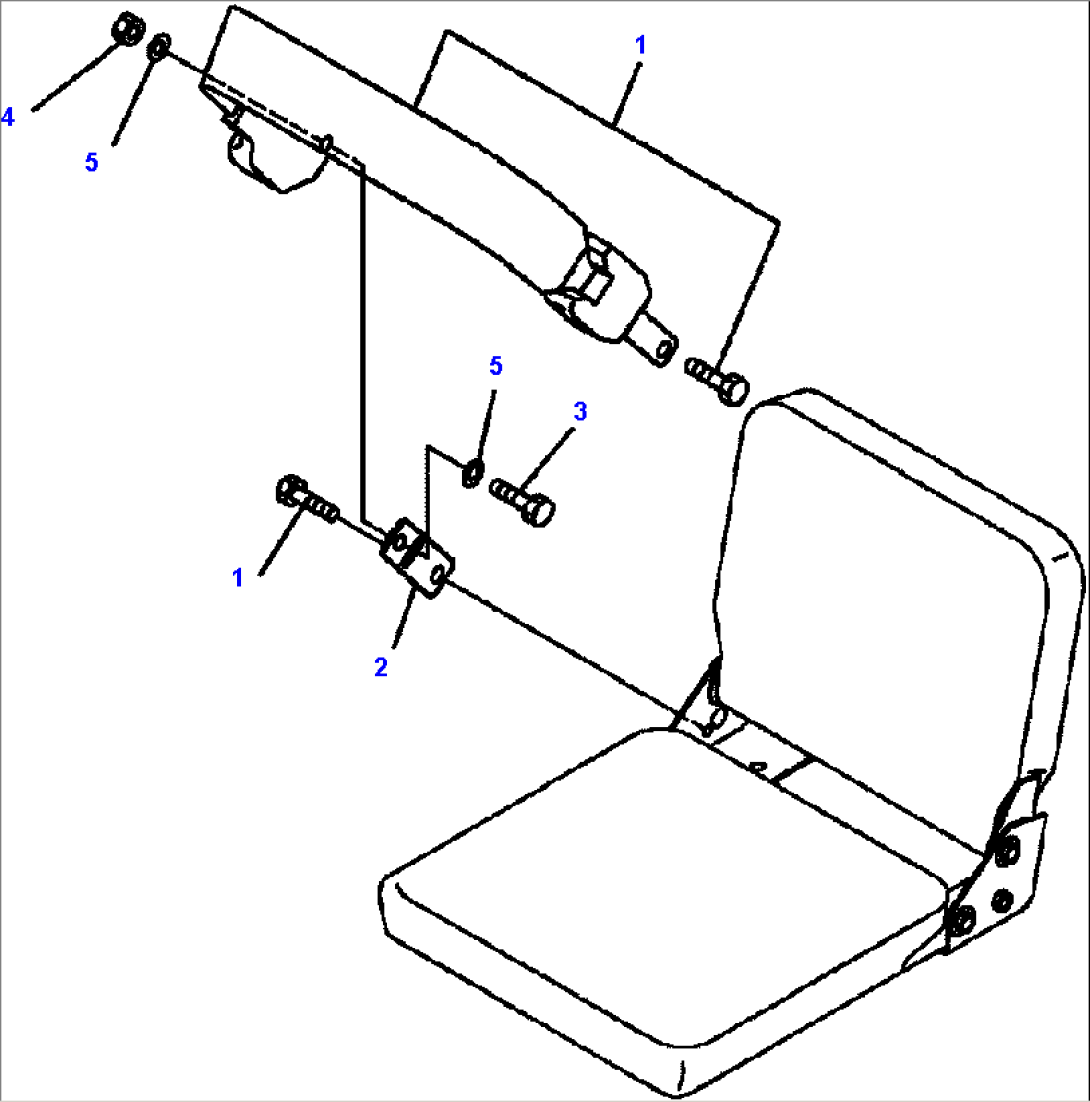

FIG. K0170-01A0 AUXILIARY SEAT - SEAT BELT
