| Item | Part No. | Part Name | Qty | Serial No. |

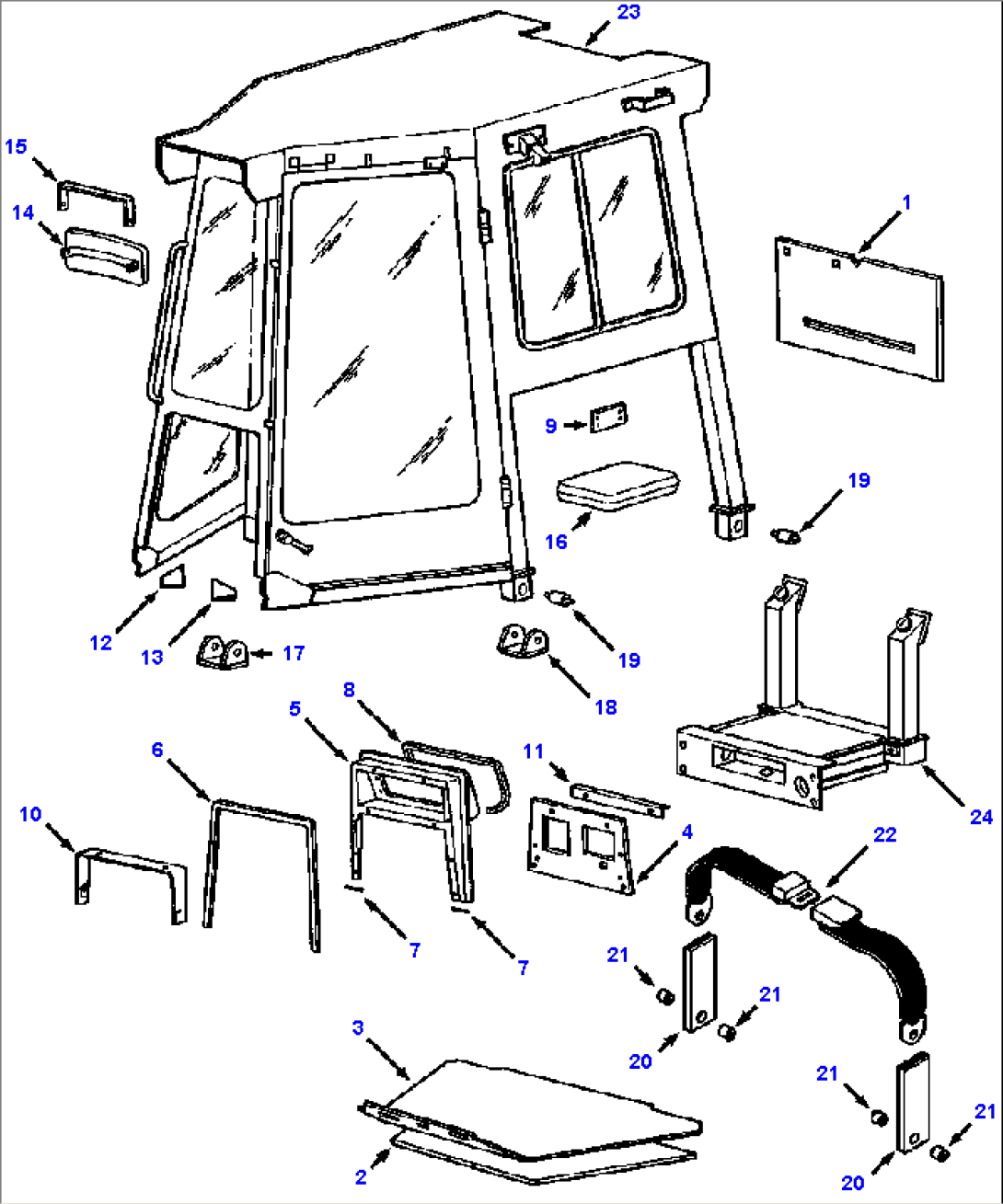

| 1309 714 H91 | CAB AND ACCESSORIES | | P076093-- |
| 1 | 1304 392 H1 | INSULATION, REAR | | P076093-- |
| 2 | 1300 559 H1 | UNDERLAYMENT, FLOOR | | P076093-- |
| 3 | 1304 439 H1 | FLOORMAT, FLOOR | | P076093-- |
| 4 | 1304 440 H1 | FLOORMAT, FIREWALL | | P076093-- |
| 31 006 R1 | SCREW, PAN HEAD - M6x16 | | P076093-- |
| 1309 381 H1 | WASHER, FLAT | | P076093-- |
| 1304 446 H91 | DASH COWL GUARD ASSEMBLY | | P076093-- |
| 5 | (NSS) | WELDMENT, DASH | | P076093-- |
| 6 | 1299 714 H2 | SEAL, TOP | | P076093-- |
| 7 | 1299 716 H1 | SEAL, BOTTOM | | P076093-- |
| 8 | | TRIM, EDGE - 3.8 FT. | | P076093-- |
| 24 840 R1 | BOLT, HEX HEAD - 3/8NCX1 | | P076093-- |
| 25 534 R1 | WASHER, FLAT - 3/8 | | P076093-- |
| 9 | 1300 638 H1 | PLATE, PIN | | P076093-- |
| 1309 447 H1 | PIN, GROOVE | | P076093-- |
| 10 | 1304 407 H91 | GUARD, OUTER | | P076093-- |
| 24 840 R1 | BOLT, HEX HEAD - 3/8NCX1 | | P076093-- |
| 25 534 R1 | WASHER, FLAT - 3/8 | | P076093-- |
| 11 | 1309 363 H1 | ANGLE, DASH | | P076093-- |
| 31 006 R1 | SCREW, PAN HEAD - M6x16 | | P076093-- |
| 1309 381 H1 | WASHER, FLAT | | P076093-- |
| 12 | 1304 189 H2 | GASKET, RIGHT | | P076093-- |
| 13 | 1304 190 H2 | GASKET, LEFT | | P076093-- |
| 14 | 1171 831 C1 | MIRROR, REAR VIEW | | P076093-- |
| 465 567 R1 | BOLT, CARRIAGE - 1/2NCx1-1/2 | | P076093-- |
| 25 546 R1 | WASHER, FLAT - 1/2 | | P076093-- |
| 9412 230 | NUT, LOCK - 1/2NC | | P076093-- |
| 15 | 1309 251 H1 | CHANNEL, MIRROR | | P076093-- |
| 30 002 R1 | BOLT, HEX HEAD - M8x20 | | P076093-- |
| 25 533 R1 | WASHER, FLAT - 5/16 | | P076093-- |
| 16 | | CASE, MANUAL (SEE FIG. K0210-02A0) | | P076093-- |
| 17 | 1304 110 H91 | BRACKET, RIGHT MOUNTING | | P076093-- |
| 1300 616 H1 | BLOCK, RETAINER STOP | | P076093-- |
| 18 | 1304 111 H91 | BRACKET, LEFT MOUNTING | | P076093-- |
| 19 | 195-978-1311 | ISOLATOR, MOUNTING | | P076093-- |
| 25 996 R1 | BOLT, HEX HEAD - 1NCx6 | | P076093-- |
| 25 550 R1 | WASHER, FLAT - 1 | | P076093-- |
| 9413 986 | NUT, LOCK - 1NC | | P076093-- |
| 1300 600 H1 | BLOCK, THREADED | | P076093-- |
| 20 | 1287 385 H1 | SLEEVE, EXTRUDED | | P076093-- |
| 21 | 610 395 R1 | SPACER, PIPE | | P076093-- |
| 22 | 636 888 C3 | BELT, SEAT | | P076093-- |
| 24 864 R1 | BOLT, MOUNTING - 1/2NCx2 | | P076093-- |
| 25 555 R1 | WASHER, FLAT - 1/2 | | P076093-- |
| 9412 230 | NUT, LOCK - 1/2NC | | P076093-- |
| 23 | | CAB, ROPS (SEE FIG. K0210-03A0) | | P076093-- |
| 24 | | HEATER, CAB (SEE FIG. K0710-01A0) | | P076093-- |
| 1262 660 H1 | TRIM, BULK EDGE | | P076093-- |
| | | | |
| | F1 PART NUMBER IS A NONSERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS. | | |
| | | | |
| | | | |
| | F2 - CUT REQUIRED LENGTH FROM BULK EDGE TRIM 1262 660 H1. | | |
| | | | |
| | | | |
| | F3 - USE FOR SEAT WITHOUT SEAT BELT RETRACTOR. | | |
| | | | |
