| Item | Part No. | Part Name | Qty | Serial No. |
| CAB ASSEMBLY (SEE FIG. K0210-01A0) | ||||
| 1 | 421-56-21520 | WIPER MOTOR ASSEMBLY | ||
| 2 | 01435-00616 | BOLT | ||
| 3 | 421-56-21540 | ARM, WIPER | ||
| 4 | 425-54-15250 | BLADE, WIPER | ||
| 425-56-21220 | RUBBER BLADE | |||
| 5 | 08053-01510 | CLIP | ||
| 6 | 01435-01016 | BOLT |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa700 3l s/n a50001 up
- Operator's compartment and control system
- Fig. k0210 05a1 operator's cab front wiper
Поиск по каталогу

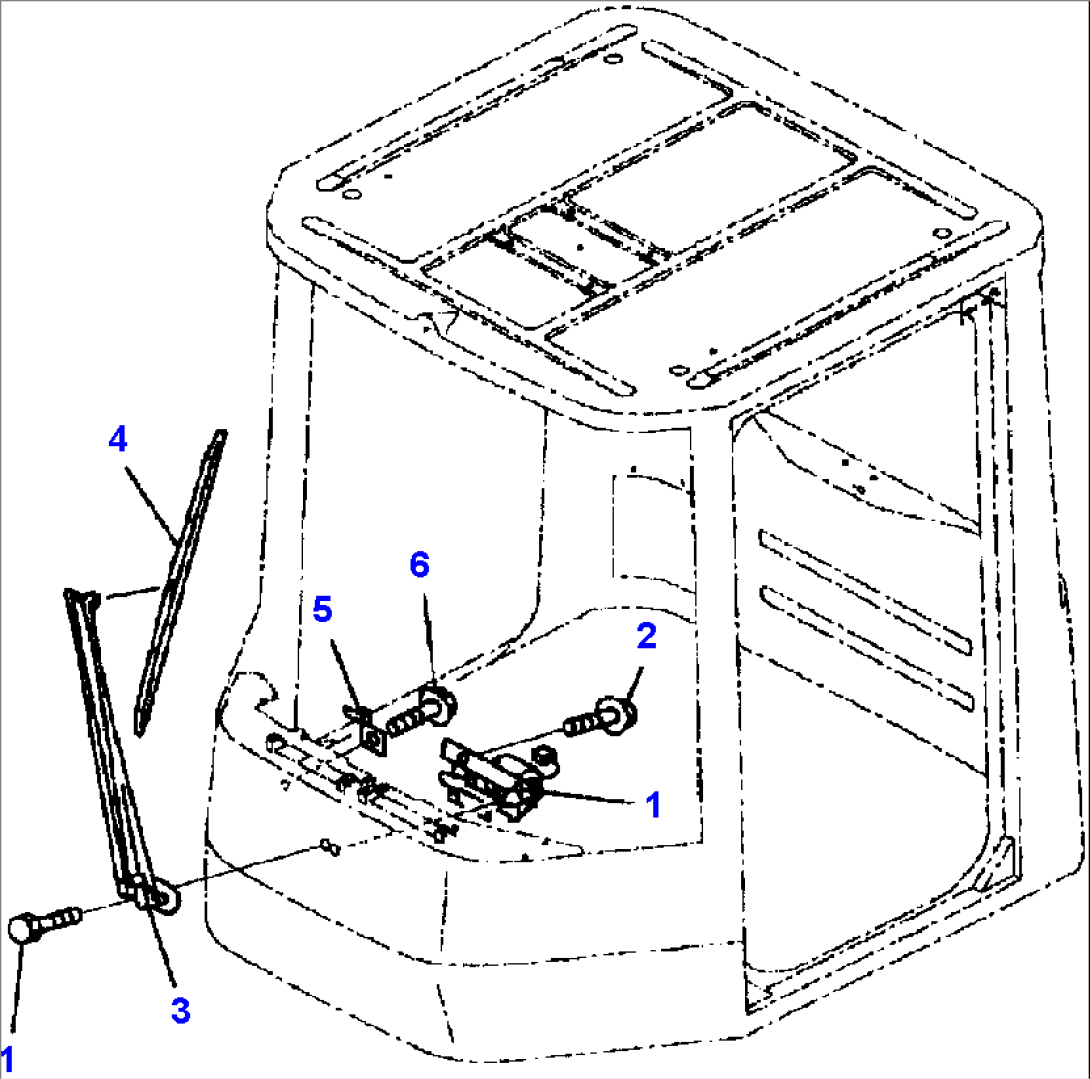

FIG. K0210-05A1 OPERATOR'S CAB - FRONT WIPER
