| Item | Part No. | Part Name | Qty | Serial No. |

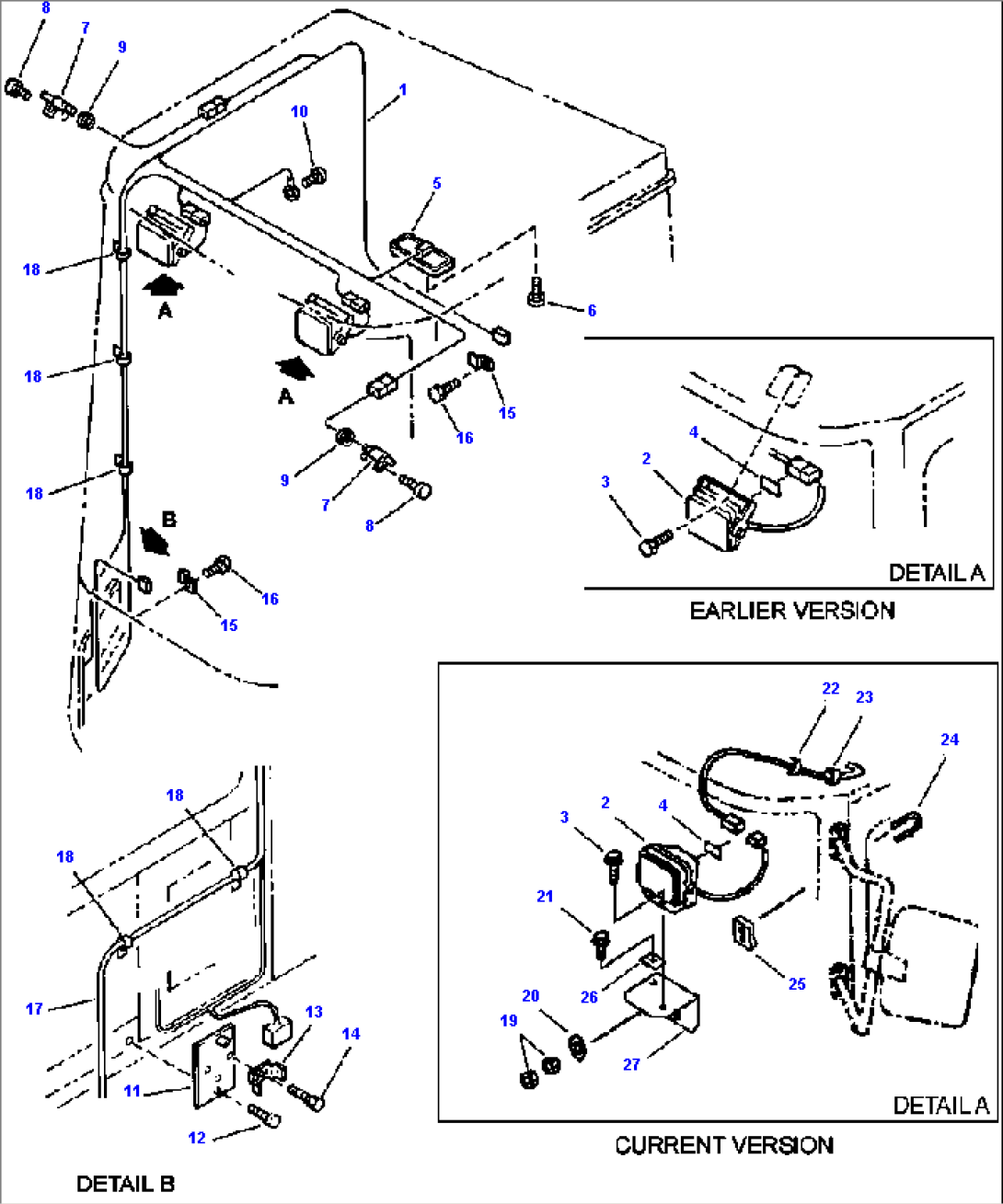

| CAB ASSEMBLY, ROPS (SEE FIG. K0210-10A0) | A30001-UP- | |||
| 1 | 421-56-21651 | HARNESS, ROPS CAB | A30001-UP- | |
| 2 | 421-06-23360 | LIGHT, WORK - CAB MOUNTED | A30001-UP- | |
| 421-06-23330 | BULB, 70 W | A30001-UP- | ||
| 421-06-23320 | LENS | A30001-UP- | ||
| 08056-00271 | CONNECTOR | A30001-UP- | ||
| 3 | 01435-01220 | BOLT | A30001-UP- | |
| 4 | 421-56-21680 | FASTENER | A30001-UP- | |
| 5 | 421-06-26210 | LIGHT, DOME | A30001-UP- | |
| 08116-02410 | BULB, 10 W | A30001-UP- | ||
| 421-06-26250 | LENS | A30001-UP- | ||
| 6 | 01023-70516 | SCREW | A30001-UP- | |
| 7 | 421-56-21730 | SWITCH, DOOR | A30001-UP- | |
| 8 | 01220-70512 | SCREW | A30001-UP- | |
| 9 | 423-926-A030 | GROMMET | A30001-UP- | |
| 10 | 01023-60510 | SCREW | A30001-UP- | |
| 11 | 421-56-21660 | BRACKET | A30001-UP- | |
| 12 | 421-09-21410 | SCREW | A30001-UP- | |
| 13 | 08053-15010 | CLIP | A30001-UP- | |
| 14 | 01435-01016 | BOLT | A30001-UP- | |
| 15 | 08053-01512 | CLIP | A30001-UP- | |
| 16 | 01435-01016 | BOLT | A30001-UP- | |
| 17 | 423-926-A080 | HOSE, WASHER | A30001-UP- | |
| 18 | 421-54-15520 | CLIP | A30001-UP- | |
| 19 | 01597-01009 | NUT | A30001-UP- | |
| 20 | 01643-31032 | WASHER | A30001-UP- | |
| 21 | 01435-01020 | BOLT | A30001-UP- | |
| 22 | 421-54-15520 | CLIP | A30001-UP- | |
| 23 | 09415-01008 | GROMMET | A30001-UP- | |
| 24 | 07283-32746 | U-BOLT | A30001-UP- | |
| 25 | 07283-52737 | SEAT | A30001-UP- | |
| 26 | 08053-01510 | CLIP | A30001-UP- | |
| 27 | 425-56-21110 | BRACKET, R.H. | A30001-UP- | |
| 425-56-21120 | BRACKET, L.H. | A30001-UP- | ||
| F1 - WHEN REPLACED BY ROPS CAB HARNESS P/N 419-926-A840, REAR WIPERHARNESS P/N 423-926-A240 AND FRONT WIPER HARNESS P/N 423-926-A190ARE NO LONGER REQUIRED. | ||||
