| Item | Part No. | Part Name | Qty | Serial No. |

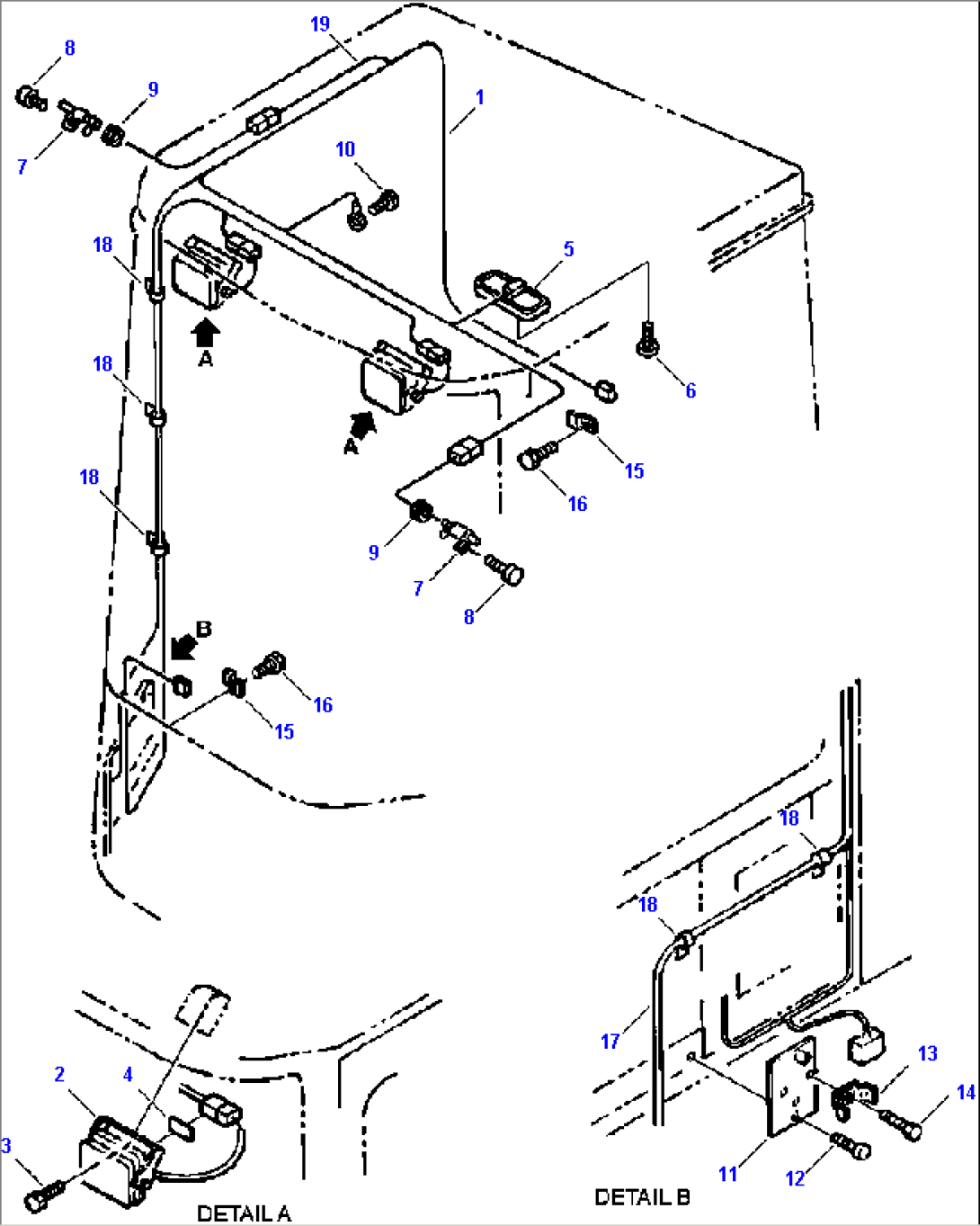

| ROPS CAB (SEE FIG. K0210-01A0) | A80001-UP- | |||
| 1 | 421-56-21651 | HARNESS, CAB | A80001-UP- | |
| 2 | 421-06-23360 | LIGHT ASSEMBLY, WORK | A80001-UP- | |
| 421-06-23330 | BULB, 70 W | A80001-UP- | ||
| 421-06-23320 | LENS | A80001-UP- | ||
| 08056-00271 | CONNECTOR | A80001-UP- | ||
| 3 | 01435-01220 | BOLT | A80001-UP- | |
| 4 | 421-56-21680 | FASTENER | A80001-UP- | |
| 5 | 421-06-26210 | LIGHT ASSEMBLY, DOME | A80001-UP- | |
| 08116-02410 | BULB, 10 W | A80001-UP- | ||
| 421-06-26250 | LENS | A80001-UP- | ||
| 6 | 01023-70512 | SCREW | A80001-UP- | |
| 7 | 421-56-21730 | SWITCH, DOOR | A80001-UP- | |
| 8 | 01220-70512 | SCREW | A80001-UP- | |
| 9 | 423-926-A030 | GROMMET | A80001-UP- | |
| 10 | 01023-60510 | SCREW | A80001-UP- | |
| 11 | 421-56-21660 | BRACKET | A80001-UP- | |
| 12 | 421-09-21410 | SCREW | A80001-UP- | |
| 13 | 08053-15010 | CLIP | A80001-UP- | |
| 14 | 01435-01016 | BOLT | A80001-UP- | |
| 15 | 08053-01510 | CLIP | A80001-UP- | |
| 16 | 01435-01016 | BOLT | A80001-UP- | |
| 17 | 423-926-A080 | HOSE, WASHER | A80001-UP- | |
| 18 | 421-54-15520 | CLIP | A80001-UP- | |
| 19 | 417-56-21150 | CABLE | A80001-UP- | |
| F1 - SEE PARTS AND SERVICE NEWS AA99162 WHEN THE WORK LIGHTIS OR HAS TO BE RELOCATED FROM THE INSIDE OF THE CAB TOTHE OUTSIDE OF THE CAB. | ||||
