| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01010-81275 | BOLT | A85001-- | |
| 2 | 01643-31232 | WASHER | A85001-- | |
| 3 | 01580-11613 | NUT | A85001-- | |
| 4 | 01643-31645 | WASHER | A85001-- | |
| 5 | 01010-81230 | BOLT | A85001-- | |
| 6 | 01643-31232 | WASHER | A85001-- | |
| 7 | 20Y-54-13480 | PLUG | A85001-- |
- Главная
- Каталог запчастей
- Гусеничные экскаваторы
- Pc400lc 6lm/pc400hd 6lm s/n a85001 up
- Operator's compartment and control system
- Fig. k0210 14b5 operator cab installation parts
Поиск по каталогу

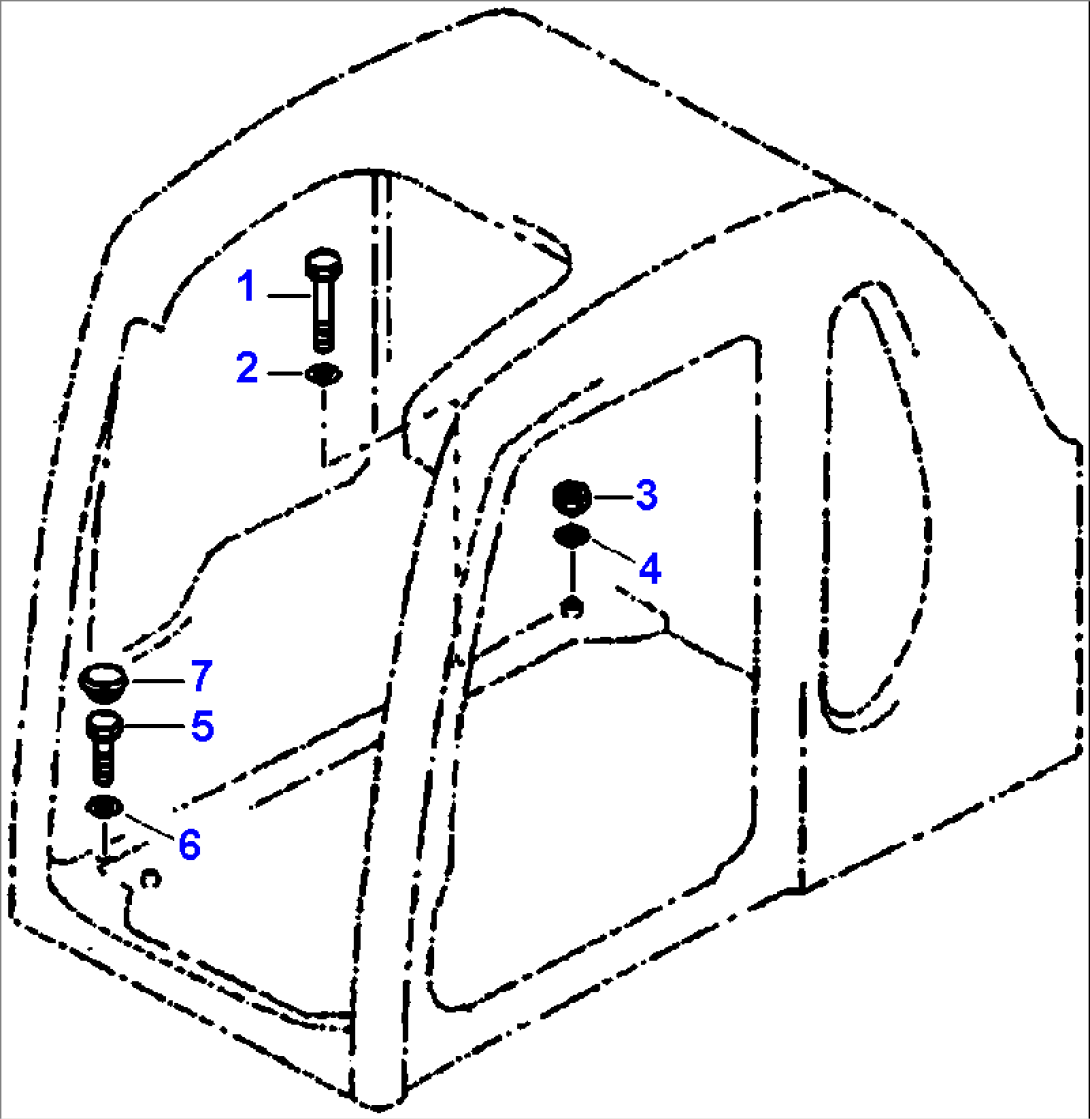

FIG. K0210-14B5 OPERATOR CAB - INSTALLATION PARTS
