| Item | Part No. | Part Name | Qty | Serial No. |
| CAB ASSEMBLY (SEE FIG. K0210-01A0) | A81001-UP- | |||
| 1 | 421-926-2540 | SEAL | A81001-UP- | |
| 2 | 421-926-2550 | SEAL | A81001-UP- | |
| 3 | 421-926-2530 | VENT, FRESH AIR | A81001-UP- | |
| 01434-00625 | SCREW | A81001-UP- | ||
| 01642-20608 | WASHER | A81001-UP- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa180 3mc s/n a81001 up
- Operator's compartment and control system
- Fig. k0210 23a0 operator's cab fresh air vent
Поиск по каталогу

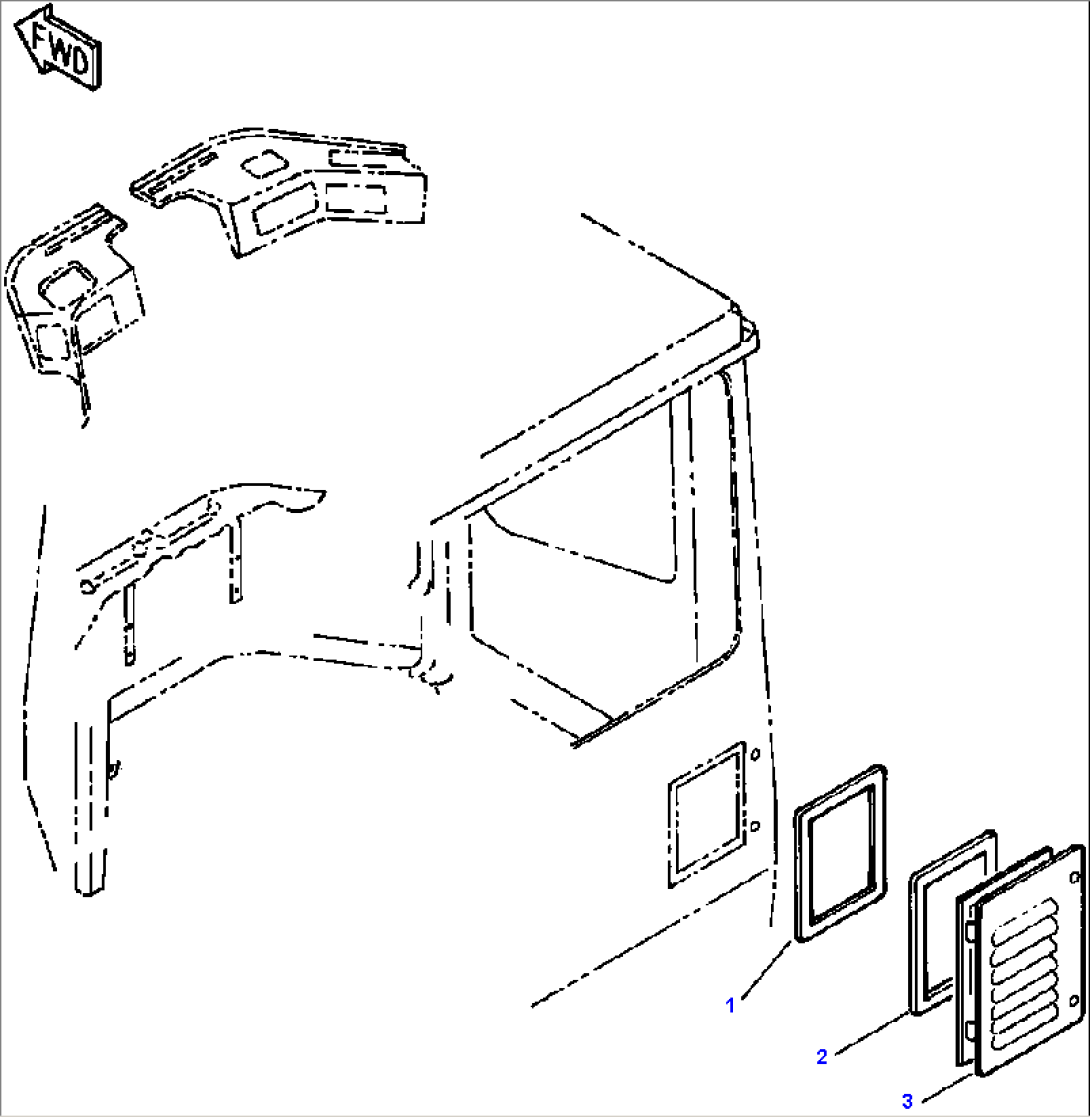

FIG. K0210-23A0 OPERATOR'S CAB - FRESH AIR VENT
