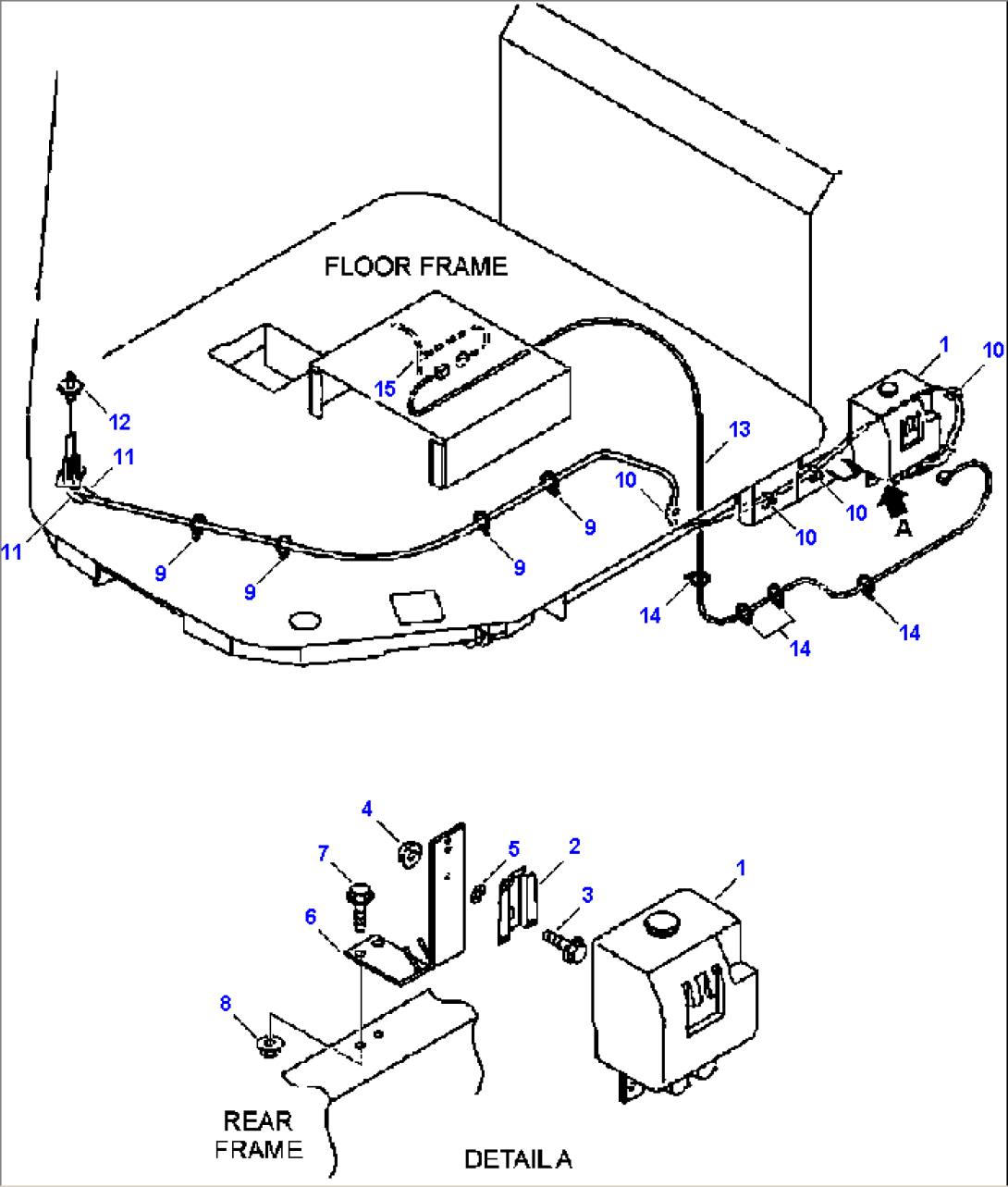

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-947-1100 | TANK ASSEMBLY, WASHER | A80001-UP- | |
| 423-947-1110 | PUMP | A80001-UP- | ||
| 423-947-1120 | TANK | A80001-UP- | ||
| 2 | 421-07-15170 | BRACKET | A80001-UP- | |
| 3 | 01435-00616 | BOLT | A80001-UP- | |
| 4 | 01584-00605 | NUT | A80001-UP- | |
| 5 | 01643-30623 | WASHER | A80001-UP- | |
| 6 | 416-07-26111 | PLATE | A80001-UP- | |
| 7 | 04135-01030 | BOLT | A80001-UP- | |
| 8 | 01584-01008 | NUT | A80001-UP- | |
| 9 | 08034-20519 | BAND | A80001-UP- | |
| 10 | 421-54-15520 | CLIP | A80001-UP- | |
| 11 | 417-07-A1110 | HOSE | A80001-UP- | |
| 12 | 421-07-15110 | JOINT | A80001-UP- | |
| 13 | 417-07-26190 | WIRING HARNESS | A80001-UP- | |
| 14 | 08034-20519 | BAND | A80001-UP- | |
| 15 | 417-07-26120 | WIRING HARNESS (SEE FIG. K4290-01A0) | A80001-UP- |
