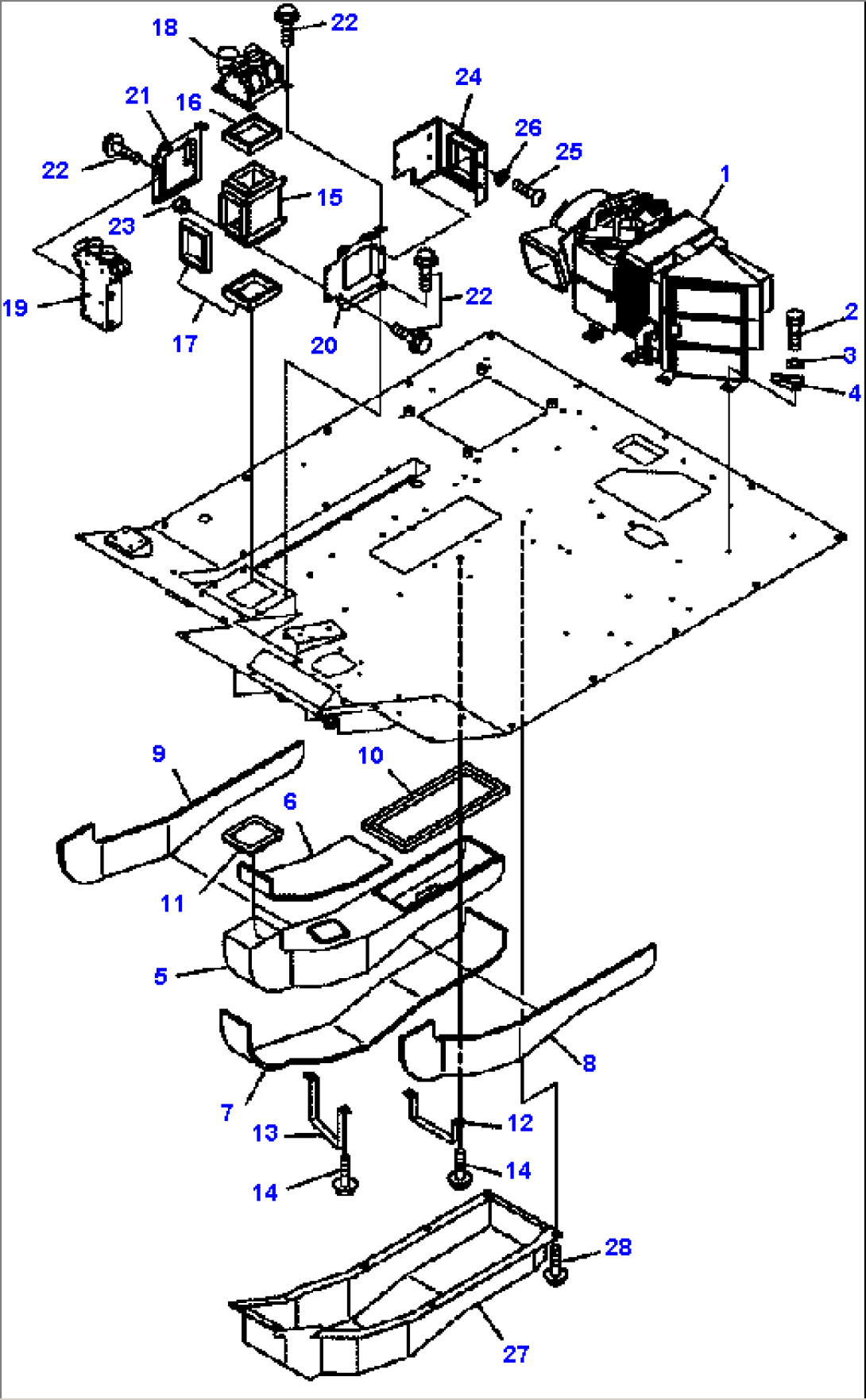

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 567-07-73412 | AIR CONDITIONER UNIT | A10001-- | |
| 567-07-73501 | UNIT, COOLING | A10001-- | ||
| 567-07-73600 | BLOWER | A10001-- | ||
| 567-07-73700 | BOX SUB-ASSEMBLY | A10001-- | ||
| 2 | 01010-81016 | BOLT | A10001-- | |
| 3 | 01643-31032 | WASHER | A10001-- | |
| 4 | 56B-07-12371 | GUIDE | A10001-- | |
| 56B-07-12150 | DUCT ASSEMBLY | A10001-- | ||
| 5 | 56B-07-12160 | DUCT | A10001-- | |
| 6 | 56B-07-12170 | SHEET | A10001-- | |
| 7 | 56B-07-12180 | SHEET | A10001-- | |
| 8 | 56B-07-12190 | SHEET | A10001-- | |
| 9 | 56B-07-12210 | SHEET | A10001-- | |
| 10 | 56B-07-12220 | SHEET | A10001-- | |
| 11 | 56B-07-12230 | SHEET | A10001-- | |
| 12 | 56B-07-12240 | CLAMP | A10001-- | |
| 13 | 56B-07-12251 | CLAMP | A10001-- | |
| 14 | 01435-01016 | BOLT | A10001-- | |
| 15 | 423-S61-2132 | DUCT AIR | A10001-- | |
| 16 | 569-07-62580 | SHEET | A10001-- | |
| 17 | 569-07-62590 | SHEET | A10001-- | |
| 18 | 56B-07-12263 | DUCT | A10001-- | |
| 19 | 56B-07-12271 | DUCT | A10001-- | |
| 20 | 56B-07-12282 | BRACKET | A10001-- | |
| 21 | 56B-07-12292 | BRACKET | A10001-- | |
| 22 | 01435-00816 | BOLT | A10001-- | |
| 23 | 01580-10806 | NUT | A10001-- | |
| 24 | 56B-07-12361 | COVER | A10001-- | |
| 25 | 01245-00816 | SCREW | A10001-- | |
| 26 | 01642-40810 | WASHER | A10001-- | |
| 27 | 56B-54-16910 | COVER | A10001-- | |
| 28 | 01435-01016 | BOLT | A10001-- |
