| Item | Part No. | Part Name | Qty | Serial No. |

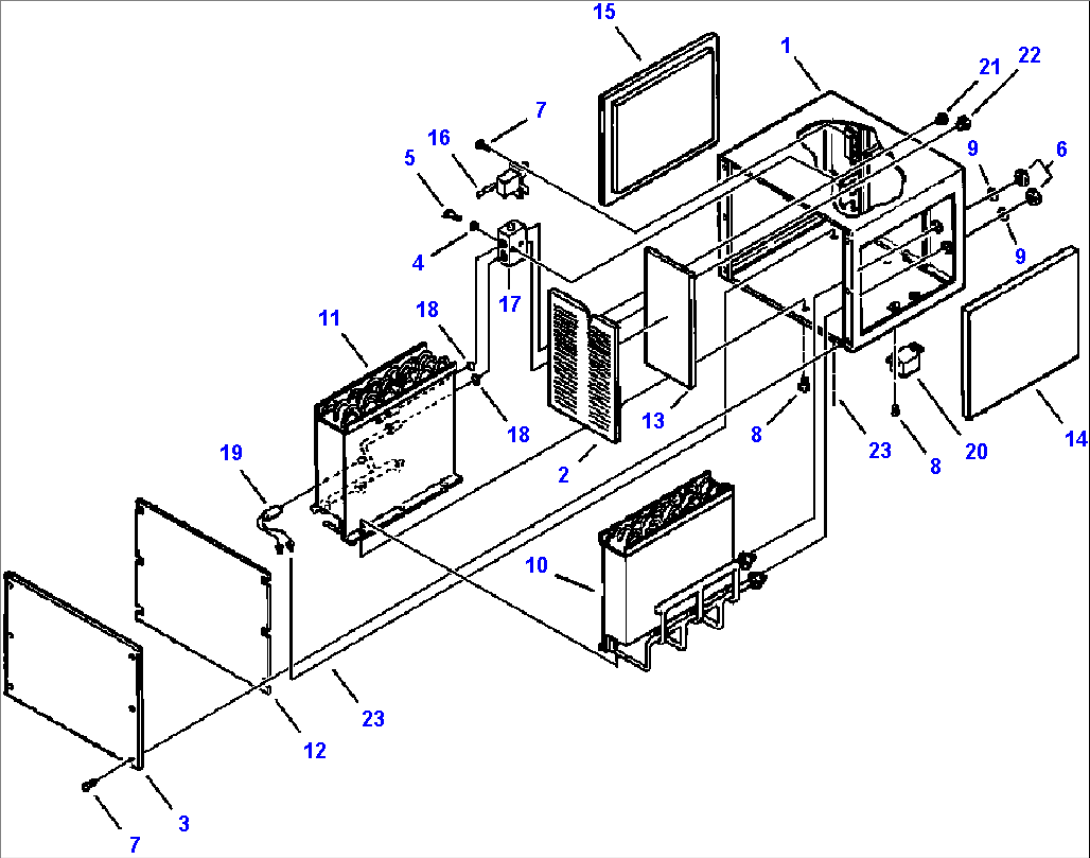

| AIR CONDITIONER KIT(SEE FIG. K0710-01A0) | A70001-UP- | |||
| 419-963-A100 | BOX ASSEMBLY, COIL | A70001-UP- | ||
| 1 | 419-942-A470 | BOX, COIL | A70001-UP- | |
| 2 | 419-942-A420 | BRACKET, COIL | A70001-UP- | |
| 3 | 419-942-A410 | COVER, COIL BOX | A70001-UP- | |
| 419-942-A500 | KIT, HARDWARE | A70001-UP- | ||
| 4 | 416-942-A980 | WASHER, LOCK - 1/4 IN. | A70001-UP- | |
| 5 | (NSS) | BOLT - M6-1.00 | A70001-UP- | |
| 6 | (NSS) | NUT, BULKHEAD | A70001-UP- | |
| 7 | 418-T42-A390 | SCREW - NO. 10 THRU 32 | A70001-UP- | |
| 8 | 418-T42-A470 | SCREW - 1/4 IN. | A70001-UP- | |
| 9 | (NSS) | O-RING | A70001-UP- | |
| 10 | 419-942-A540 | COIL, HEAT | A70001-UP- | |
| 11 | 419-963-AA40 | COIL, EVAPORATOR | A70001-UP- | |
| 419-942-A400 | KIT, FOAM | A70001-UP- | ||
| 12 | (NSS) | FOAM, COIL COVER | A70001-UP- | |
| 13 | (NSS) | FOAM, DRAIN PAN | A70001-UP- | |
| 14 | (NSS) | FOAM, FAN SIDE | A70001-UP- | |
| 15 | (NSS) | FOAM, FILTER SIDE | A70001-UP- | |
| 16 | 425-963-AB50 | SWITCH, THERMOSTAT | A70001-UP- | |
| 17 | 1303 672 H1 | VALVE, EXPANSION | A70001-UP- | |
| 18 | 1434 308 H1 | O-RING | A70001-UP- | |
| 19 | 1432 111 H1 | SWITCH, LOW-PRESSURE | A70001-UP- | |
| 20 | 425-963-AA90 | RELAY, A/C | A70001-UP- | |
| 21 | 416-942-A940 | PLUG | A70001-UP- | |
| 22 | 416-942-A450 | PLUG | A70001-UP- | |
| 23 | 419-963-AA50 | HARNESS, A/C | A70001-UP- | |
| F1 - SEE PARTS AND SERVICE NEWS AA98123 FOR CLEANING INSTRUCTIONS. | ||||
