| Item | Part No. | Part Name | Qty | Serial No. |

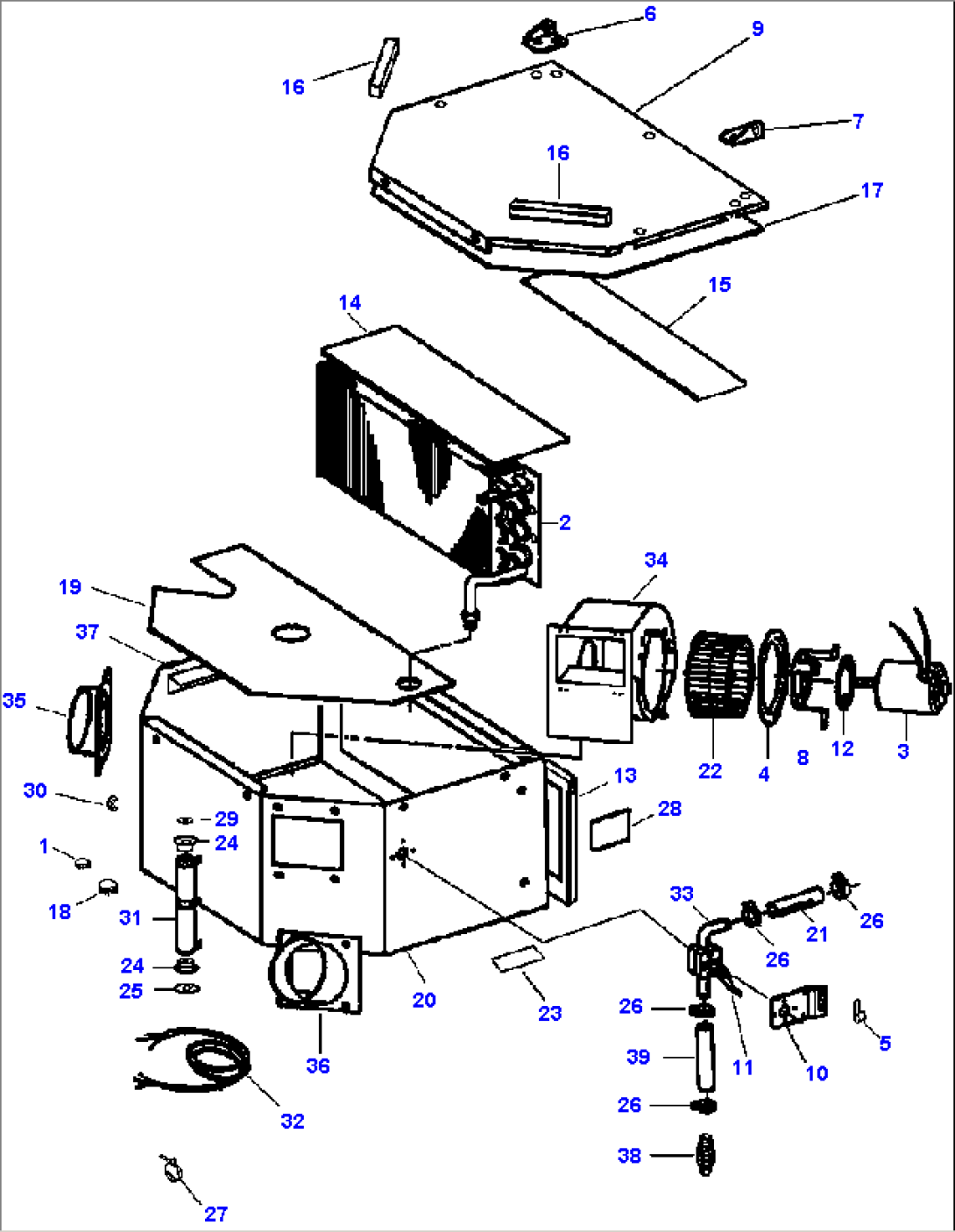

| 1313 781 H92 | ASSEMBLY, HEATER/PRESSURIZER | Ser Num- | ||
| 1 | 432 610 | PLUG, BUTTON | Ser Num- | |
| 2 | 1437 224 H91 | COIL, HEATER | Ser Num- | |
| 1439 635 H1 | SCREW, TORX M6x16 | Ser Num- | ||
| LA 0 729 | NUT, JAM - 7/8-14 | Ser Num- | ||
| 1437 230 H1 | WASHER, LOCK - 7/8 | Ser Num- | ||
| 3 | 1439 699 H1 | MOTOR, BLOWER | Ser Num- | |
| 31 107 R1 | LOCKNUT - M6 | Ser Num- | ||
| 4 | LA 0 692 | RING, ORIFICE | Ser Num- | |
| 1500 083 H1 | LOCKNUT, #10 | Ser Num- | ||
| 5 | 1500 071 H1 | CLIP, CABLE | Ser Num- | |
| 1500 084 H1 | SCREW, HEX SLF TP | Ser Num- | ||
| 6 | 1500 067 H1 | ANGLE, LUG | Ser Num- | |
| 7 | 1500 068 H1 | ANGLE, LUG | Ser Num- | |
| 8 | 1500 074 H1 | BRACKET, MOTOR MOUNTING | Ser Num- | |
| 9 | 1316 361 H1 | PLATE, COVER | Ser Num- | |
| 01010-81015 | BOLT | Ser Num- | ||
| 1314 067 H1 | WASHER, HDN - M10 | Ser Num- | ||
| 10 | 1500 075 H1 | BRACKET, CABLE LEVER | Ser Num- | |
| 1500 087 H1 | SCREW, PAN HD - #8x7/16 | Ser Num- | ||
| 11 | 1500 076 H1 | PLATE, CABLE LEVER | Ser Num- | |
| LA 0 724 | CLIP, COMPRESSION | Ser Num- | ||
| 1500 062 H1 | PUSHNUT, 1/4 | Ser Num- | ||
| 12 | 1270 184 H1 | GASKET | Ser Num- | |
| 13 | 1500 077 H1 | SEAL | Ser Num- | |
| 14 | 1439 622 H1 | GASKET, TOP COIL | Ser Num- | |
| 15 | 1439 623 H1 | GASKET, BOTTOM COIL | Ser Num- | |
| 1500 096 H91 | PLATE, HEATER BLOCK-OFF | Ser Num- | ||
| 16 | 1500 069 H1 | GASKET, SPACER | Ser Num- | |
| 17 | 1500 080 H1 | GASKET, COVER | Ser Num- | |
| 18 | 1500 097 H1 | PLUG, BUTTON | Ser Num- | |
| 19 | 1316 363 H1 | GASKET, BOTTOM | Ser Num- | |
| 20 | 1316 365 H1 | CASE | Ser Num- | |
| 21 | HOSE - 121.9MM(4.8 IN) | Ser Num- | ||
| 22 | 938 514 C1 | BLOWER, WHEEL | Ser Num- | |
| 23 | 1314 055 H1 | DECAL, WATER FLOW | Ser Num- | |
| 24 | 1439 633 H1 | WASHER, CENTERING | Ser Num- | |
| 25 | LA 0 716 | WASHER, RUBBER | Ser Num- | |
| 26 | 1439 634 H1 | CLAMP | Ser Num- | |
| 27 | 08034-20519 | STRAP, TIE | Ser Num- | |
| 28 | LA 0 722 | DECAL, NAMEPLATE | Ser Num- | |
| 29 | 30 325 R1 | WASHER, FLAT - M6 | Ser Num- | |
| 30 | NUT, NYLON - #8-32 | Ser Num- | ||
| 57 227 | WASHER, LOCK - #8 | Ser Num- | ||
| 1439 680 H1 | SCREW, #8-32 | Ser Num- | ||
| 31 | LA 0 738 | RESISTOR | Ser Num- | |
| LA 0 718 | SCREW, 1/4-20x7.5 | Ser Num- | ||
| 32 | 1500 085 H91 | HARNESS, WIRE | Ser Num- | |
| 33 | 1500 090 H91 | VALVE, WATER | Ser Num- | |
| 34 | 1439 691 H91 | HOUSING, BLOWER | Ser Num- | |
| 1439 632 H1 | CLIP, BLOWER WHEEL | Ser Num- | ||
| 35 | 1500 092 H91 | OUTLET, RIGHT AIR | Ser Num- | |
| 1500 086 H1 | SCREW, #10 TAPPING | Ser Num- | ||
| 36 | 1500 093 H91 | OUTLET, LEFT AIR | Ser Num- | |
| 1500 086 H1 | SCREW, #10 TAPPING | Ser Num- | ||
| 37 | 1316 364 H1 | ANGLE | Ser Num- | |
| 38 | 1431 254 H1 | FITTING | Ser Num- | |
| 39 | HOSE - 259.1MM(10.2 IN) | Ser Num- | ||
| F1 MAKE FROM BULK HOSE 364 359 C1. | ||||
