| Item | Part No. | Part Name | Qty | Serial No. |

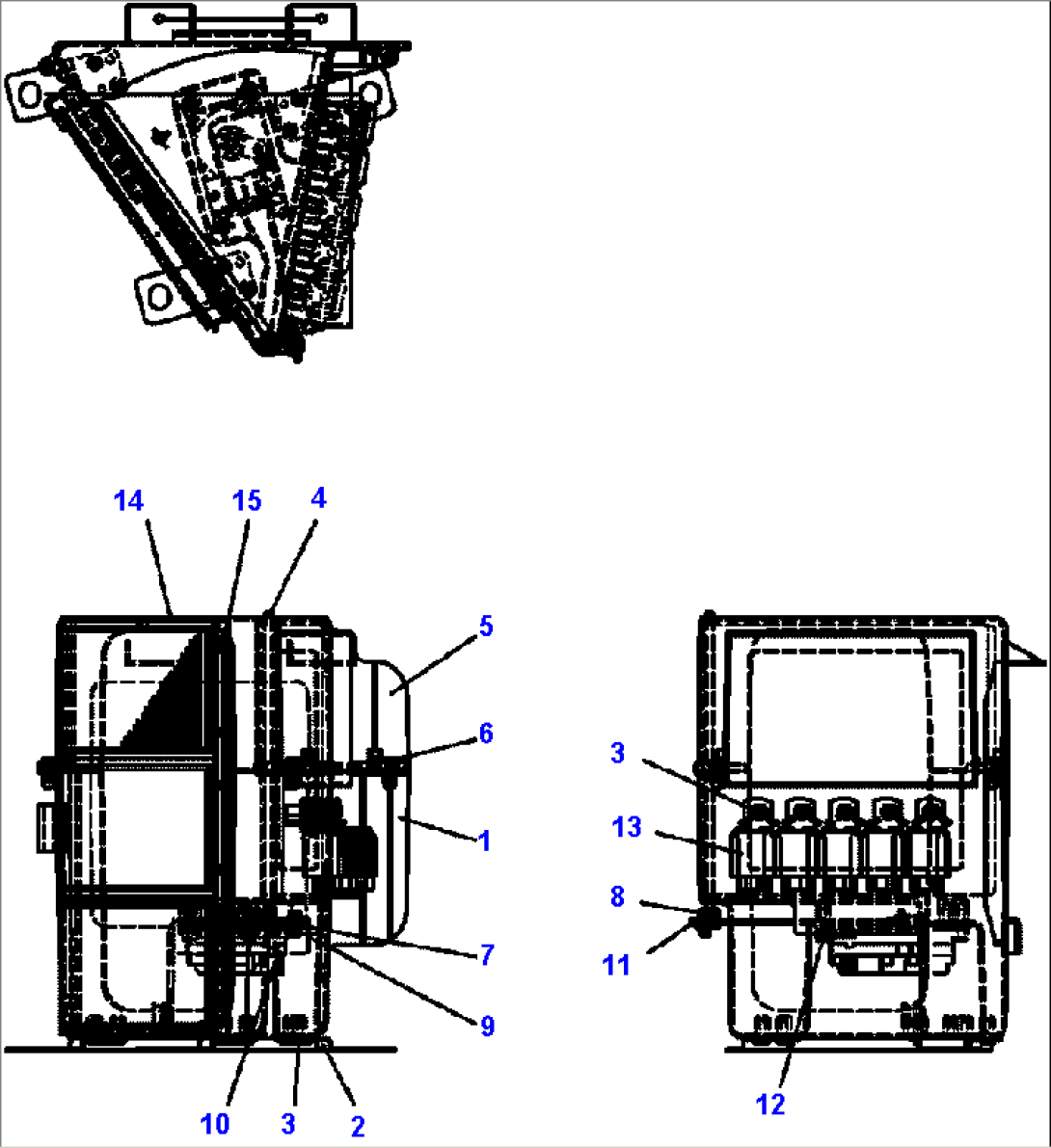

| AIR CONDITIONER (SEE FIG. K0710-01A0) | A10001-- | |||
| BOX SUB ASSEMBLY (SEE FIG. K0710-01A0) | A10001-- | |||
| 1 | ND017321-2971 | CASE | A10001-- | |
| 2 | ND017361-0940 | PARTS, AIR DUCT | A10001-- | |
| 3 | ND90930-05121 | SCREW | A10001-- | |
| 4 | ND116650-6490 | DOOR | A10001-- | |
| 5 | ND017321-2980 | CASE | A10001-- | |
| 6 | ND949001-1730 | SCREW, TAPPING | A10001-- | |
| 7 | ND017732-4610 | LEVER, CONTROL | A10001-- | |
| 8 | ND246690-2930 | CLAMP | A10001-- | |
| 9 | ND91370-03081 | SCREW | A10001-- | |
| 10 | ND063700-6400 | SERVO MOTOR | A10001-- | |
| 11 | ND116662-3840 | SHAFT | A10001-- | |
| 12 | ND90930-05208 | SCREW | A10001-- | |
| 13 | ND056700-8170 | RELAY | A10001-- | |
| 14 | ND146668-2060 | PACKING | A10001-- | |
| 15 | ND014520-0290 | FILTER SUB ASSEMBLY | A10001-- |
