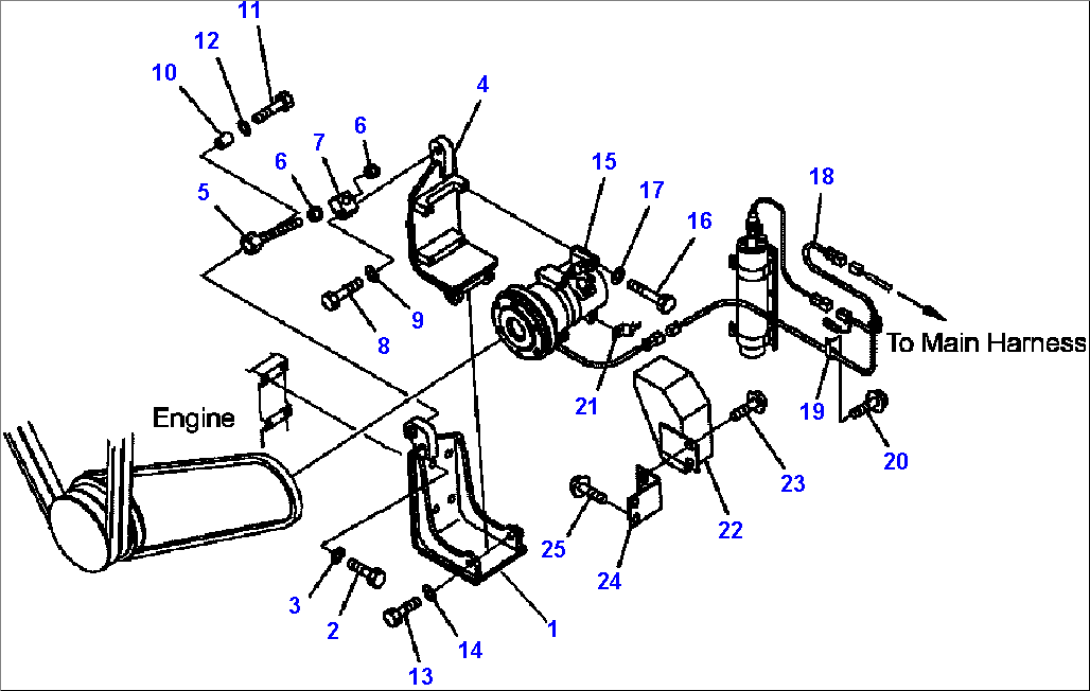

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-07-12764 | BRACKET | A10001-- | |
| 2 | 01010-81230 | BOLT | A10001-- | |
| 3 | 01643-31232 | WASHER | A10001-- | |
| 4 | 56B-07-12774 | BRACKET | A10001-- | |
| 5 | 6240-81-8610 | ROD | A10001-- | |
| 6 | 01580-01613 | NUT | A10001-- | |
| 7 | 6240-81-8670 | PLATE | A10001-- | |
| 8 | 01010-81275 | BOLT | A10001-- | |
| 9 | 01643-31232 | WASHER | A10001-- | |
| 10 | 6215-81-6150 | PIN | A10001-- | |
| 11 | 01010-81275 | BOLT | A10001-- | |
| 12 | 01643-31232 | WASHER | A10001-- | |
| 13 | 125-70-21210 | BOLT | A10001-- | |
| 14 | 01643-31232 | WASHER | A10001-- | |
| 15 | 421-07-31220 | COMPRESSOR | A10001-- | |
| 16 | 01010-80875 | BOLT | A10001-- | |
| 17 | 01643-30823 | WASHER | A10001-- | |
| 18 | 56B-06-11442 | WIRING HARNESS | A10001-- | |
| 19 | 08036-01214 | CLIP | A10001-- | |
| 20 | 01435-01016 | BOLT | A10001-- | |
| 21 | 08193-21012 | CLIP | A10001-- | |
| 22 | 56B-07-12831 | COVER | A10001-- | |
| 23 | 01435-01020 | BOLT | A10001-- | |
| 24 | 56B-07-12840 | BRACKET | A10001-- | |
| 25 | 01435-01016 | BOLT | A10001-- |
