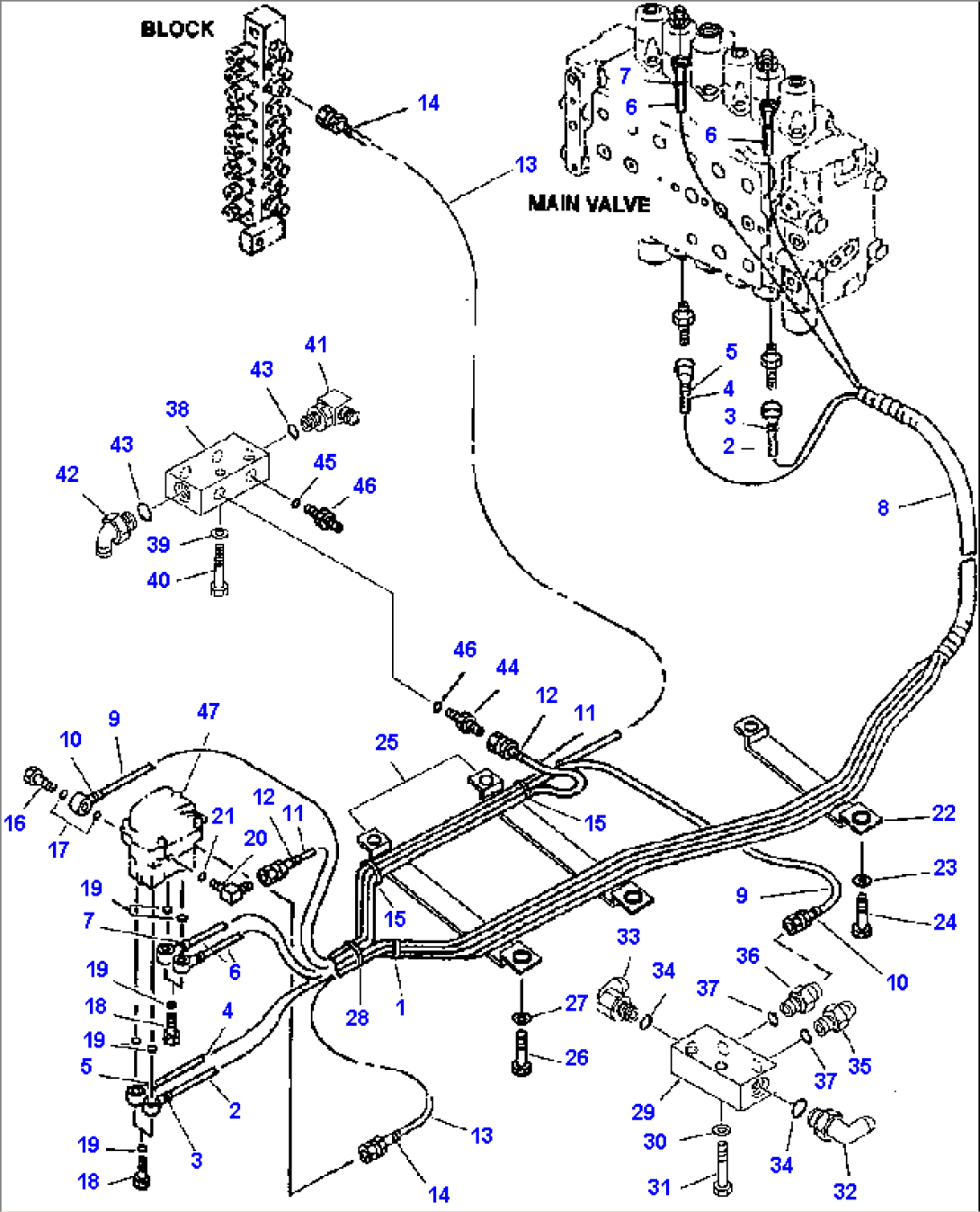

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08034-00536 | BAND | A85001-- | |
| 2 | 206-62-A1620 | HOSE, 7400 MM | A85001-- | |
| 3 | 20Y-62-22790 | BAND, RED | A85001-- | |
| 4 | 206-62-A1610 | HOSE, 7550 MM | A85001-- | |
| 5 | 20Y-62-22850 | BAND, GREEN | A85001-- | |
| 6 | 206-62-A1630 | HOSE, 7750 MM | A85001-- | |
| 7 | 20Y-62-22820 | BAND, BLUE | A85001-- | |
| 8 | 08017-32807 | CONDUIT | A85001-- | |
| 9 | 20Y-62-22872 | HOSE, 1350 MM | A85001-- | |
| 10 | 20Y-62-22790 | BAND, RED | A85001-- | |
| 11 | 203-62-52340 | HOSE, 1000 MM | A85001-- | |
| 12 | 20Y-62-22820 | BAND, BLUE | A85001-- | |
| 13 | 206-62-A1690 | HOSE, 7200 MM | A85001-- | |
| 14 | 20Y-62-22830 | BAND, WHITE | A85001-- | |
| 15 | 08034-00519 | BAND | A85001-- | |
| 16 | 20Y-62-18910 | BOLT, EYE | A85001-- | |
| 17 | 07000-02018 | O-RING | A85001-- | |
| 18 | 20Y-62-18890 | BOLT | A85001-- | |
| 19 | 07000-02015 | O-RING | A85001-- | |
| 20 | 07235-10210 | ELBOW | A85001-- | |
| 21 | 07002-11423 | O-RING | A85001-- | |
| 22 | 20Y-62-27770 | CLAMP | A85001-- | |
| 23 | 01643-31032 | WASHER | A85001-- | |
| 24 | 01010-81020 | BOLT | A85001-- | |
| 25 | 201-62-72570 | CLAMP | A85001-- | |
| 26 | 01010-81016 | BOLT | A85001-- | |
| 27 | 01643-31032 | WASHER | A85001-- | |
| 28 | 08034-00536 | BAND | A85001-- | |
| 29 | 20Y-62-15831 | BLOCK | A85001-- | |
| 30 | 01643-31032 | WASHER | A85001-- | |
| 31 | 01010-81045 | BOLT | A85001-- | |
| 32 | 07235-10311 | ELBOW | A85001-- | |
| 33 | 07235-10210 | ELBOW | A85001-- | |
| 34 | 07002-11423 | O-RING | A85001-- | |
| 35 | 07230-20210 | UNION | A85001-- | |
| 36 | 07230-20210 | UNION | A85001-- | |
| 37 | 07002-11423 | O-RING | A85001-- | |
| 38 | 20Y-62-15831 | BLOCK | A85001-- | |
| 39 | 01643-31032 | WASHER | A85001-- | |
| 40 | 01010-81045 | BOLT | A85001-- | |
| 41 | 07235-10311 | ELBOW | ||
| 42 | 07235-10210 | ELBOW | A85001-- | |
| 43 | 07002-11423 | O-RING | A85001-- | |
| 44 | 07230-20210 | UNION | ||
| 45 | 07002-11423 | O-RING | A85001-- | |
| 46 | 07230-20210 | UNION | A85001-- | |
| 47 | VALVE, PPC (SEE FIG. K1410-01A0) | A85001-- |
