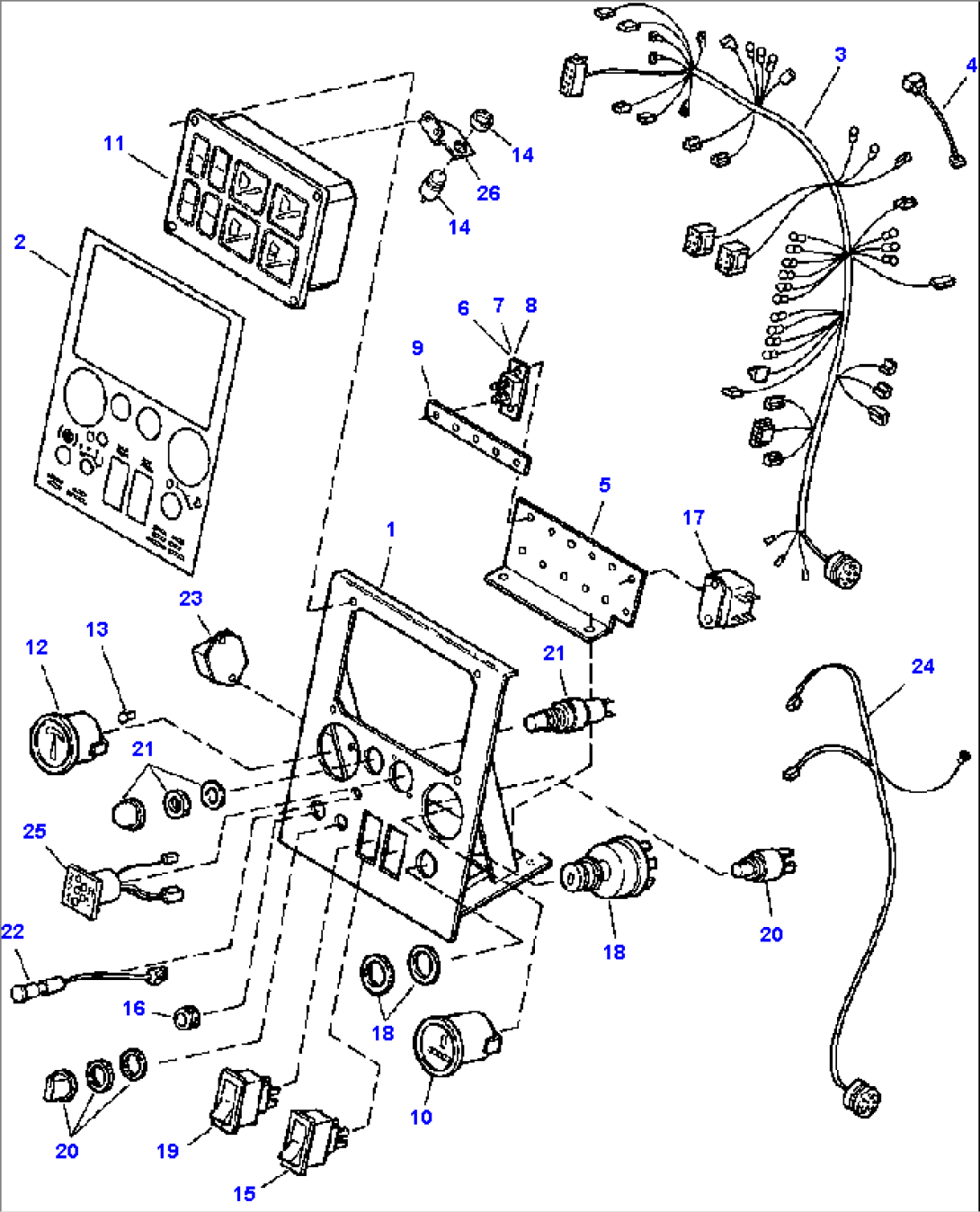

| Item | Part No. | Part Name | Qty | Serial No. |
| 1500 321 H91 | PANEL, INSTRUMENT | Ser Num- | ||
| 1 | 1500 322 H91 | PANEL | Ser Num- | |
| 30 192 R1 | BOLT | Ser Num- | ||
| 30 210 R1 | WASHER | Ser Num- | ||
| 30 208 R1 | NUT | Ser Num- | ||
| 2 | 1315 319 H1 | PROGRAPH | Ser Num- | |
| 3 | 1500 323 H91 | HARNESS | Ser Num- | |
| 4 | 1200 568 H2 | BOARD, DIODE | Ser Num- | |
| 5 | 1500 382 H1 | PANEL, BREAKER | Ser Num- | |
| 436 750 | SCREW | Ser Num- | ||
| 106 497 | WASHER | Ser Num- | ||
| 103 088 | NUT | Ser Num- | ||
| 6 | 706 130 C1 | BREAKER, CIRCUIT (10A) | Ser Num- | |
| 7 | 647 642 C91 | BREAKER, CIRCUIT (6A) | Ser Num- | |
| 8 | 706 142 C1 | BREAKER, CIRCUIT (15A) | Ser Num- | |
| 9 | 1269 776 H1 | BAR, BUSS | Ser Num- | |
| 10 | 1220 651 H2 | HOURMETER | Ser Num- | |
| 11 | CLUSTER, GAUGE (SEE FIG. K2210-03A0) | Ser Num- | ||
| 179 389 | SCREW | Ser Num- | ||
| 12 | 1299 206 H1 | GAUGE, FUEL | Ser Num- | |
| 13 | 20 274 R1 | BULB | Ser Num- | |
| 14 | 1283 060 H1 | ALARM | Ser Num- | |
| 15 | 1299 166 H91 | SWITCH, LIGHT | Ser Num- | |
| 16 | 109 390 | GROMMET | Ser Num- | |
| 17 | 704 523 C1 | RELAY | Ser Num- | |
| 131 954 | SCREW | Ser Num- | ||
| 18 | 08086-10000 | SWITCH, START | Ser Num- | |
| 19 | 1299 166 H91 | SWITCH, LIGHT | Ser Num- | |
| 20 | 14X-06-12190 | SWITCH, PRE-HEAT | Ser Num- | |
| 21 | 1500 349 H1 | LAMP, CAUTION | Ser Num- | |
| 22 | 1315 327 H91 | L.E.D. | Ser Num- | |
| 23 | 423-06-11212 | TIMER | Ser Num- | |
| 24 | 1316 353 H91 | HARNESS, JOYSTICK - INSTRUMENT PANEL | Ser Num- | |
| 25 | 1316 448 H91 | INDICATOR | Ser Num- | |
| 115 997 | NUT | Ser Num- | ||
| 131 044 | WASHER | Ser Num- | ||
| 1316 444 H1 | DECAL | Ser Num- | ||
| 26 | 1316 458 H1 | BRACKET | Ser Num- | |
| 159 287 | SCREW | Ser Num- |
