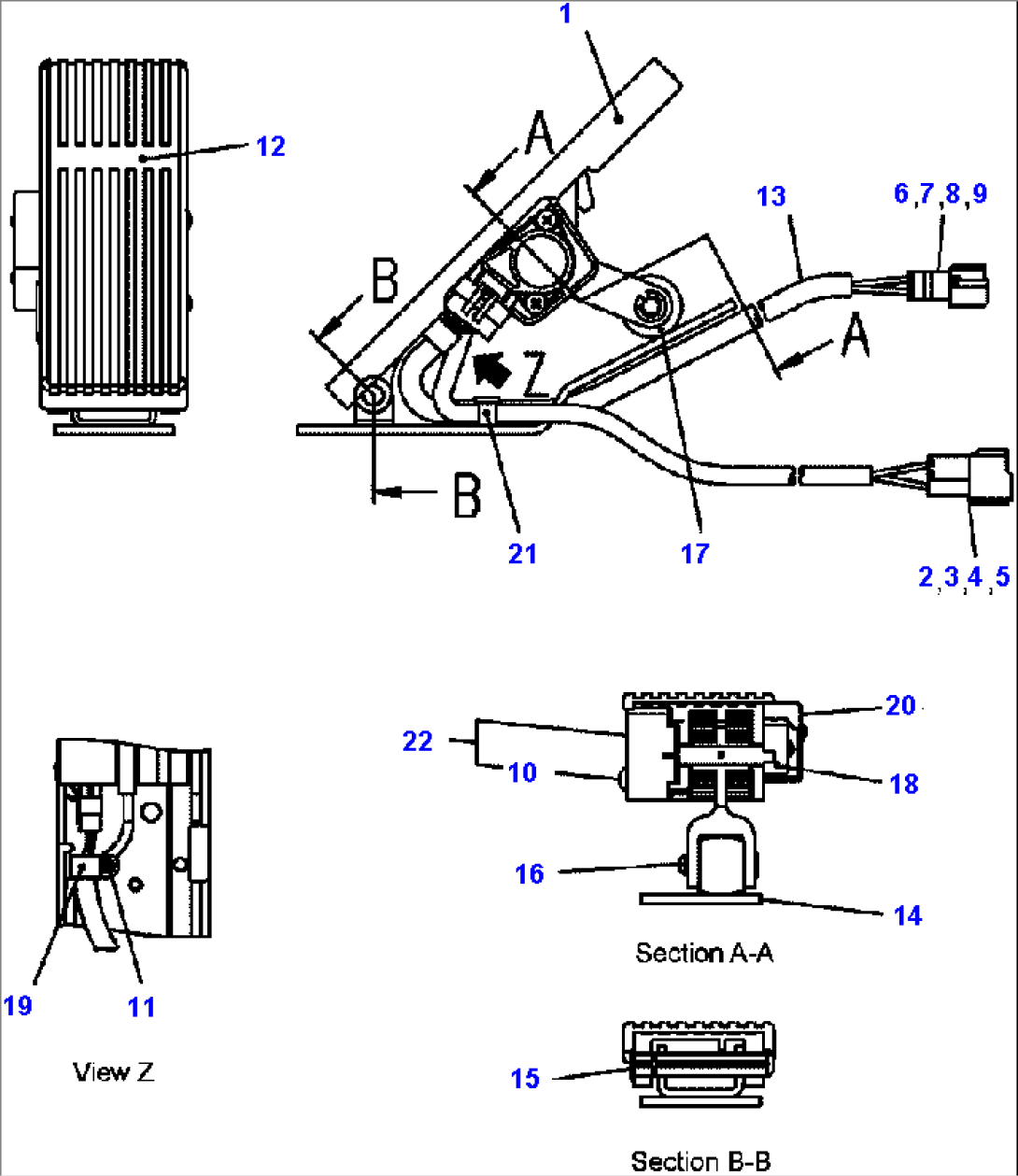

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-44-61310 | PEDAL | A10001-- | ||
| 1 | (NSS) | PEDAL | A10001-- | |
| 2 | 08055-00040 | TERMINAL | A10001-- | |
| 3 | 08055-00060 | GROMMET | A10001-- | |
| 4 | 08055-00311 | CONNECTOR | A10001-- | |
| 5 | 08055-00330 | HOLDER | A10001-- | |
| 6 | 08055-10040 | CONNECTOR | A10001-- | |
| 7 | 08055-10060 | CONNECTOR | A10001-- | |
| 8 | 08055-10612 | BODY | A10001-- | |
| 9 | 08055-10630 | HOLDER | A10001-- | |
| 10 | 569-44-61410 | SCREW | A10001-- | |
| 11 | 569-44-61420 | SCREW | A10001-- | |
| 12 | 569-44-61430 | COVER, TREADLE | A10001-- | |
| 13 | 569-44-61440 | WIRING HARNESS | A10001-- | |
| 14 | 569-44-61450 | PLATE | A10001-- | |
| 15 | 569-44-61460 | PIN, TREADLE | A10001-- | |
| 16 | 569-44-61470 | PIN, ROLLER | A10001-- | |
| 17 | 569-44-61480 | ROLLER | A10001-- | |
| 18 | 569-44-61490 | SENSOR | A10001-- | |
| 19 | 569-44-61510 | CLAMP | A10001-- | |
| 20 | 569-44-61520 | SENSOR, COVER | A10001-- | |
| 21 | 569-44-61530 | CLAMP | A10001-- | |
| 22 | 569-44-61540 | SENSOR KIT | A10001-- |
