| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7831-46-2005 | MONITOR | A10001-- | |
| 2 | 7831-46-1100 | COVER, FRONT | A10001-- | |
| 3 | 7831-46-1200 | PLATE, SHADOW | A10001-- | |
| 4 | 7824-84-2820 | CAP | A10001-- | |
| 5 | 7861-51-1630 | GROMMET | A10001-- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 1l s/n a10001 up
- Operator's compartment and control system
- Fig. k3220 02a1 cab instrument panel main monitor inner parts
Поиск по каталогу

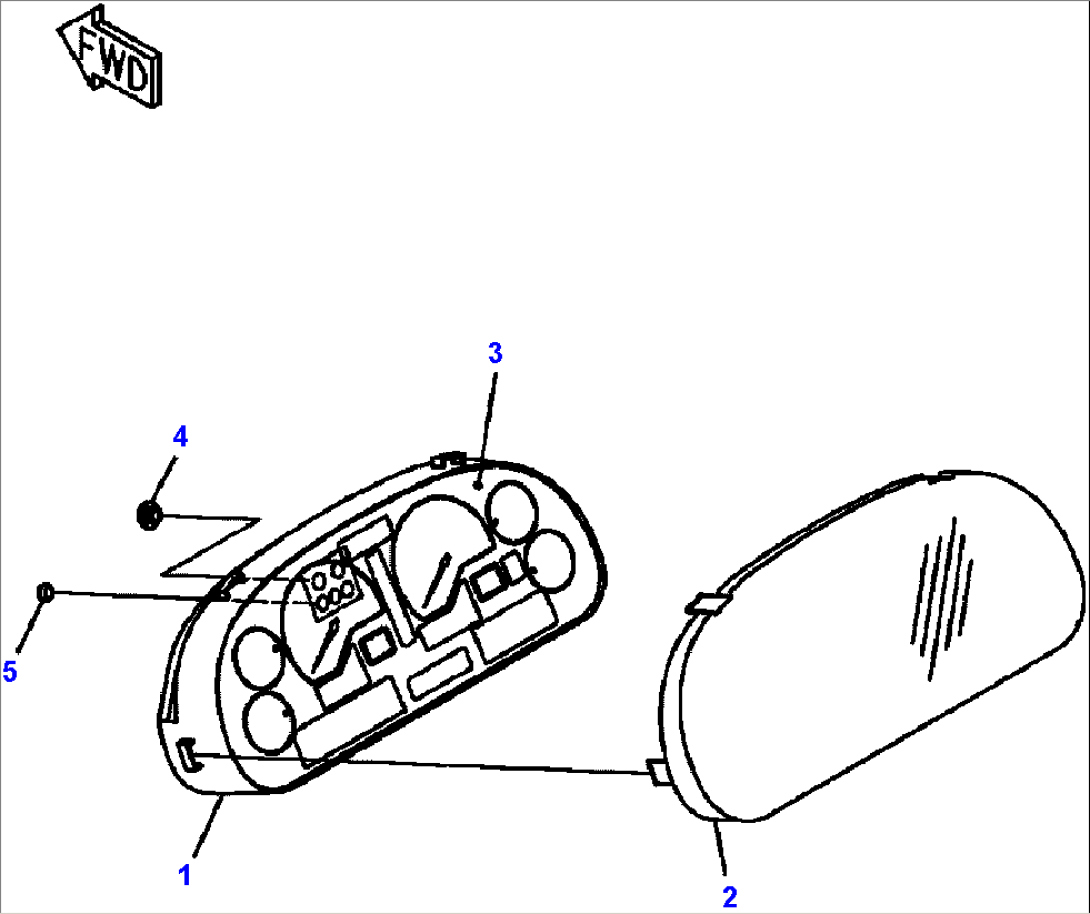

FIG. K3220-02A1 CAB INSTRUMENT PANEL - MAIN MONITOR INNER PARTS
