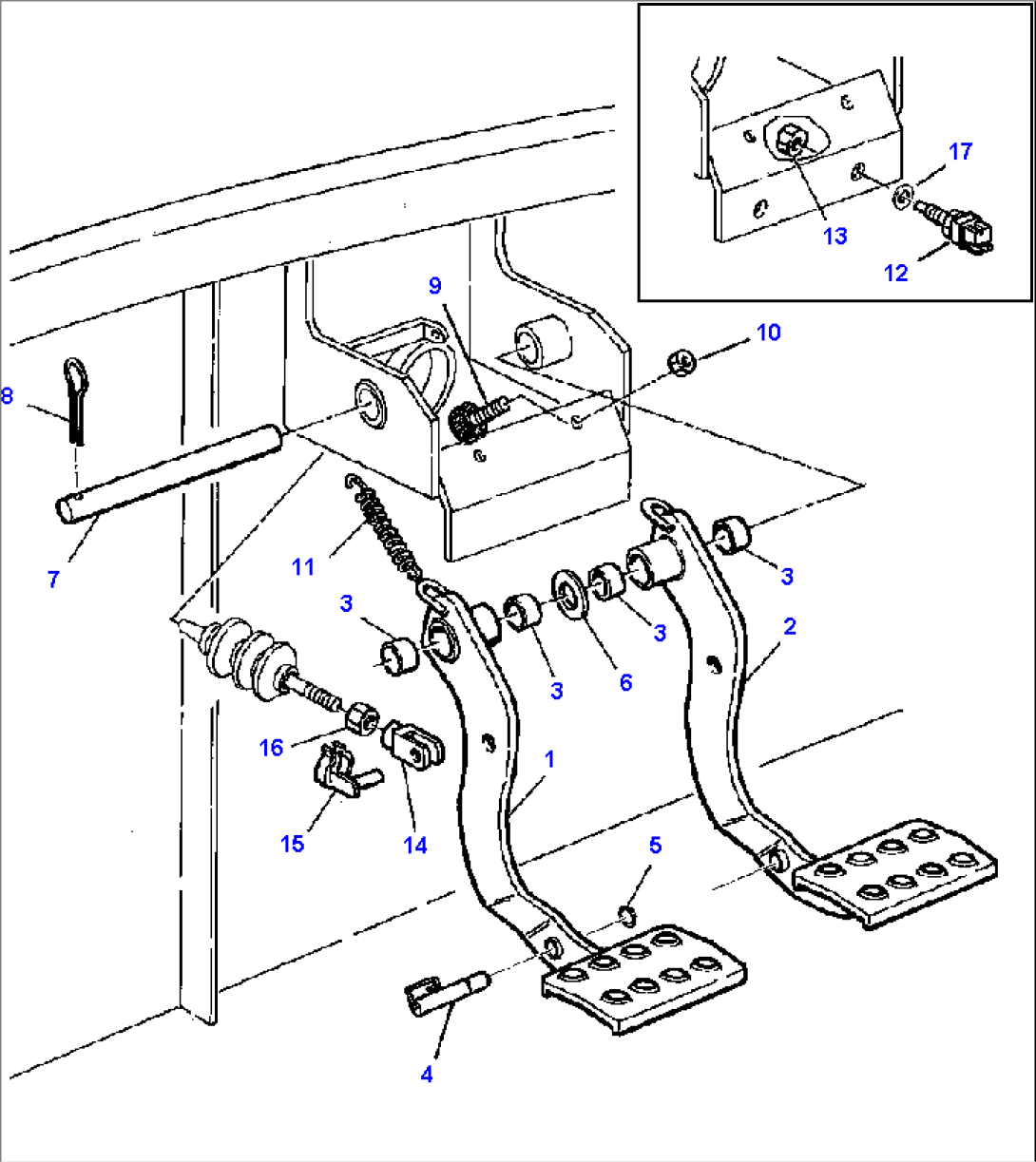

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312608072 | PEDAL, LEFT BRAKE | A60029-- | |
| 2 | 312608073 | PEDAL, RIGHT BRAKE | A60029-- | |
| 3 | 805630028 | BUSHING | A60029-- | |
| 4 | 312608074 | PIN, BRAKE PEDALS | A60029-- | |
| 5 | 802250014 | RING, SNAP | A60029-- | |
| 6 | 802070020 | WASHER | A60029-- | |
| 7 | 312617602 | PIN, PEDALS | A60029-- | |
| 8 | 802610090 | PIN, COTTER | A60029-- | |
| 9 | 808001064 | STOP, PEDAL | A60029-- | |
| 10 | 801703408 | NUT | A60029-- | |
| 11 | 390101016 | SPRING | A60029-- | |
| 12 | 885080075 | SWITCH | A60029-A60048- | |
| 13 | 801070053 | NUT | A60029-A60048- | |
| 14 | 802720024 | FORK | A60029-- | |
| 15 | 802725024 | PIN, BRAKE PEDAL | A60029-- | |
| 16 | 801703411 | NUT | A60029-- | |
| 17 | 312707617 | WASHER | A60029-A60048- |
