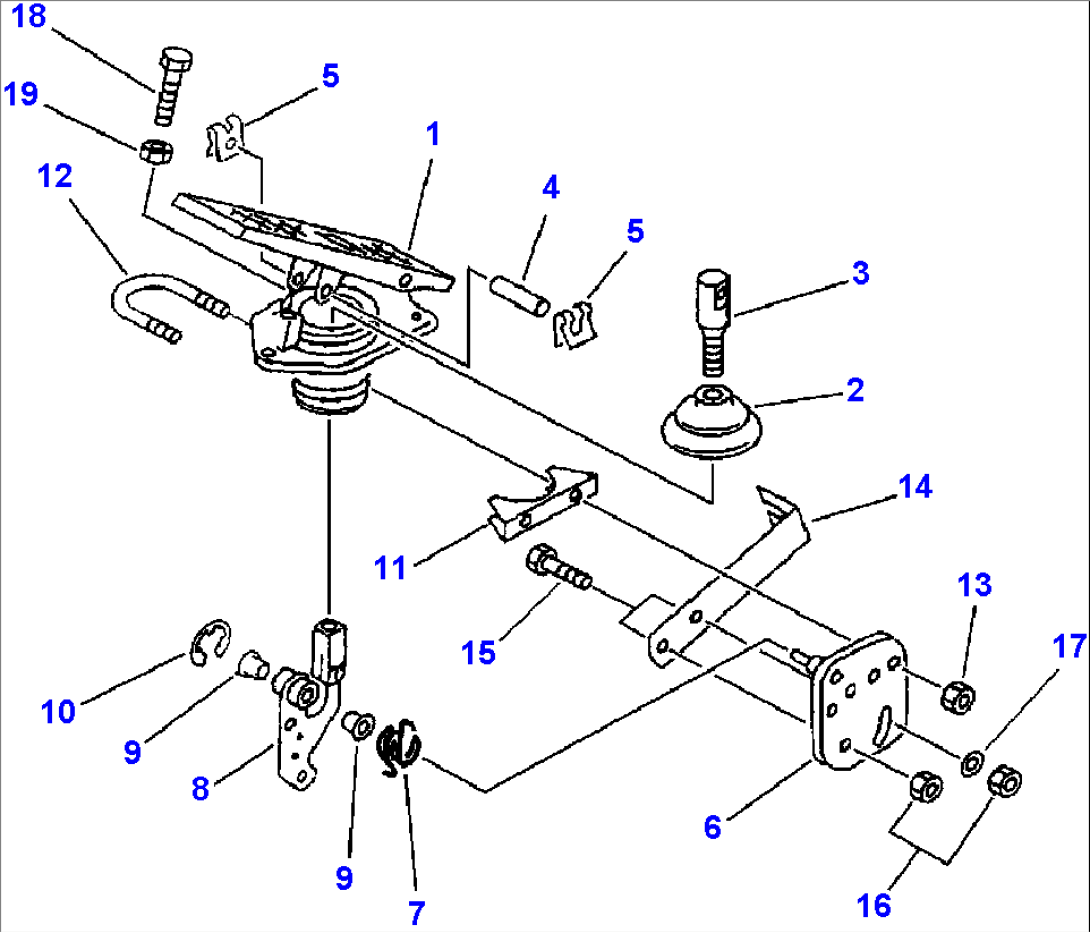

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-43-21110 | PEDAL ASSEMBLY | A31001-A31188- | ||
| OR | ||||
| 417-43-A1200 | PEDAL ASSEMBLY | A31189-UP- | ||
| 1 | 417-43-11210 | PEDAL AND BODY ASSEMBLY | A31001-UP- | |
| 2 | 417-43-11360 | BOOT | A31001-UP- | |
| 3 | 417-43-11310 | ROD | A31001-UP- | |
| 4 | 417-43-11320 | PIN | A31001-UP- | |
| 5 | 417-43-11330 | CLIP | A31001-UP- | |
| 6 | 417-43-11220 | PLATE | A31001-UP- | |
| 7 | 417-43-11240 | SPRING | A31001-UP- | |
| 8 | 417-43-11230 | LEVER | A31001-UP- | |
| 9 | 417-43-11250 | BEARING | A31001-UP- | |
| 10 | 417-43-11260 | CLIP | A31001-UP- | |
| 11 | 417-43-11290 | SUPPORT | A31001-UP- | |
| 12 | 417-43-11270 | U-BOLT | A31001-UP- | |
| 13 | 417-43-11280 | NUT | A31001-UP- | |
| 14 | 417-43-11340 | SUPPORT | A31001-UP- | |
| 15 | 01010-80616 | BOLT | A31001-UP- | |
| 16 | 417-43-11350 | NUT | A31001-UP- | |
| 17 | 01643-30623 | WASHER | A31001-UP- | |
| 18 | 01016-50870 | BOLT | A31001-UP- | |
| 19 | 01580-10806 | NUT | A31001-UP- | |
| F1 - SEE PARTS AND SERVICE NEWS AA00185 FOR MORE INFORMATION. | ||||
